Mitsubishi
>>
2006
>>
Outlander LS, AWD, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Tune-Up
>>
Ignition System
>>
Camshaft Position Sensor
>>
Removal And Installation
Removal And Installation

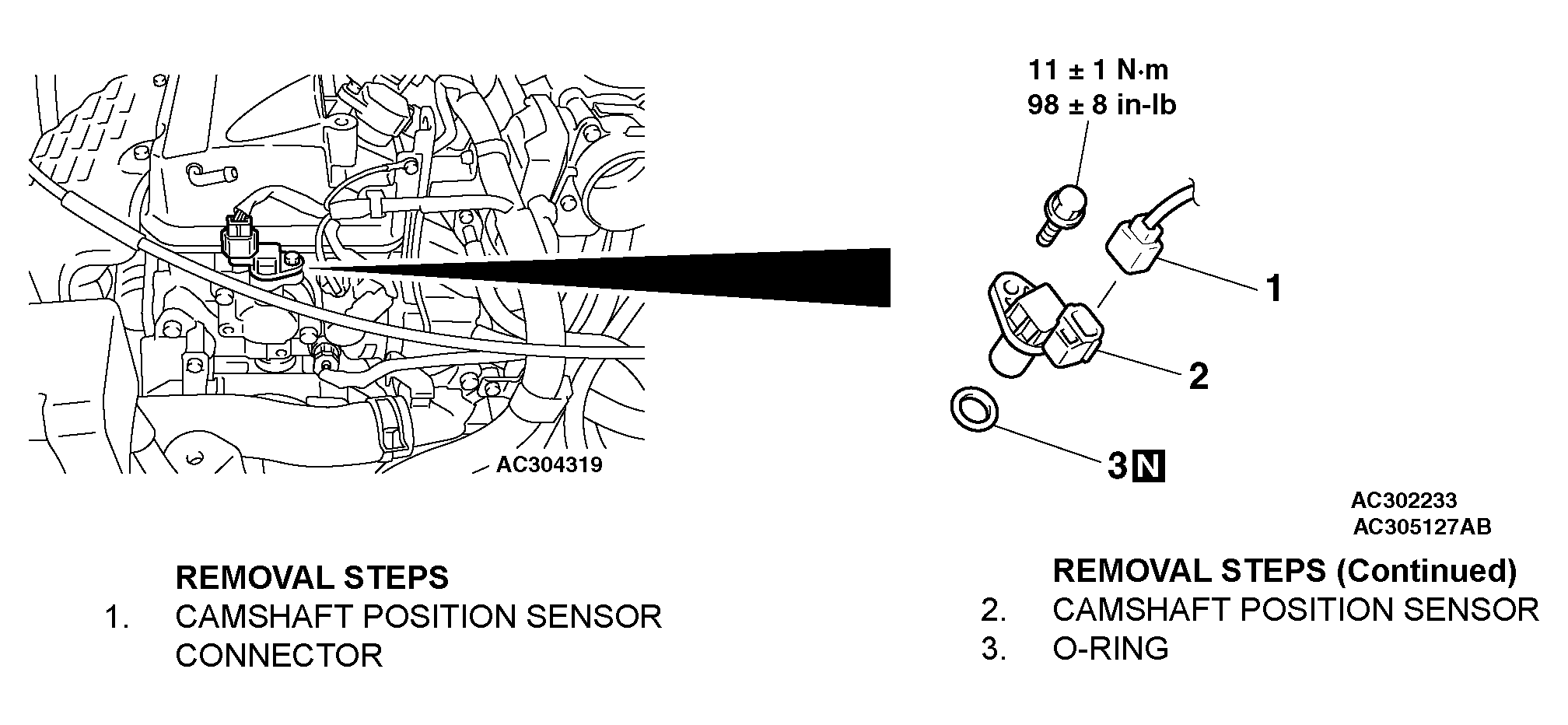

Fig 1: Removal And Installation Of Camshaft Position Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
