Removal And Installation: Notes

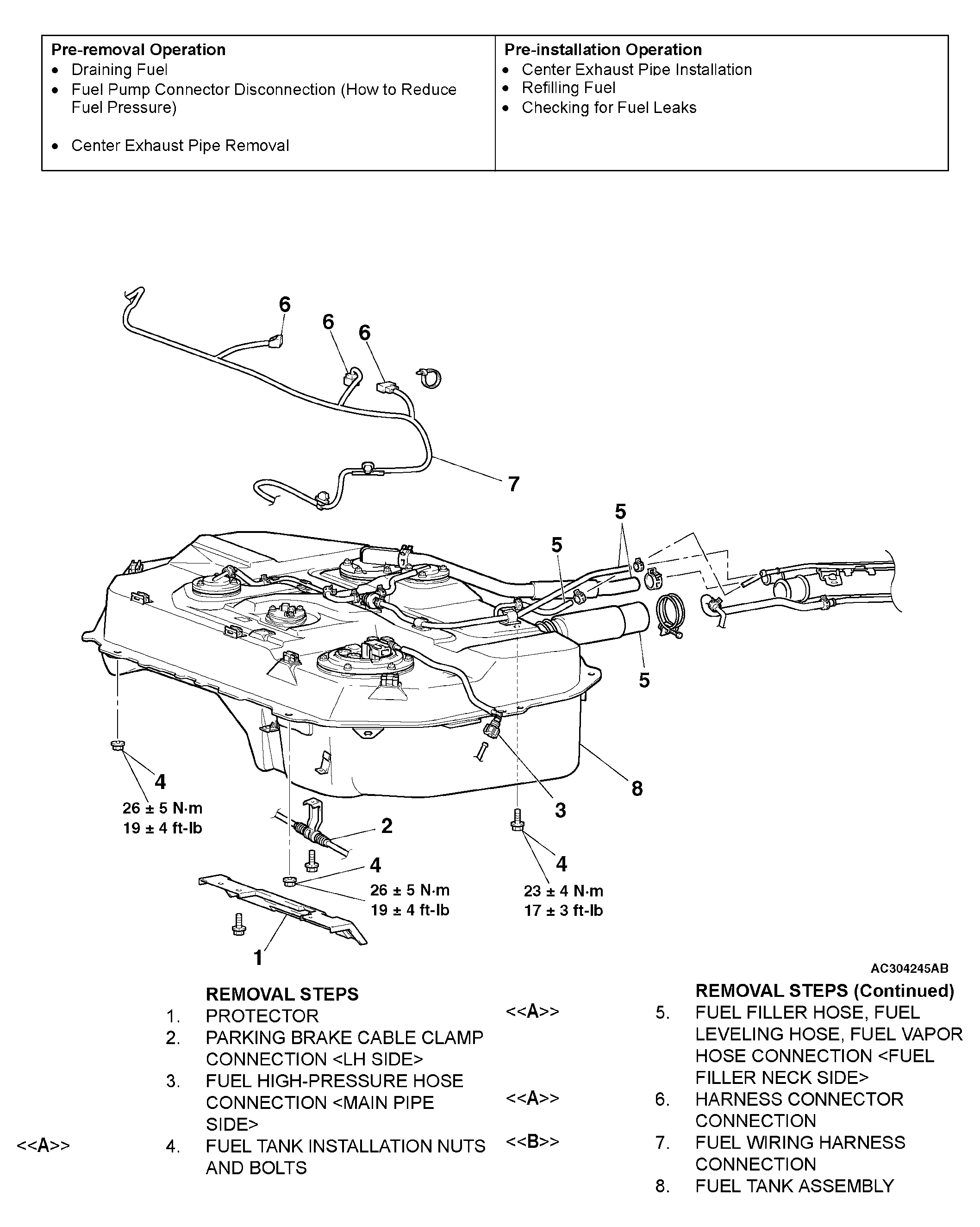

Fig 1: Removal And Installation Of Fuel Tank (1 Of 3)
G04301939Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

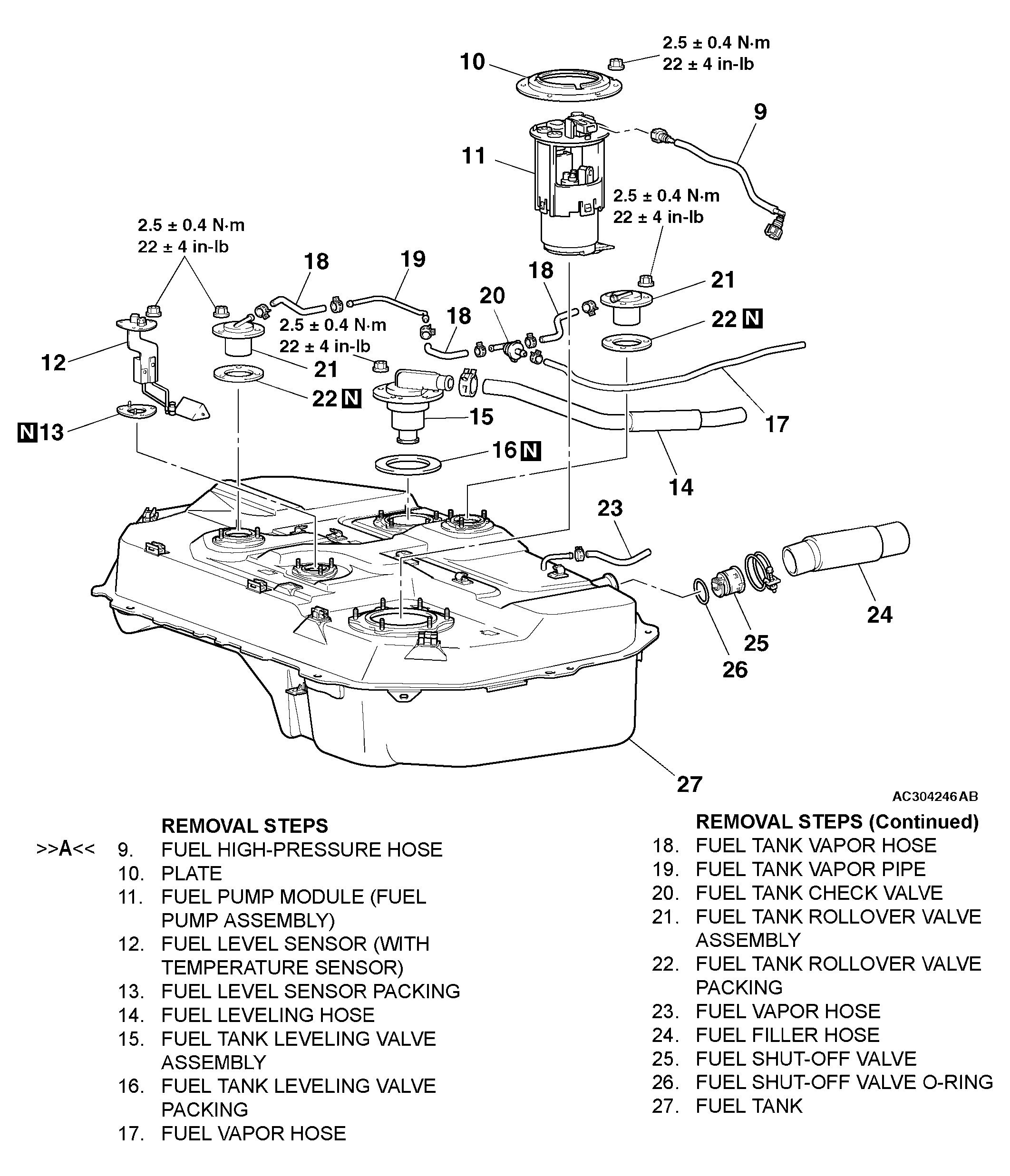

Fig 2: Removal And Installation Of Fuel Tank (2 Of 3)
G04301940Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

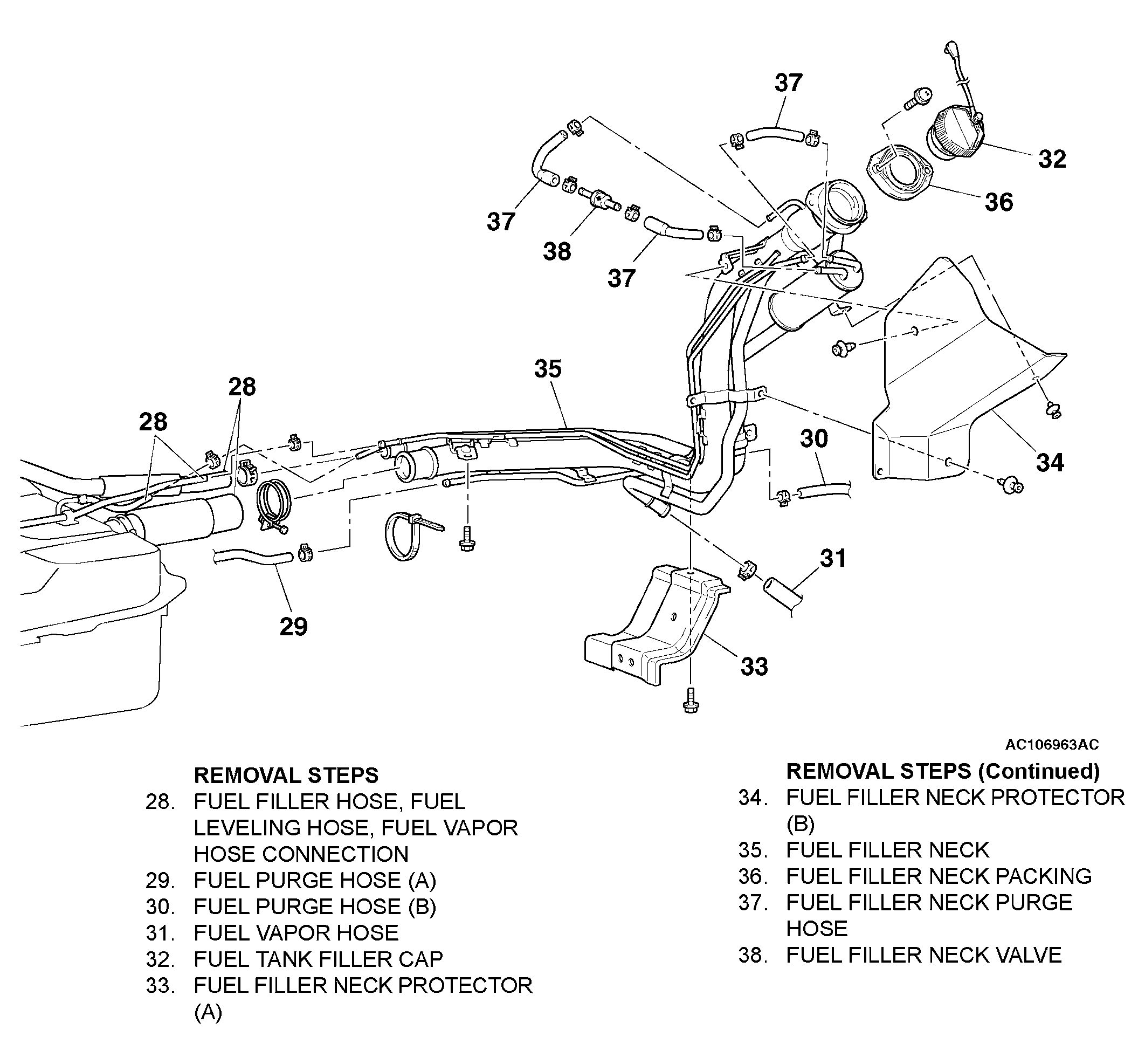

Fig 3: Removal And Installation Of Fuel Tank (3 Of 3)
G04301941Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
