Engine Oil Replacement

  1. Start the engine and allow it to warm up until the temperature of the coolant reaches 80° C (176° F) to 90° C (194° F).
    WARNING: Use care as oil could be hot.
  2. Remove the engine oil filler cap.
  3. Remove the drain plug to drain oil.
  4. Install a new drain plug gasket so that it faces in the direction shown in the illustration, and then tighten the drain plug to the specified torque.

    Tightening torque: 39 +/- 5 N. m (29 +/- 3 ft-lb)

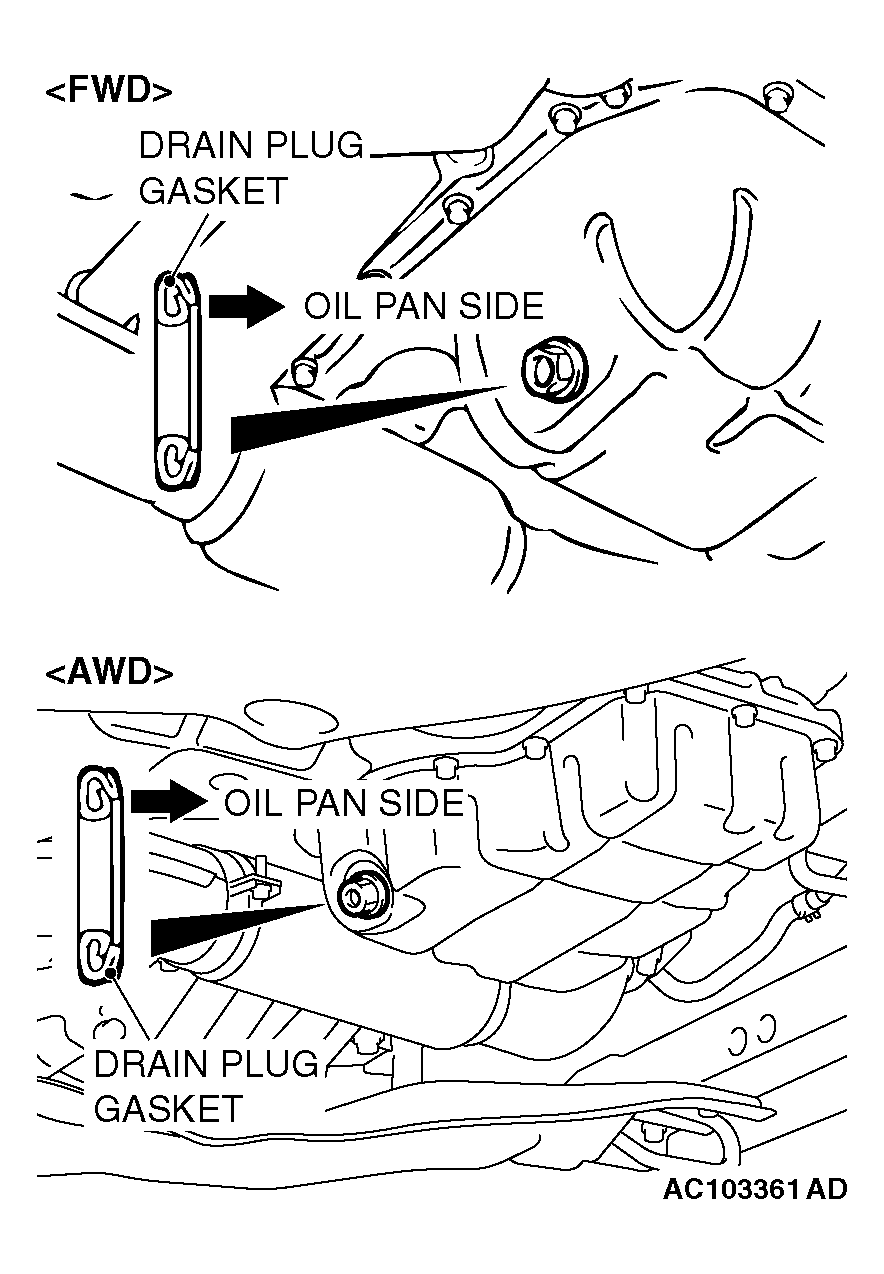

    Fig 1: Installing Drain Plug Gasket
    G04300221Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Refill the specified quantity of oil.

    Specified Engine Oil: Engine oils displaying ILSAC certification symbol ("Starburst" symbol) or conforming the API classification SL, SL/CF

    Total quantity: 4.3 dm 3  (4.5 quarts)

    NOTE: SAE 5W-20, SAE 5W-30 and SAE 10W-30 engine oil can be used in outdoor temperatures ranging from 48 to 38 °C (0 to 100 °F). However, for optimum fuel economy and cold starting, select the low SAE viscosity grade oil for the expected temperature range. SAE 5W-20 or SAE 5W-30 engine oil is recommended.
  6. Install the engine oil filler cap.
  7. Check oil level.
