Defogger Relay Check

TESTER CONNECTION SPECIFIED CONDITION

BATTERY VOLTAGE TESTER CONNECTION SPECIFIED CONDITION
Not supplied 4-5 Open circuit
  • Connect terminal 1 to the positive battery terminal
  • Connect terminal 3 to the negative battery terminal
 4-5 Less than 2 ohms

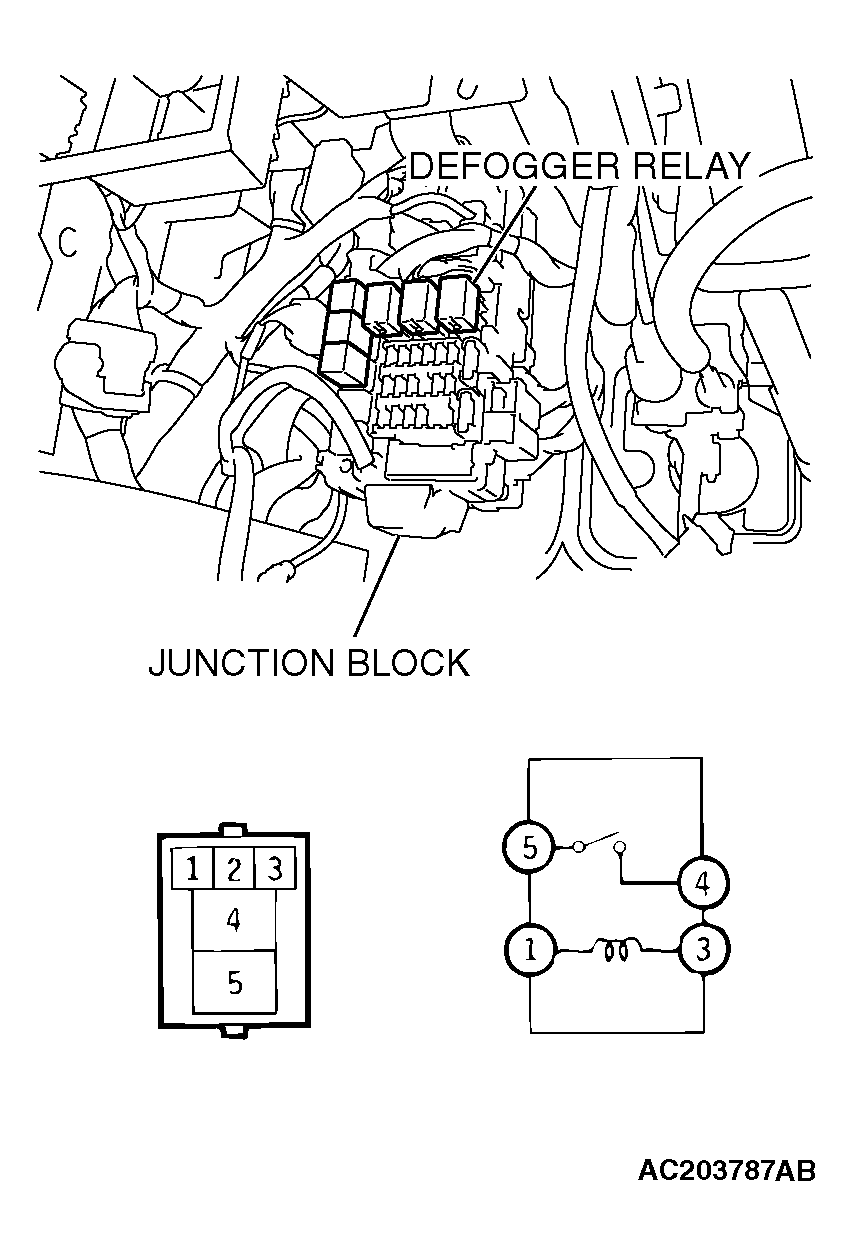

Fig 1: Checking Defogger Relay
G04305395Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
