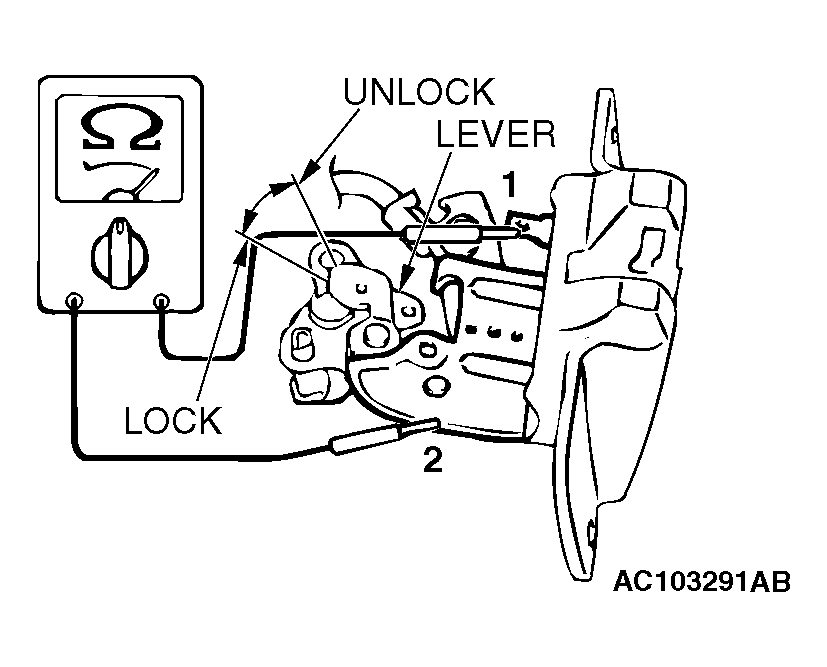

Liftgate Latch Check
TESTER CONNECTION AND SPECIFIED CONDITION
| LEVER POSITION |
TESTER CONNECTION |
SPECIFIED CONDITION |
| At the "LOCK" position |
1 -2 (Ground) |
Open circuit |
| At the "UNLOCK" position |
1 -2 (Ground) |
Less than 2 ohms |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
