Home >> Mitsubishi >> 2006 >> Montero >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> UNDERDRIVE Clutch >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

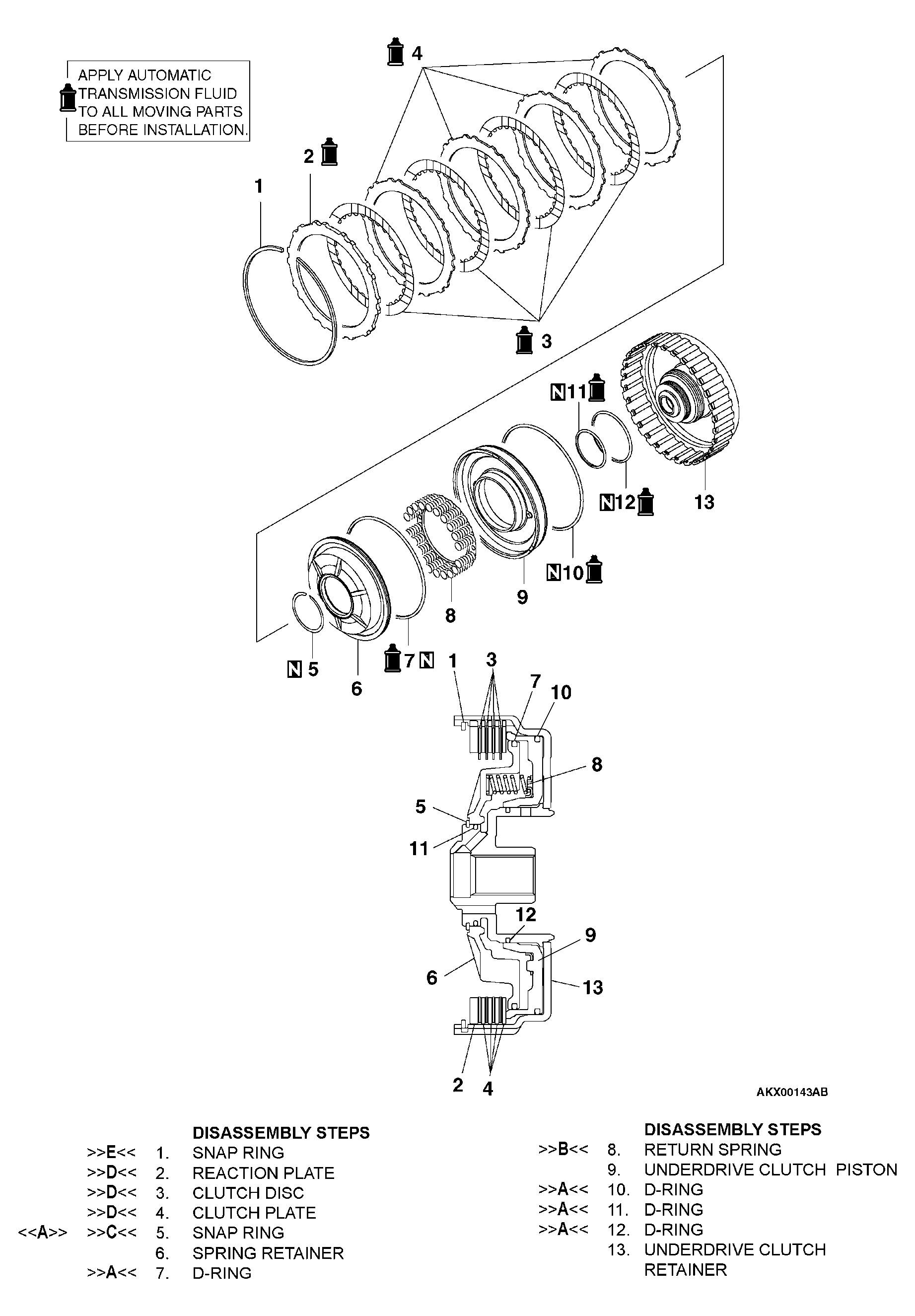

Fig 1: Disassembling/Assembling Underdrive Clutch
G04266459Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
