Disassembly And Assembly: Disassembly

CAUTION:

Because the automatic transmission is manufactured from high-precision parts, sufficient care must be taken not to scratch or damage these parts during disassembly and reassembly.
During the work, always use bare hands or vinyl gloves. Do not use cotton gloves. Use nylon cloth or paper towels when necessary. Do not use shop towels.
Parts which have been disassembled should be cleaned. Metal parts can be cleaned with normal detergent, but they should be dried completely using compressed air.
Clutch discs, plastic thrust race and rubber parts should be cleaned with ATF automatic transmission fluid so that they do not become dirty.
If the transmission body has been damaged, disassemble and clean the cooler system also.

Remove the input shaft speed sensor.

Fig 1: Removing Input Shaft Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the output shaft speed sensor.

Fig 2: Removing Output Shaft Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

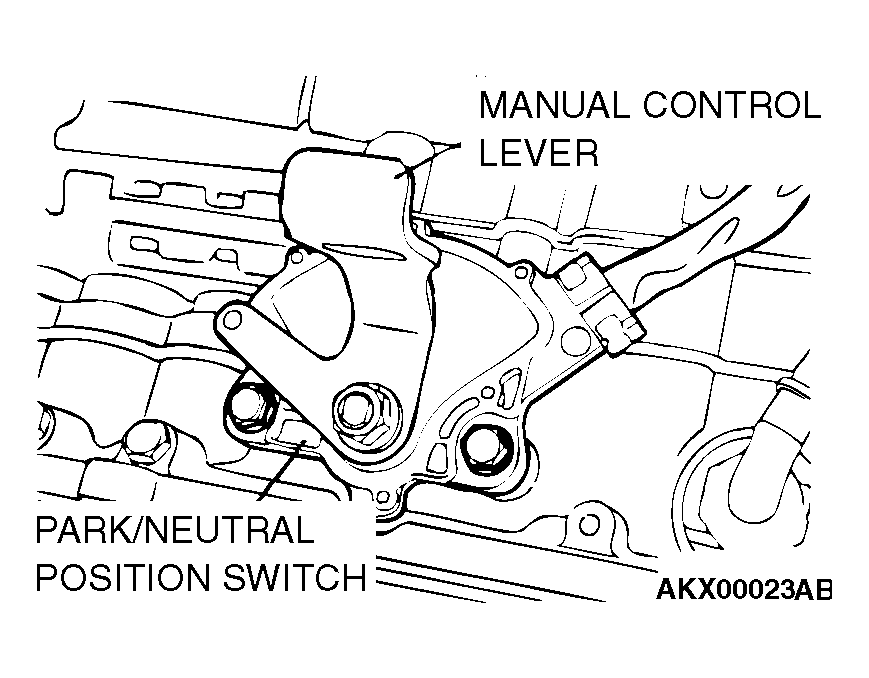

Remove the manual control lever, and then remove the park/neutral position switch.

Fig 3: Removing Manual Control Lever
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

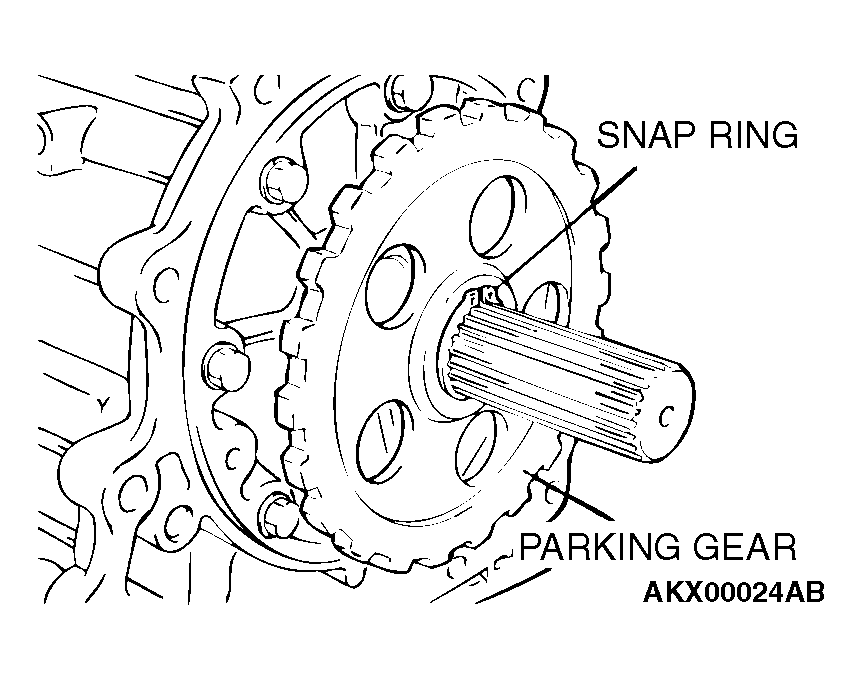

Remove the snap ring, and remove the parking gear using a puller [corresponding load approximately 9,800 N (2,200 pounds)].
NOTE: Some parking gear may be removed without using a puller.

Fig 4: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Carefully hammer the special tool so that the oil pan mounting surface is not damaged.

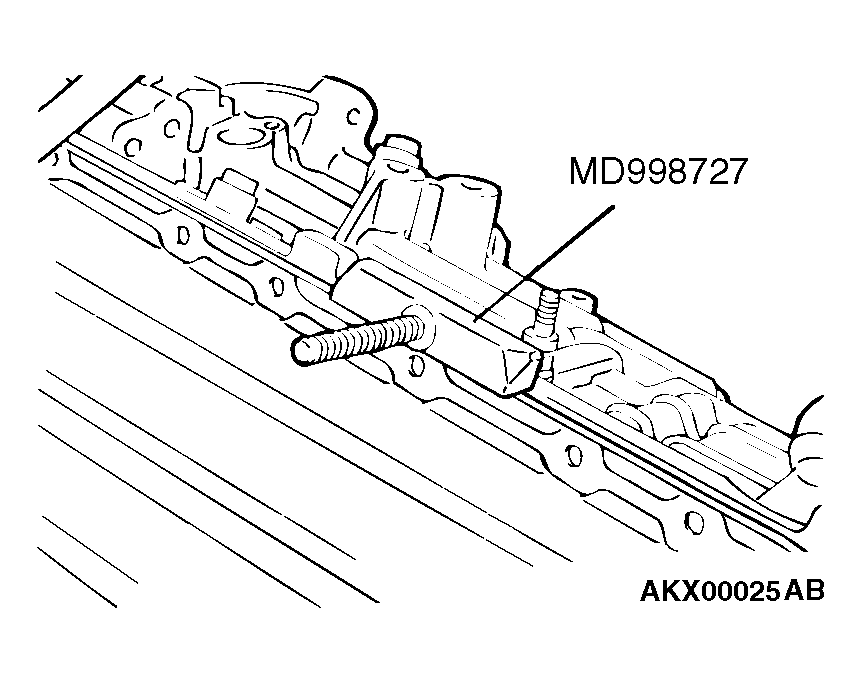

Remove the twenty oil pan mounting bolts and then using the special tool MD998727 to remove the oil pan.

Fig 5: Using Special Tool To Remove Oil Pan
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

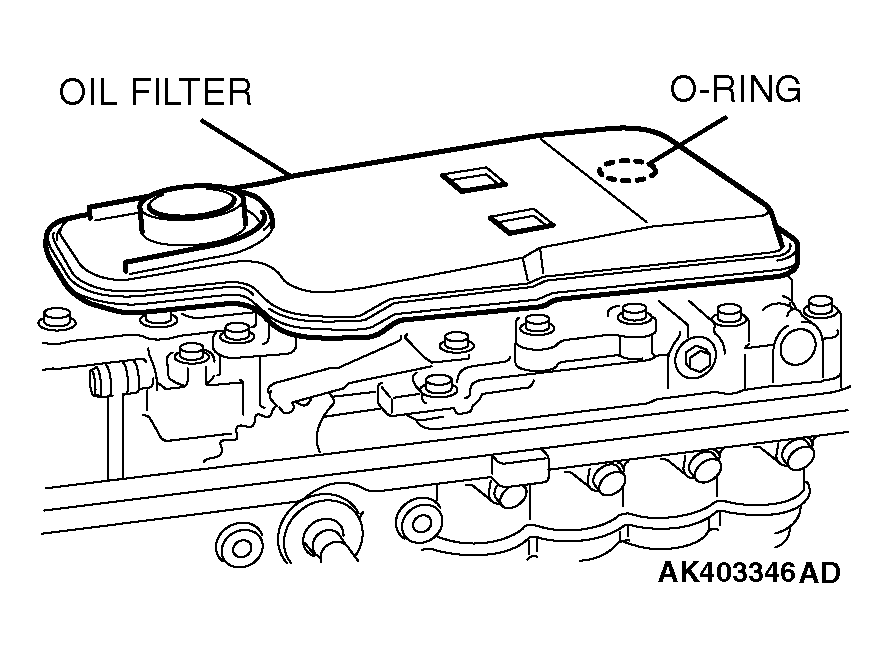

Remove the oil filter and O-ring.

Fig 6: Removing Oil Filter And O-Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the detent spring.

Fig 7: Removing Detent Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

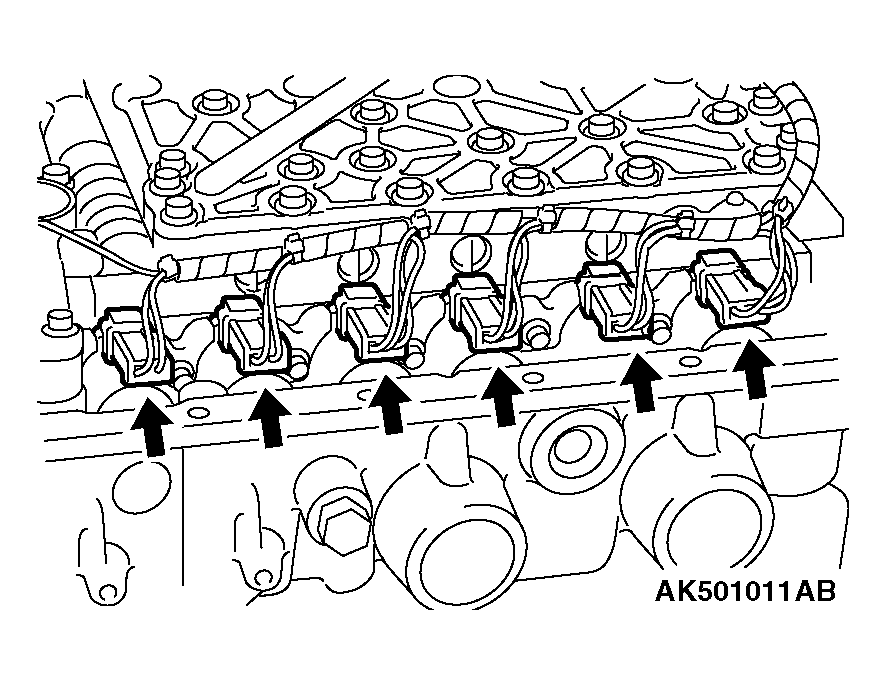

Disconnect the valve body harness connectors.

Fig 8: Disconnecting Valve Body Harness Connectors
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the twenty valve body mounting bolts and then remove the valve body, O-ring and oil temperature sensor.
NOTE: The twenty valve body mounting bolts are plated bolts.

NOTE: The O-ring is mounted on the transmission case side as shown in the illustration. However there may be cases when it will come off with the valve body.

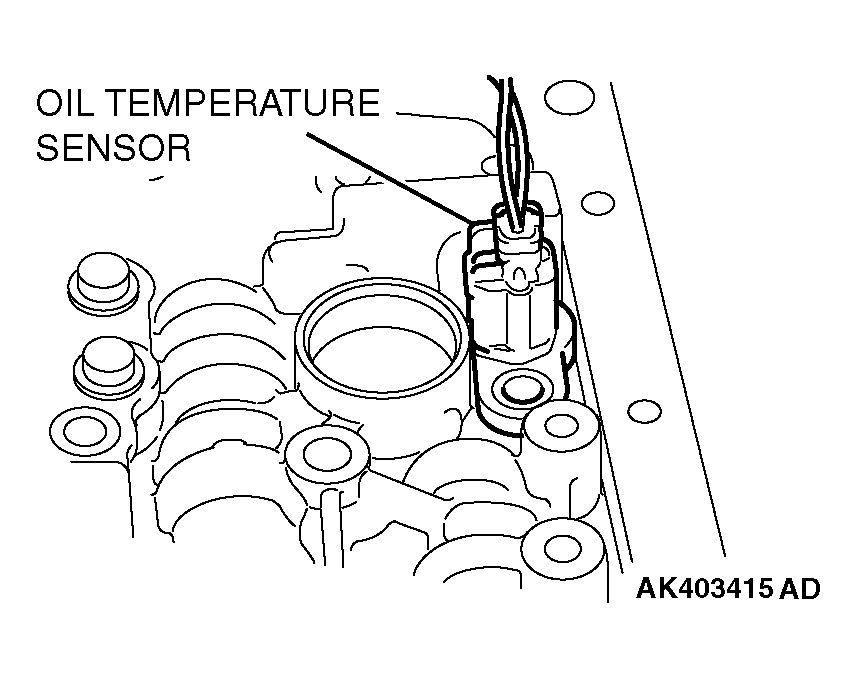

Fig 9: Locating Oil Temperature Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

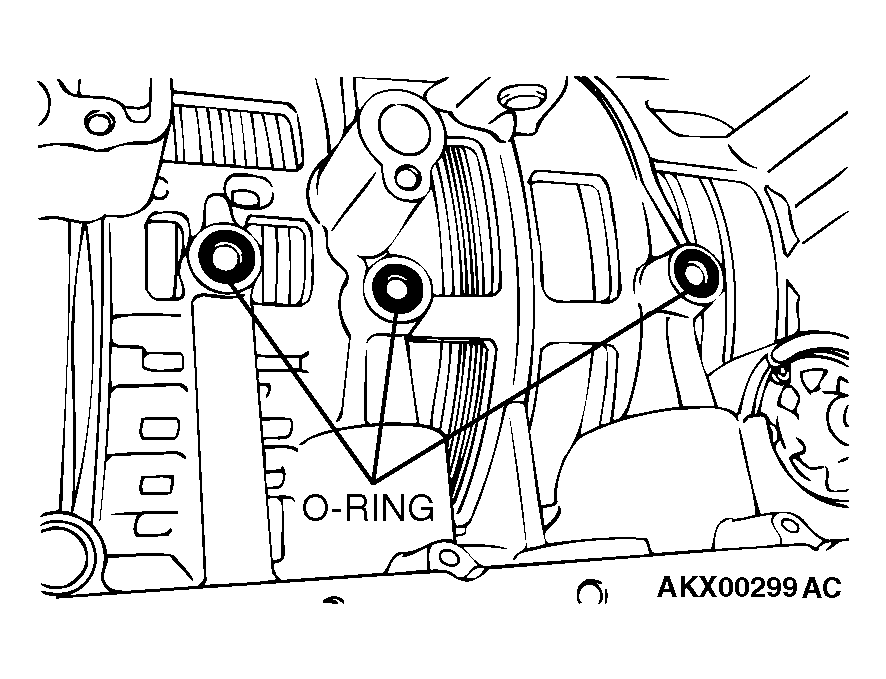

Fig 10: Identifying O-Rings
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the snap ring and disconnect the solenoid valve harness.

Fig 11: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

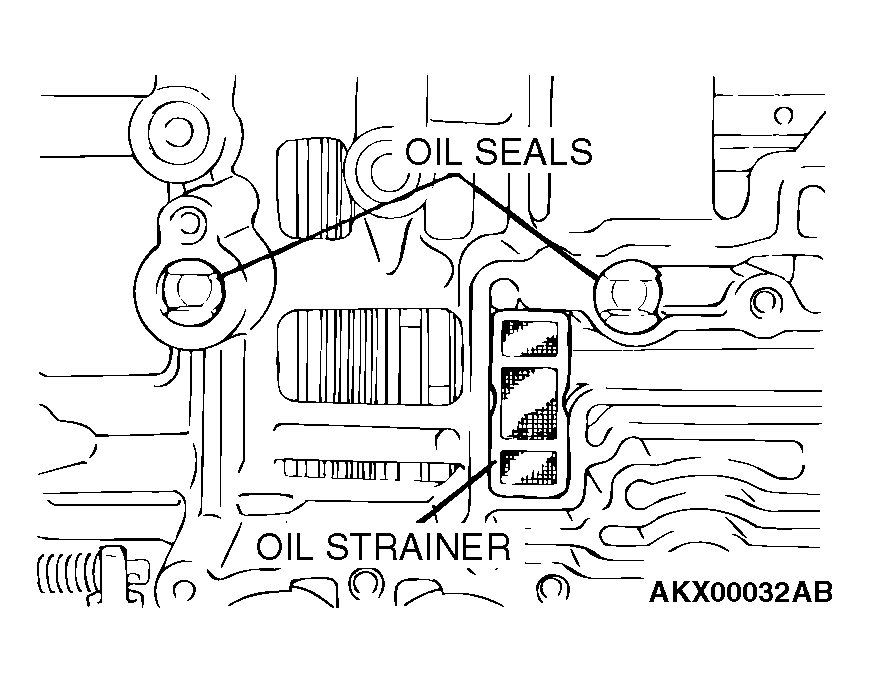

Remove the oil strainer and two oil seals.

Fig 12: Removing Oil Strainer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

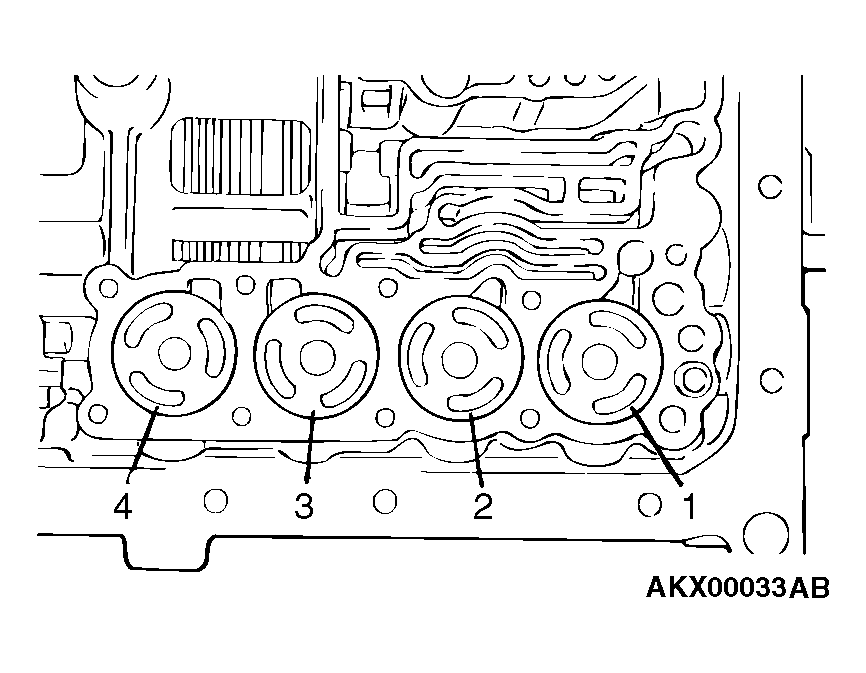

Remover each accumulator piston, seal ring, spring, snap ring, accumulator cover, O-ring.

ACCUMULATOR PISTON REFERENCE CHART

NO.	NAME
1	FOR OVERDRIVE CLUTCH
2	FOR SECOND BRAKE
3	FOR LOW/REVERSE BRAKE
4	FOR UNDERDRIVE CLUTCH
5	FOR REDUCTION BRAKE
6	FOR DIRECT CLUTCH

NOTE: To make assembly easier, attach an identification tag on the removed accumulator piston.

Fig 13: Identifying Accumulator Pistons (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

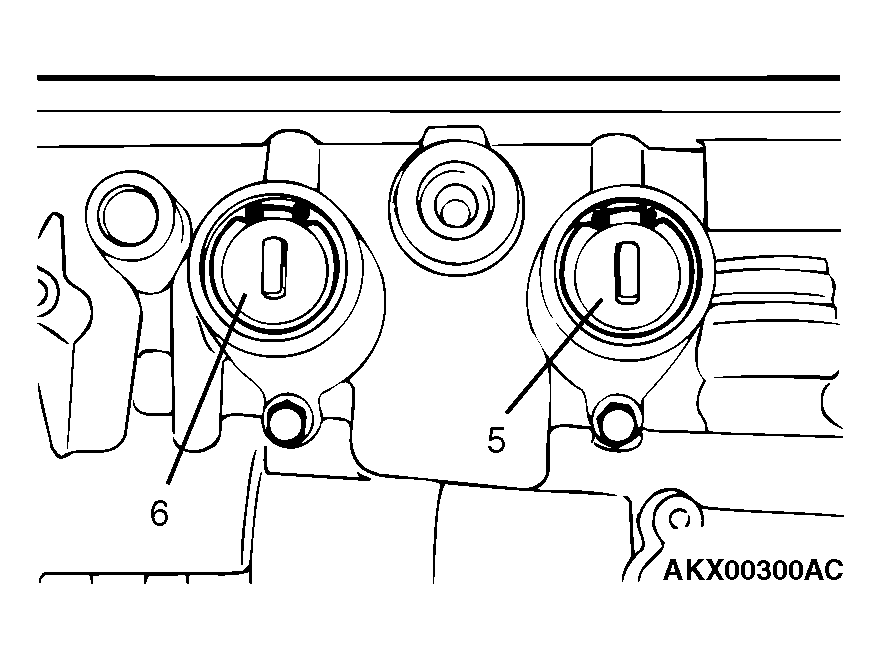

Fig 14: Identifying Accumulator Pistons (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

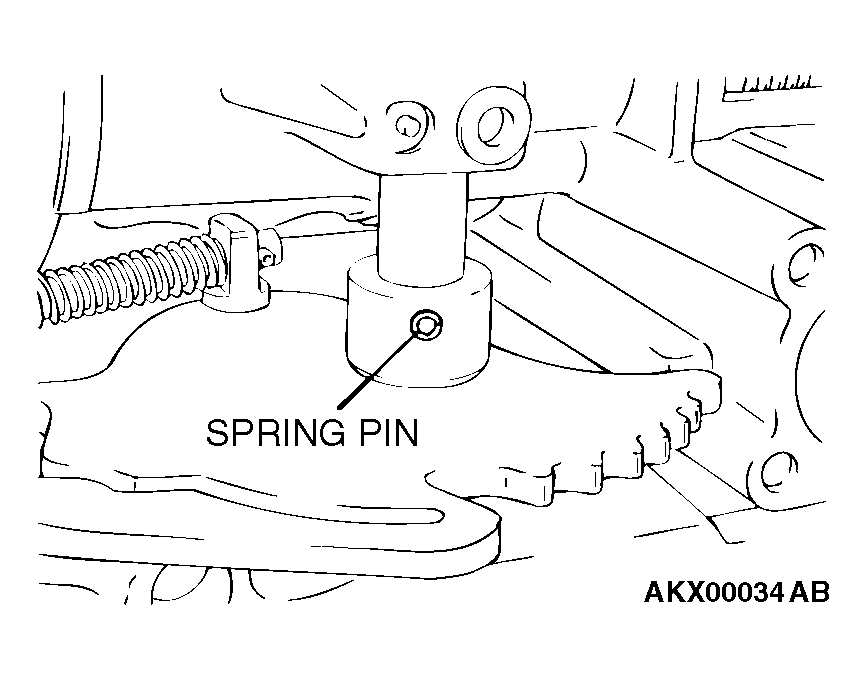

Remove the detent lever spring pin.

Fig 15: Removing Detent Lever Spring Pin
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

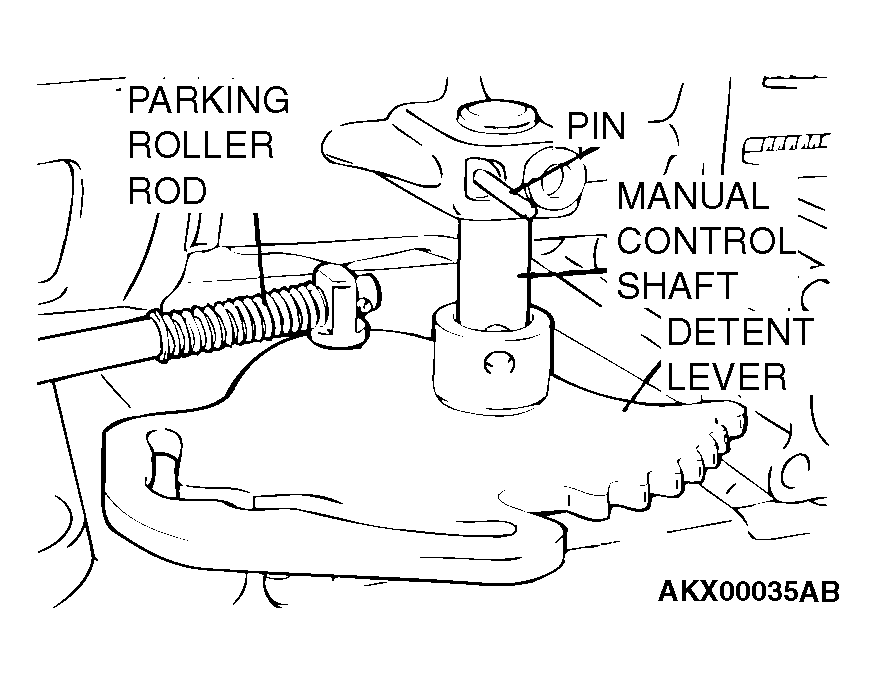

Remove the pin, and then remove the manual control shaft, two O-rings, detent lever and parking roller rod.

Fig 16: Removing Manual Control Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the eight converter housing mounting bolts, and then the converter housing.

Fig 17: Removing Eight Converter Housing Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

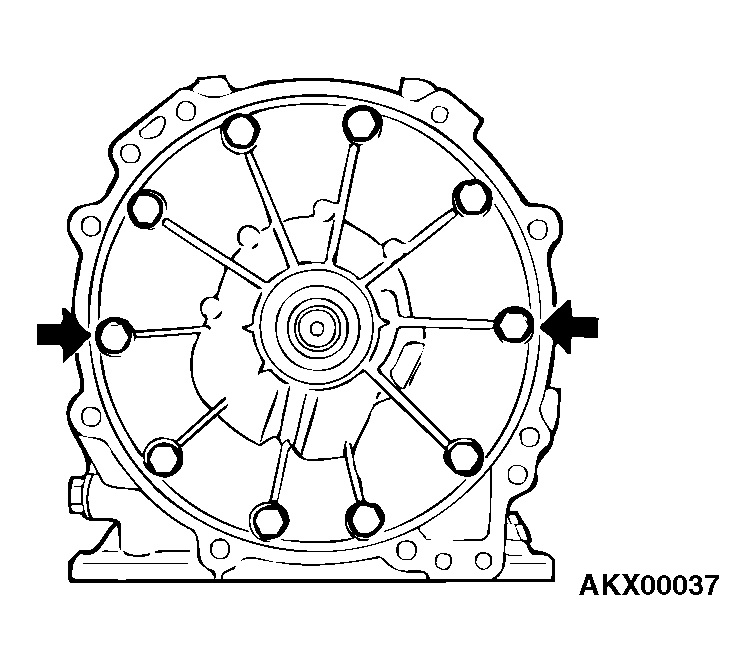

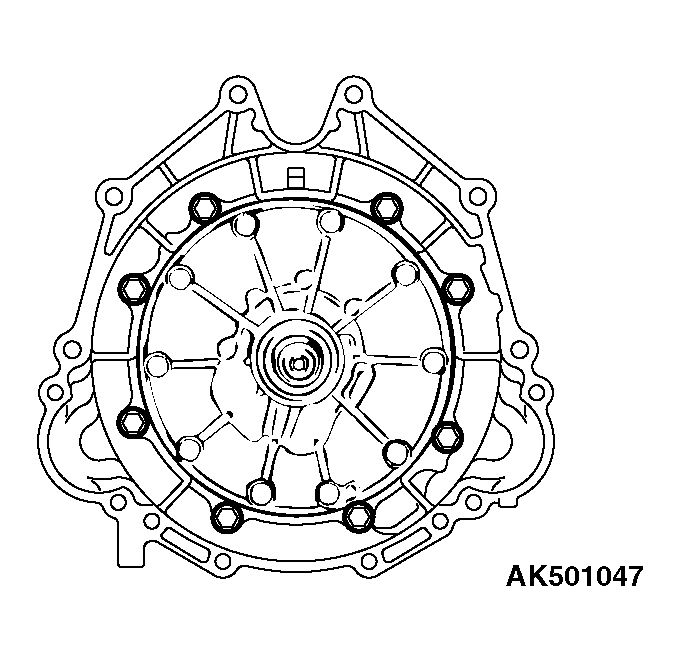

Remove the ten oil pump mounting bolts.

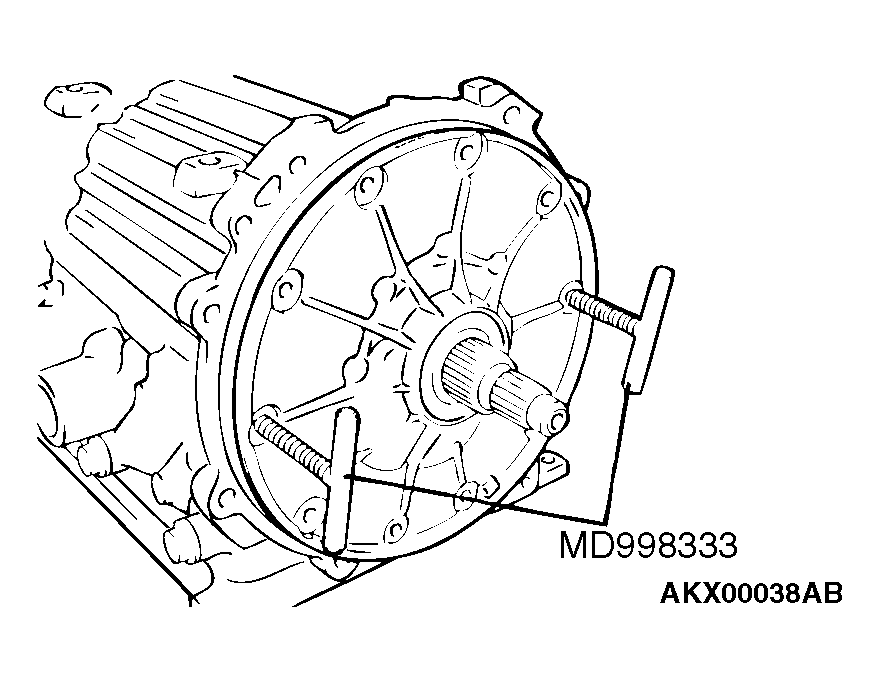

Install special tool MD998333 into the bolt hole shown in the illustration.

Fig 18: Installing Special Tool Into Bolt Holes
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
While screwing in special tool MD998333 evenly, remove the oil pump.
Remove the oil pump gasket.

Fig 19: Removing Oil Pump
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

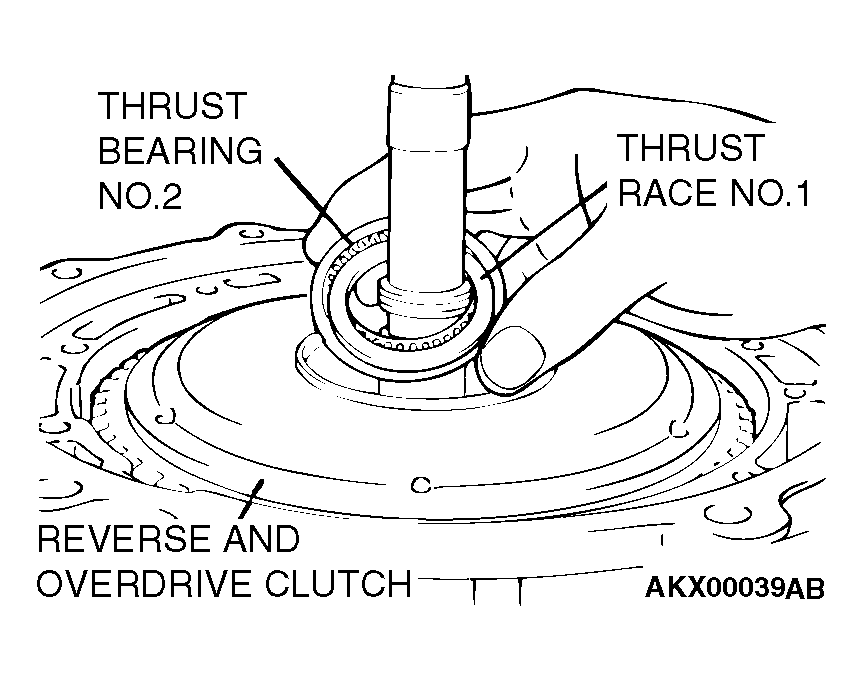

Remove the reverse and overdrive clutch, thrust race number 1 and thrust bearing number 2.
NOTE: The thrust race number 1 may be attached to the oil pump.

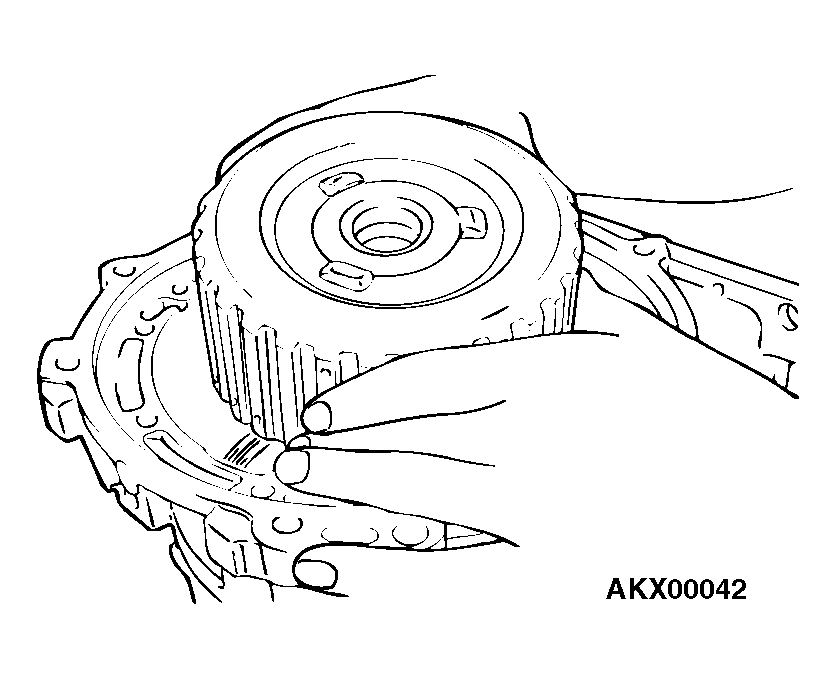

Fig 20: Removing Reverse And Overdrive Clutch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

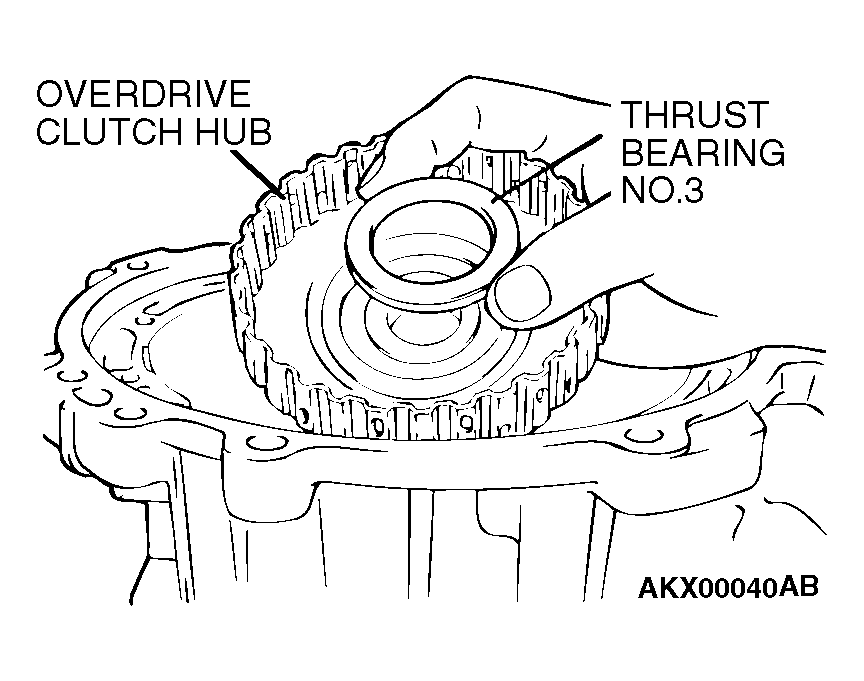

Remove the overdrive clutch hub and thrust bearing number 3.

Fig 21: Removing Overdrive Clutch Hub And Thrust Bearing Number 3
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

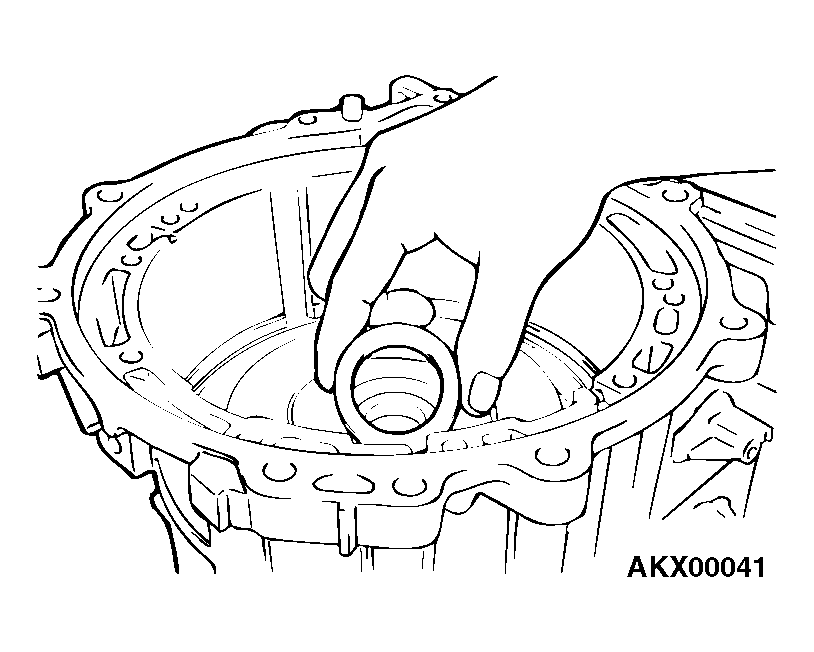

Remove the thrust bearing number 4.
NOTE: The thrust bearing number 4 may be attached to the overdrive clutch hub.

Fig 22: Removing Thrust Bearing Number 4
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the reverse sun gear.

Fig 23: Removing Reverse Sun Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the snap ring.

Fig 24: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the second brake and return spring.

Fig 25: Removing Second Brake And Return Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

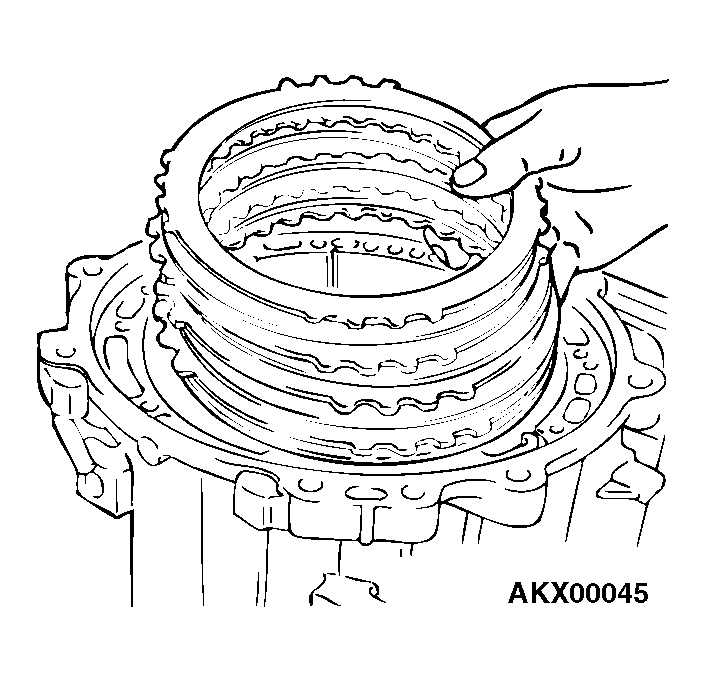

Remove the pressure plate, brake plate and brake disc.

Fig 26: Removing Pressure Plate, Brake Plate And Brake Disc
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the low/reverse annulus gear.

Fig 27: Removing Low/Reverse Annulus Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

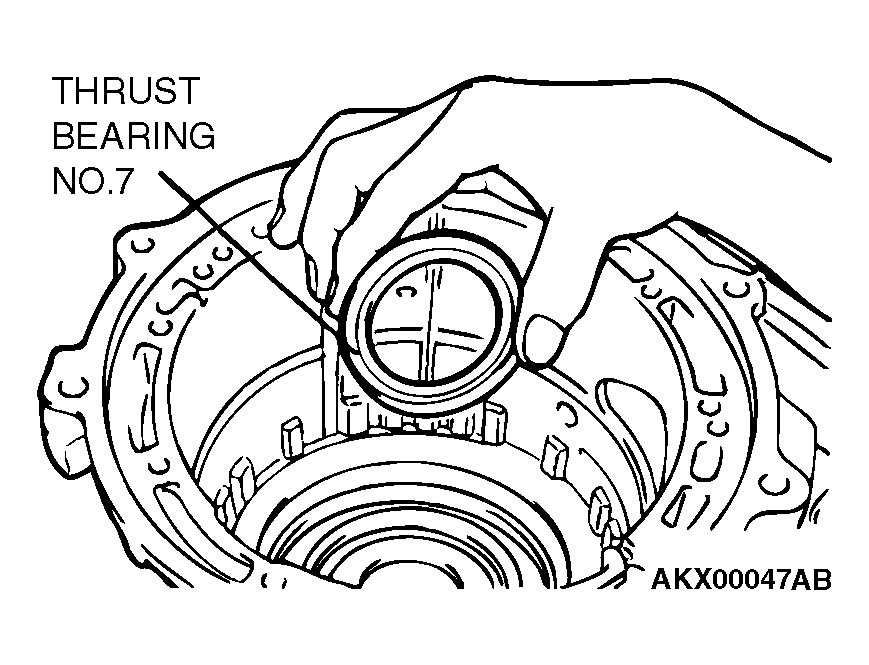

Remove the thrust bearing number 7.
NOTE: The thrust bearing number 7 may be attached to the low/reverse annulus gear.

Fig 28: Removing Thrust Bearing Number 7
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

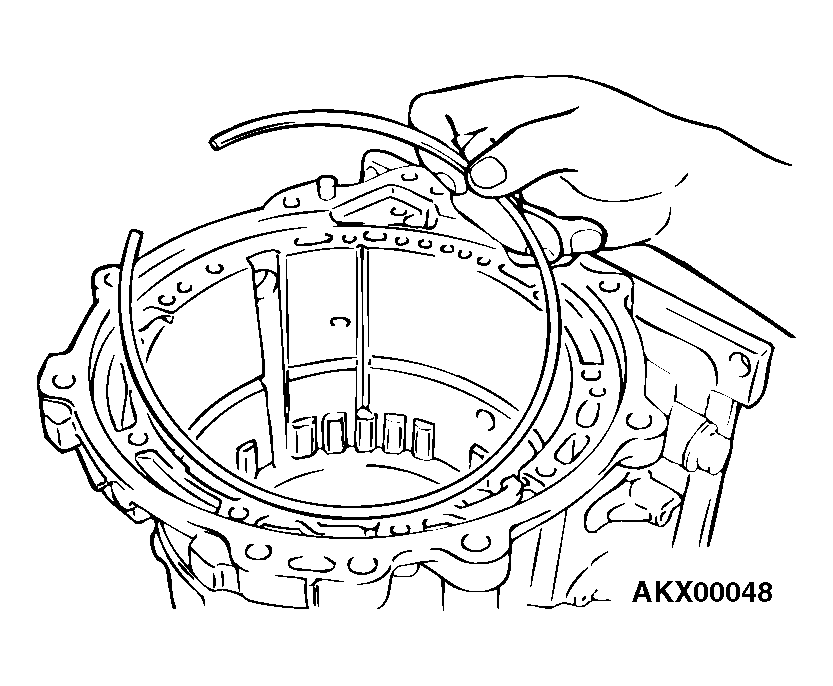

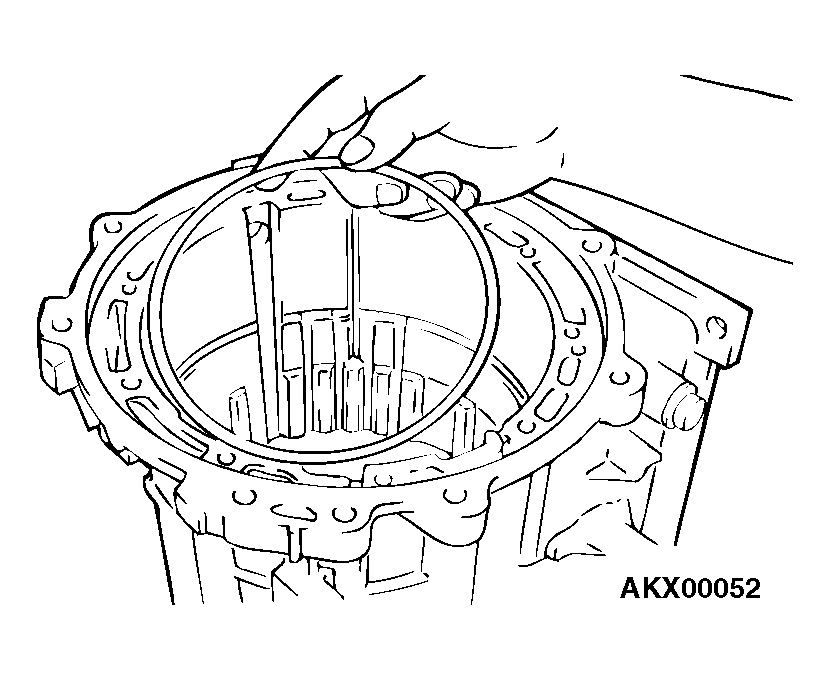

Remove the snap ring.

Fig 29: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

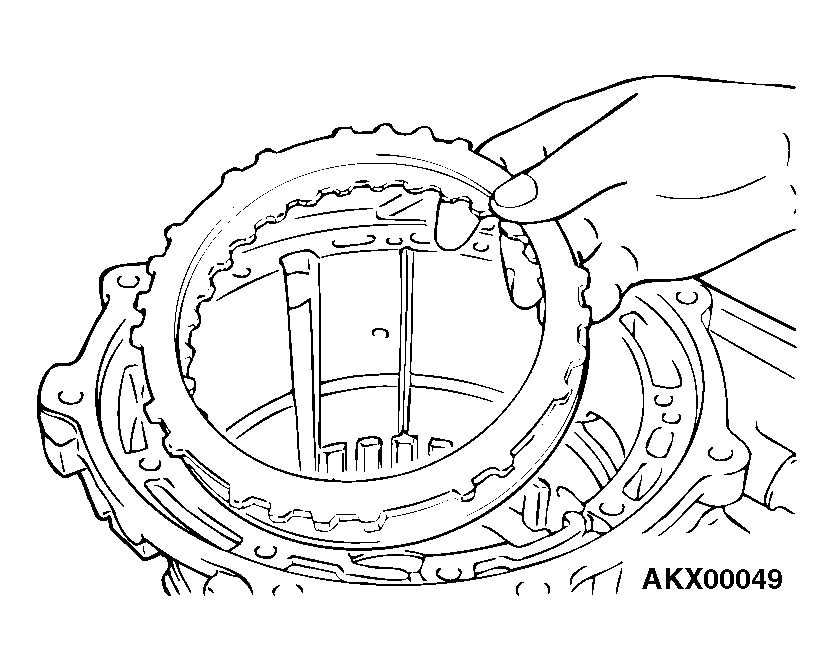

Remove the reaction plate and one brake disc.

Fig 30: Removing Reaction Plate And One Brake Disc
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

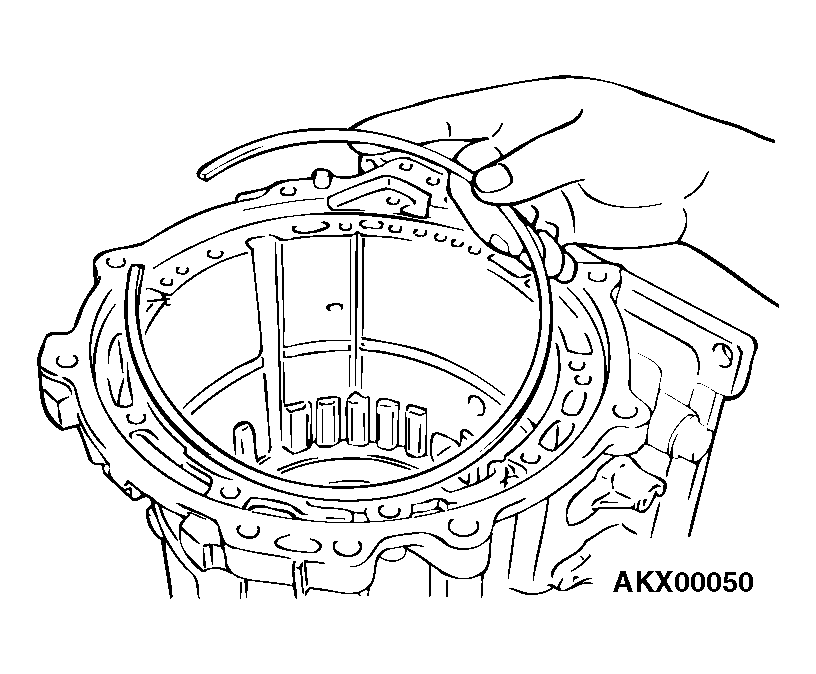

Remove the snap ring.

Fig 31: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

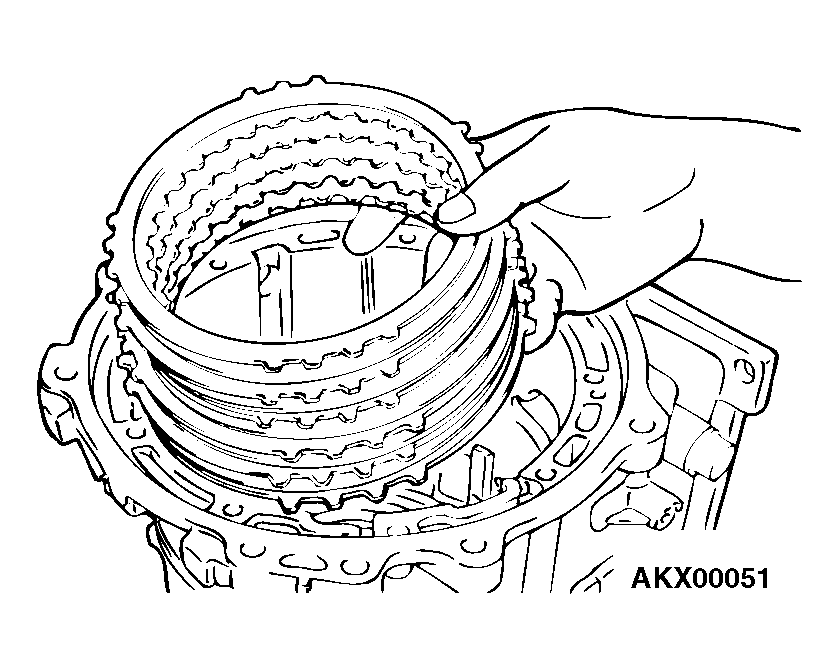

Remove the brake plate, brake disc, and pressure plate.

Fig 32: Removing Brake Plate, Brake Disc, And Pressure Plate
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

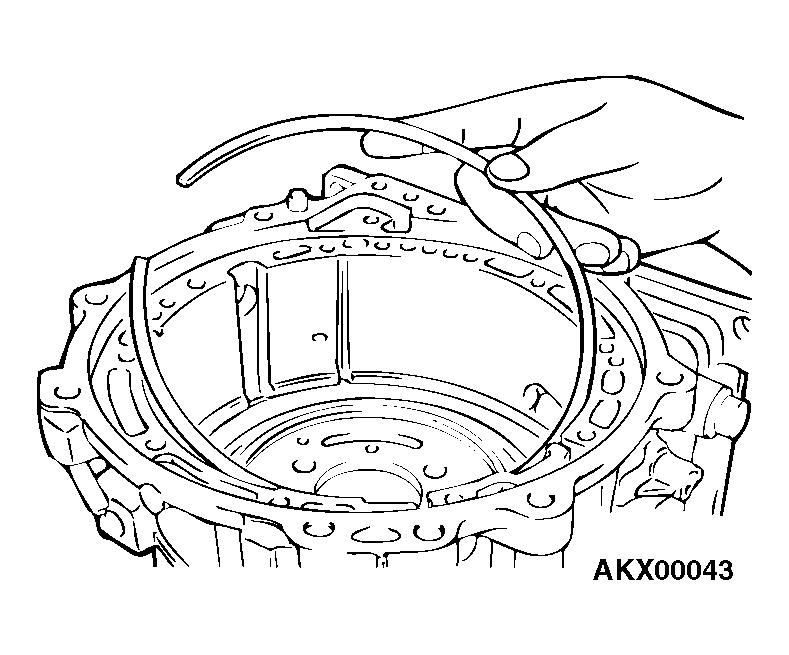

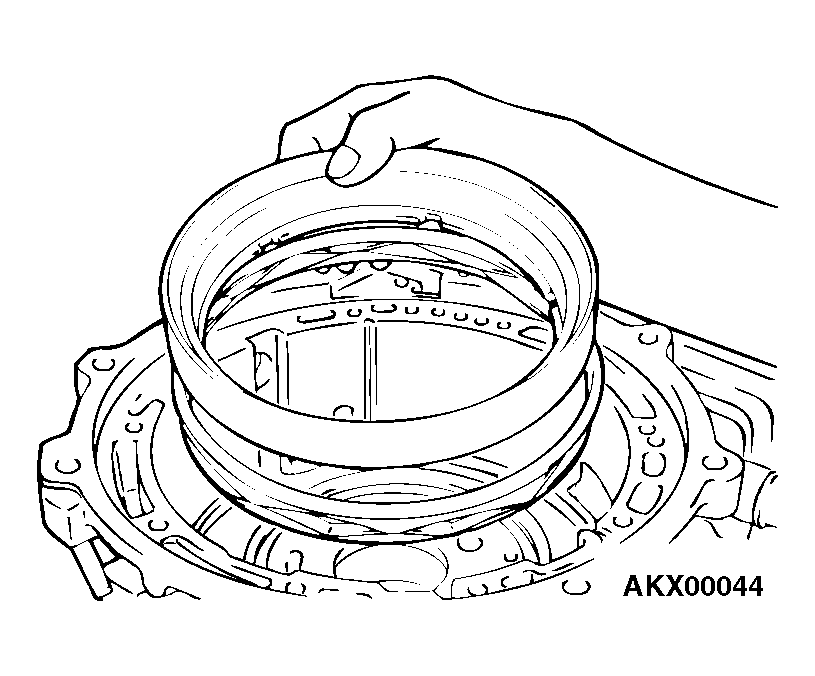

Remove the wave spring.

Fig 33: Removing Wave Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

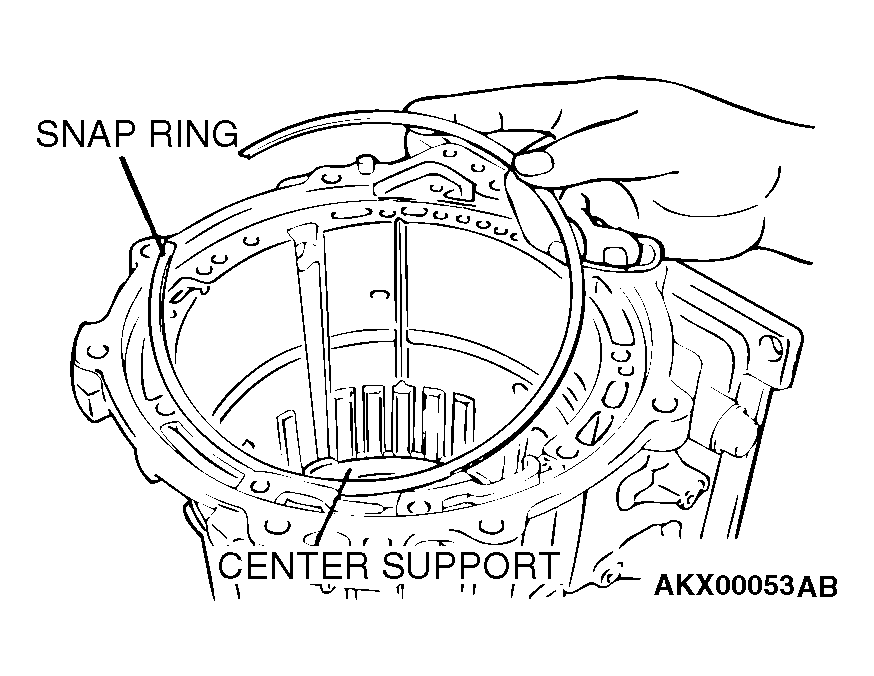

Remove the snap ring and center support.

Fig 34: Removing Snap Ring & Center Support
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

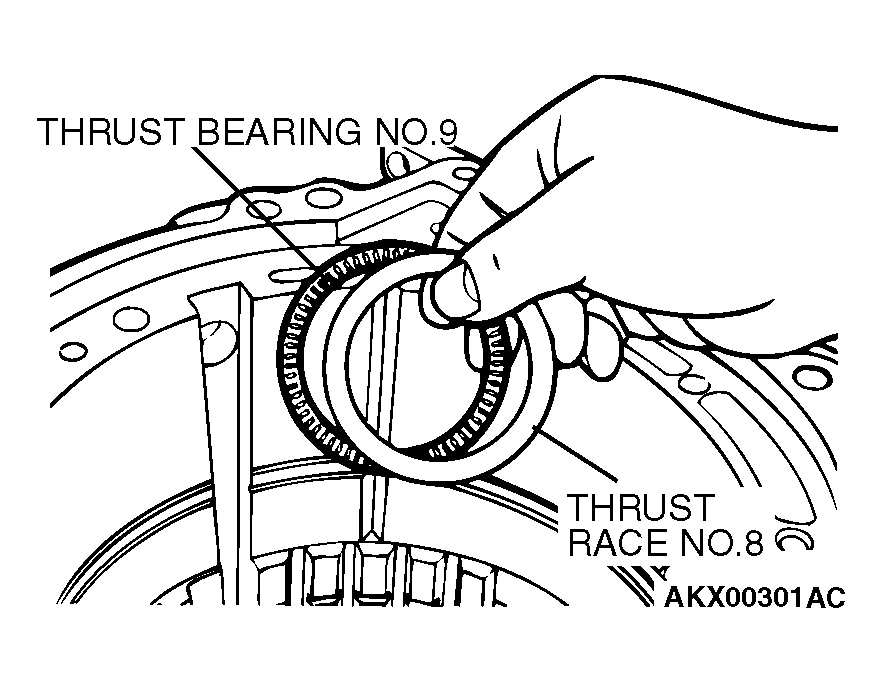

Remove the thrust race number 8 and thrust bearing number 9.
NOTE: The thrust race number 8 may be attached to the center support.

Fig 35: Removing Thrust Race Number 8 And Thrust Bearing Number 9
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the direct annulus gear.

Fig 36: Removing Direct Annulus Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

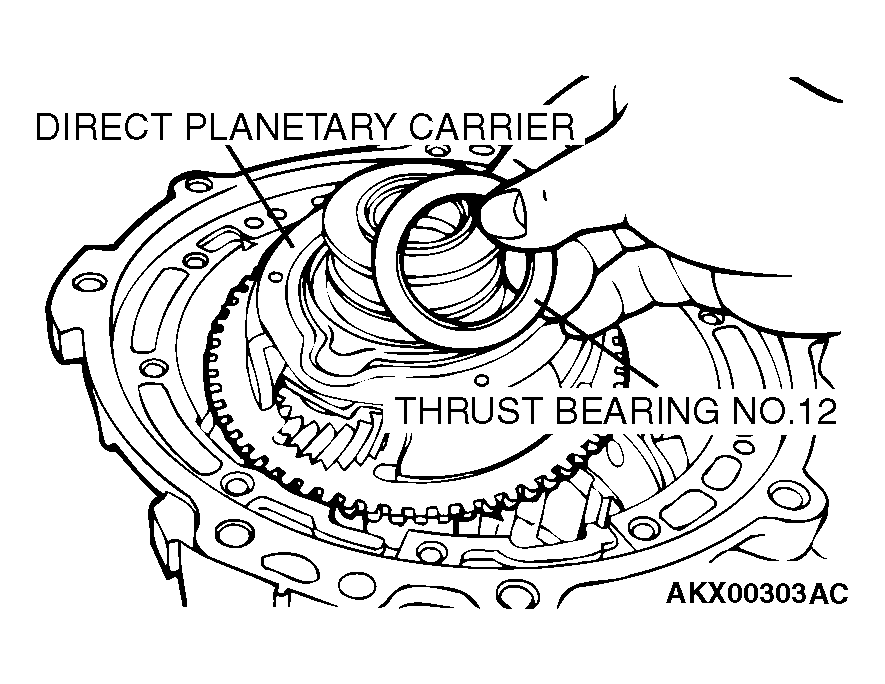

Remove the thrust bearing number 12 and direct planetary carrier.
NOTE: The thrust bearing number 12 may be attached to the direct annulus gear.

Fig 37: Removing Thrust Bearing Number 12 And Direct Planetary Carrier
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

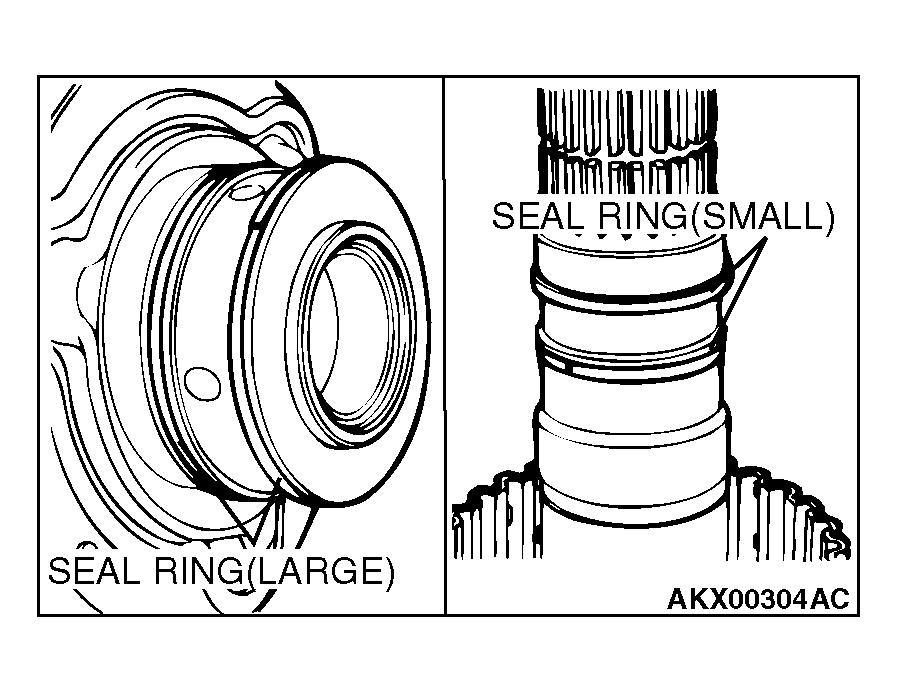

Remove the two large and two small seal rings from the direct planetary carrier.

Fig 38: Removing Large And Small Seal Rings From Direct Planetary Carrier
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

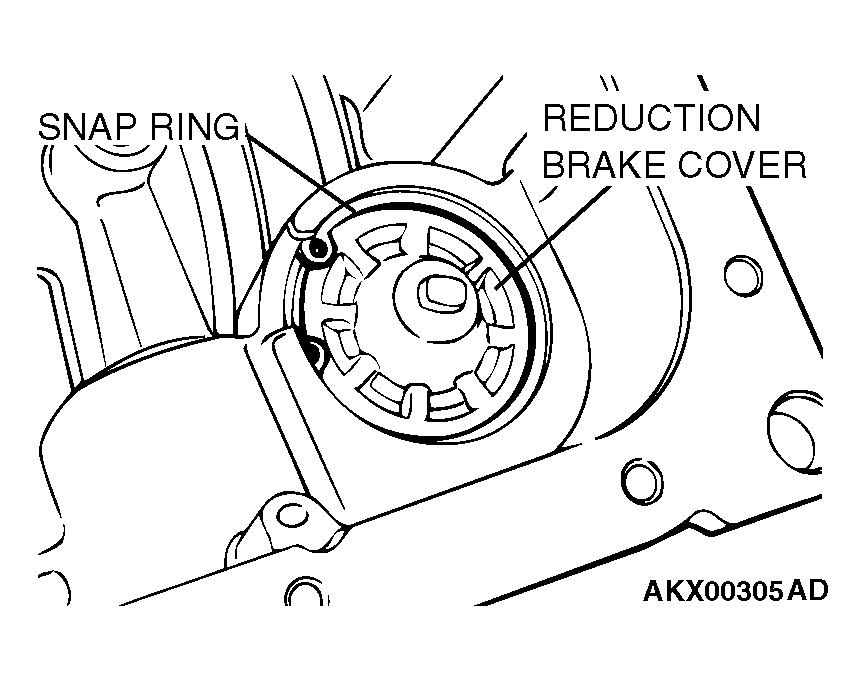

Remove the snap ring and then the reduction brake piston cover and O-ring.

Fig 39: Removing Snap Ring And Reduction Brake Piston Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

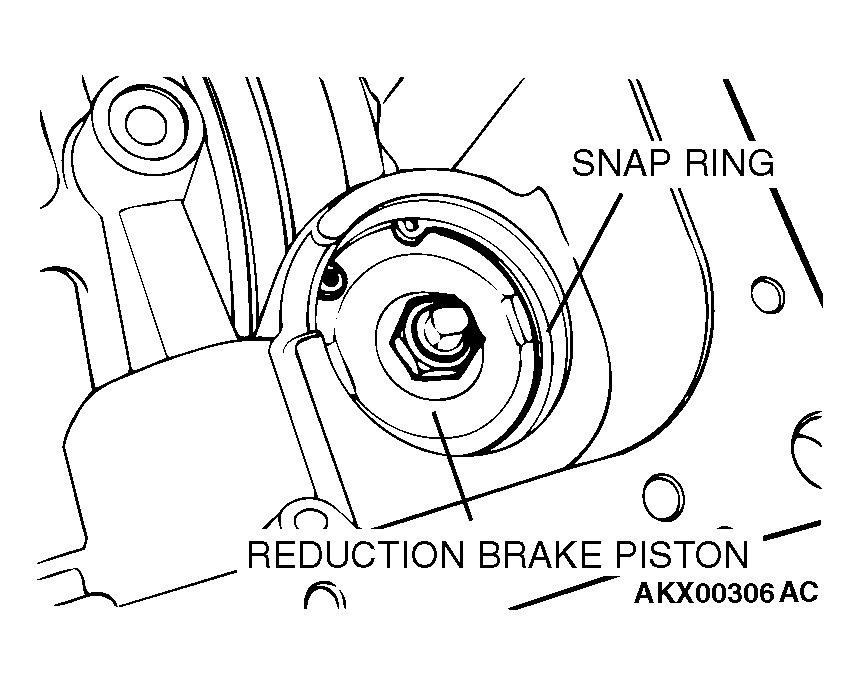

Remove the snap ring and then the nut, reduction brake piston, seal ring. Adjust rod and spring.

Fig 40: Removing Snap Ring And Reduction Brake Piston
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

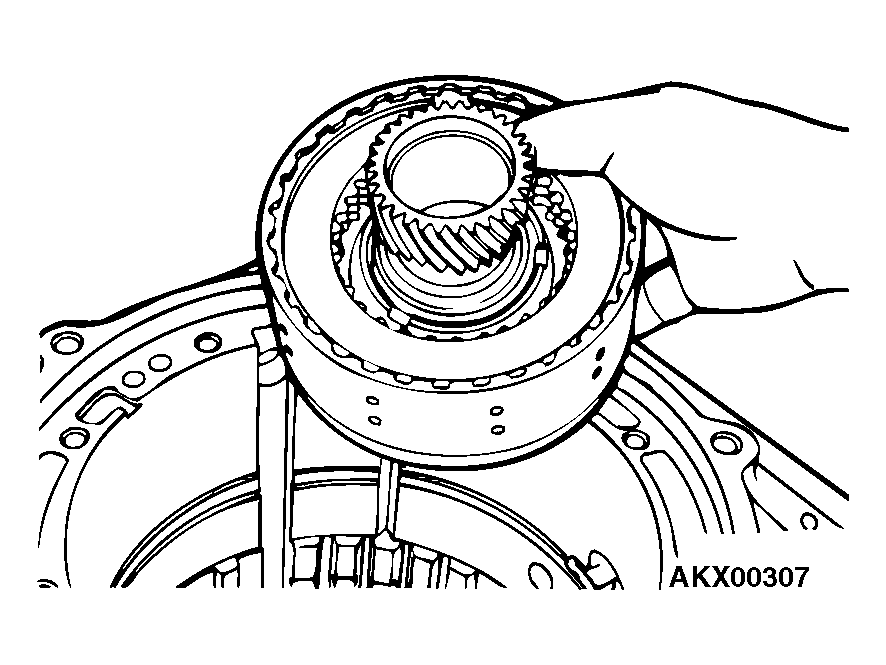

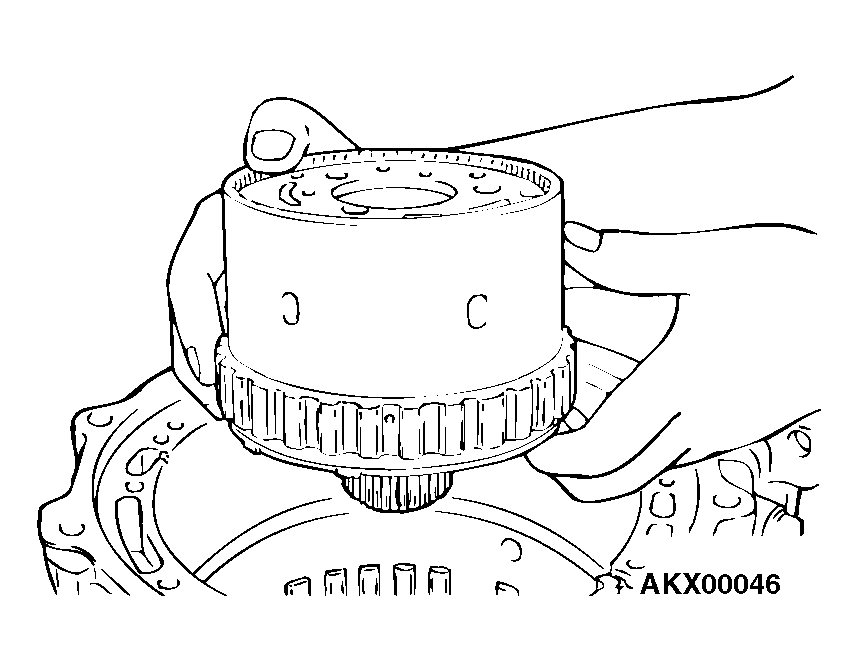

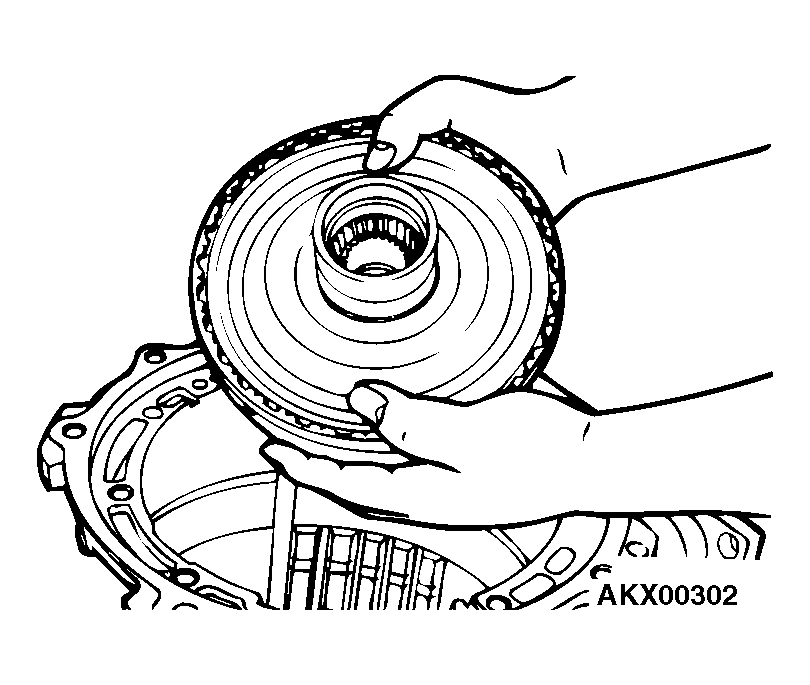

Remove the direct clutch.

Fig 41: Removing Direct Clutch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

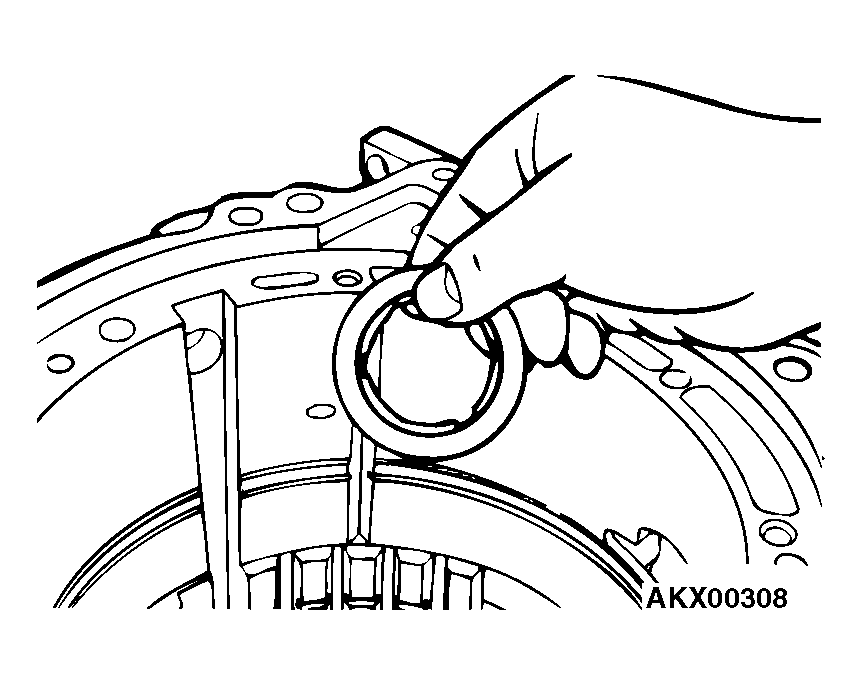

Remove the thrust bearing number 13.
NOTE: The thrust bearing number 13 may be attached to the direct clutch.

Fig 42: Removing Thrust Bearing Number 13
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

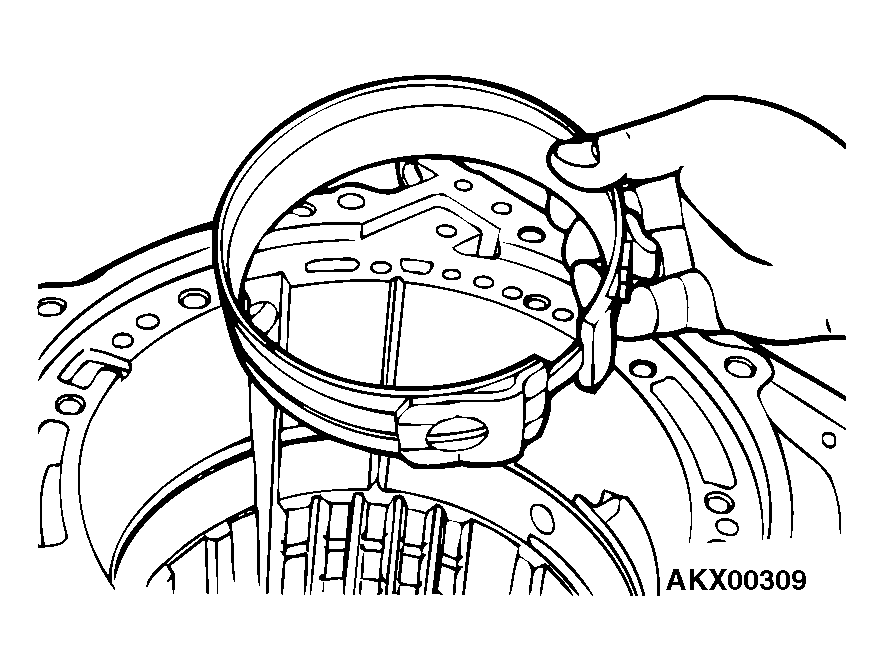

Remove the reduction brake band.

Fig 43: Removing Reduction Brake Band
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

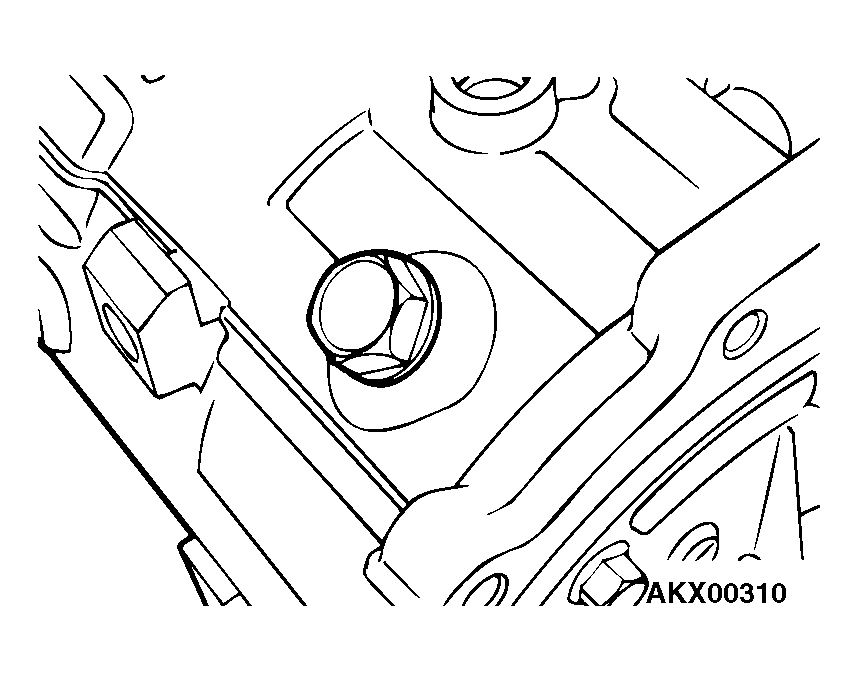

Remove the anchor plug and the O-ring.

Fig 44: Removing Anchor Plug And O-Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

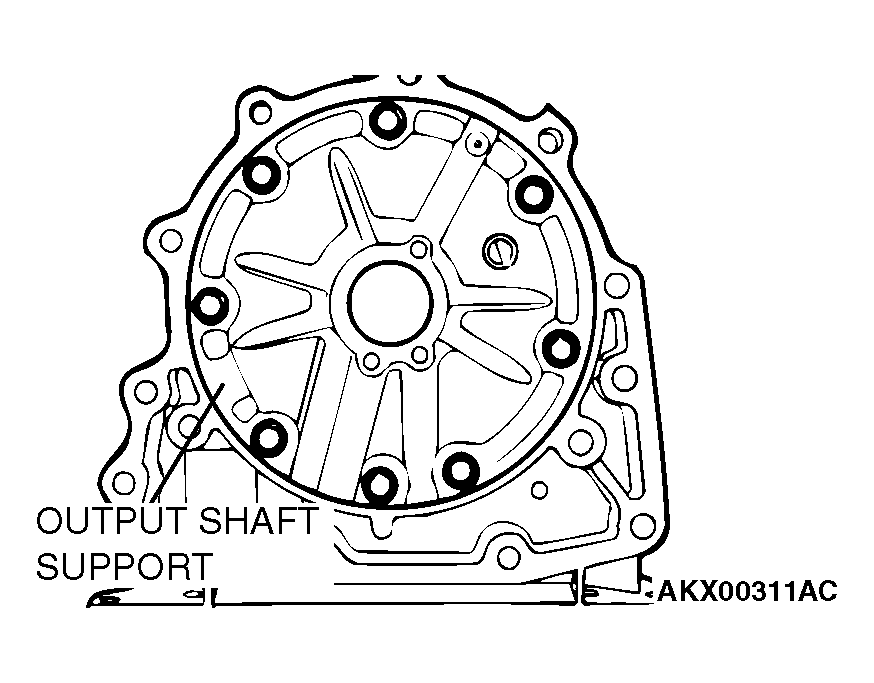

Remove the eight output shaft support mounting bolts, and then remove the output shaft support and gasket.

Fig 45: Removing Output Shaft Support Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
