Disassembly And Assembly: Notes

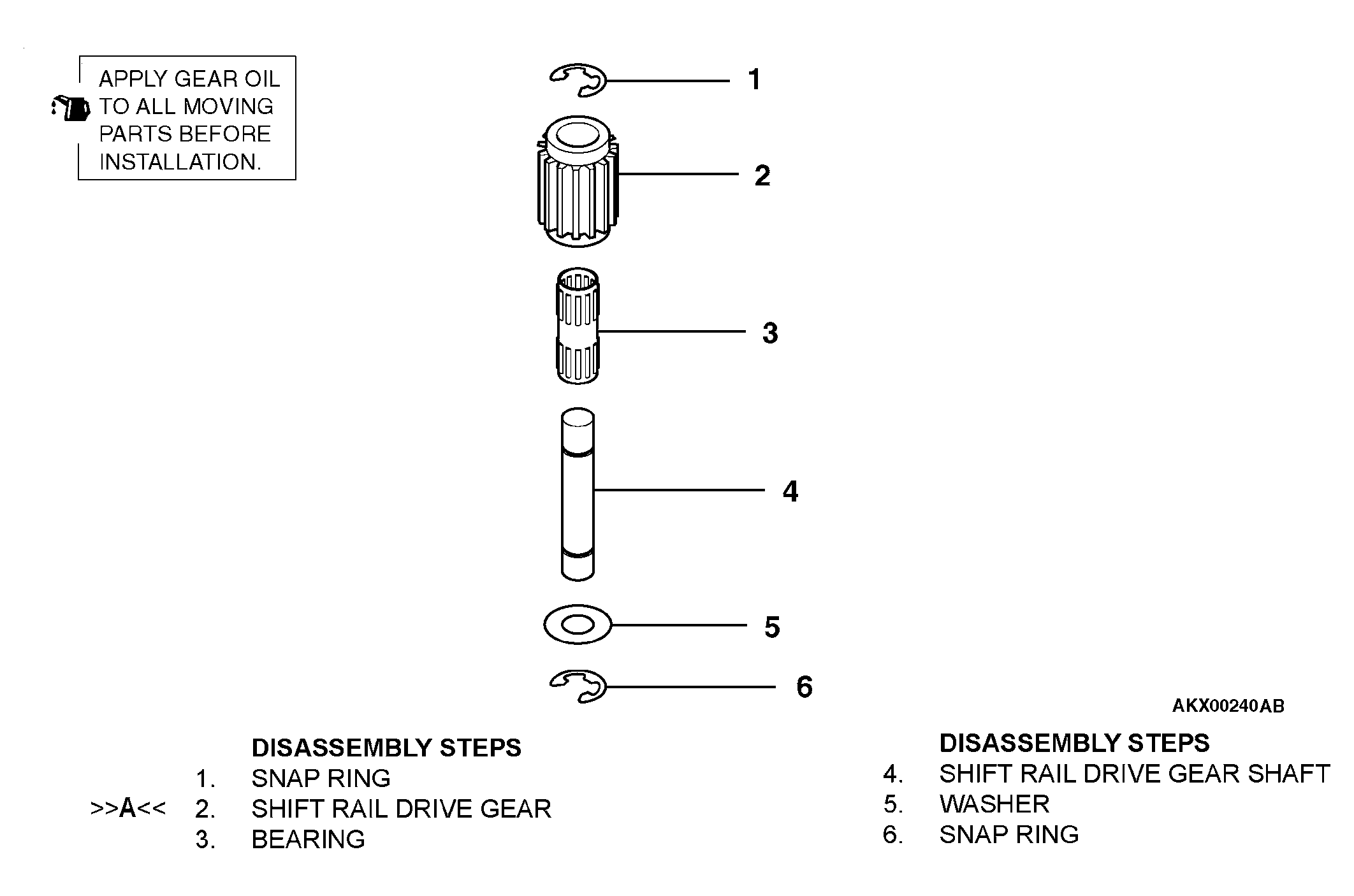

Fig 1: Disassembling/Assembling Shift Rail Drive Gear

G04266551

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
