Disassembly And Assembly: Notes

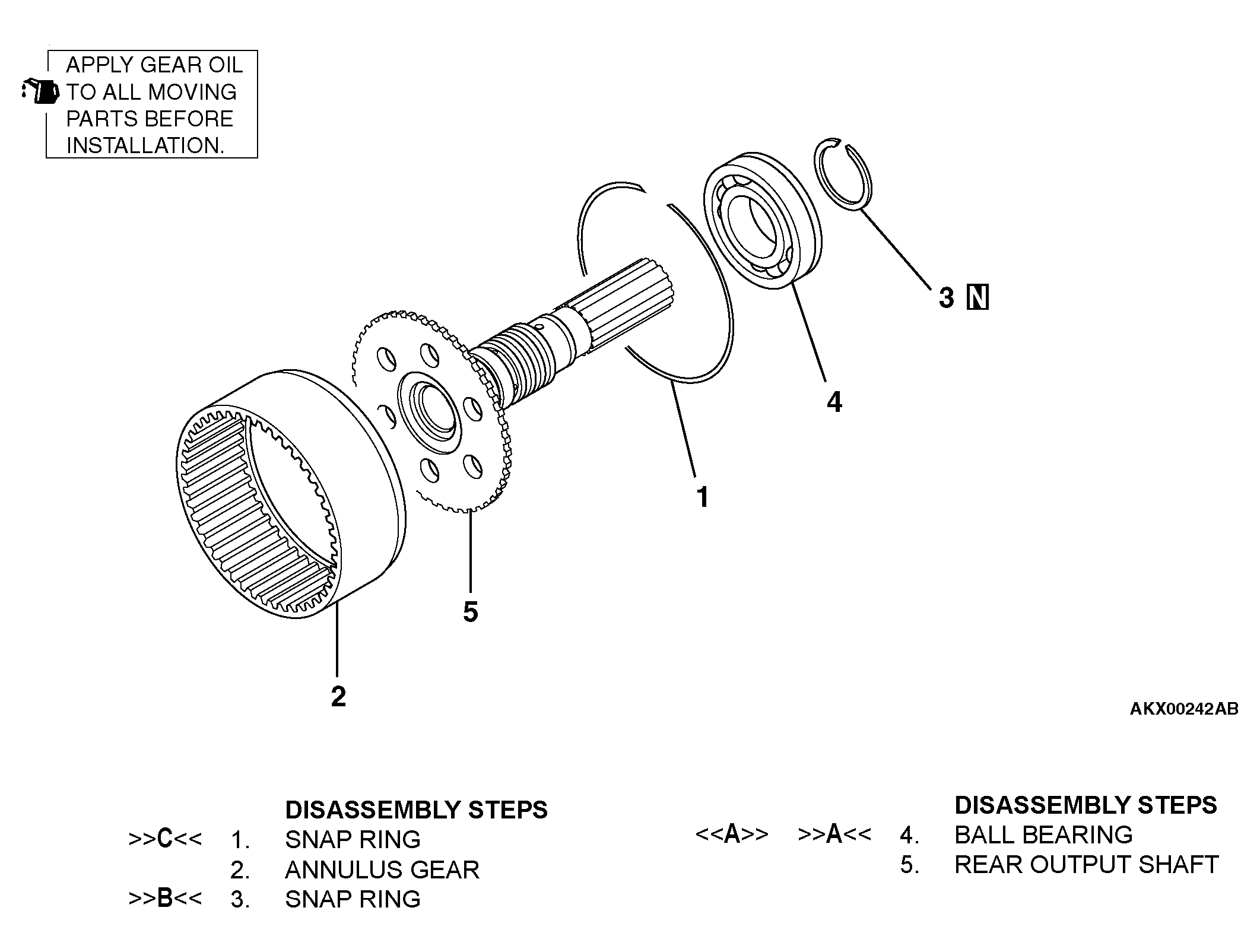

Fig 1: Disassembling/Assembling Rear Output Shaft
G04266538Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools
