Disassembly And Assembly: Notes

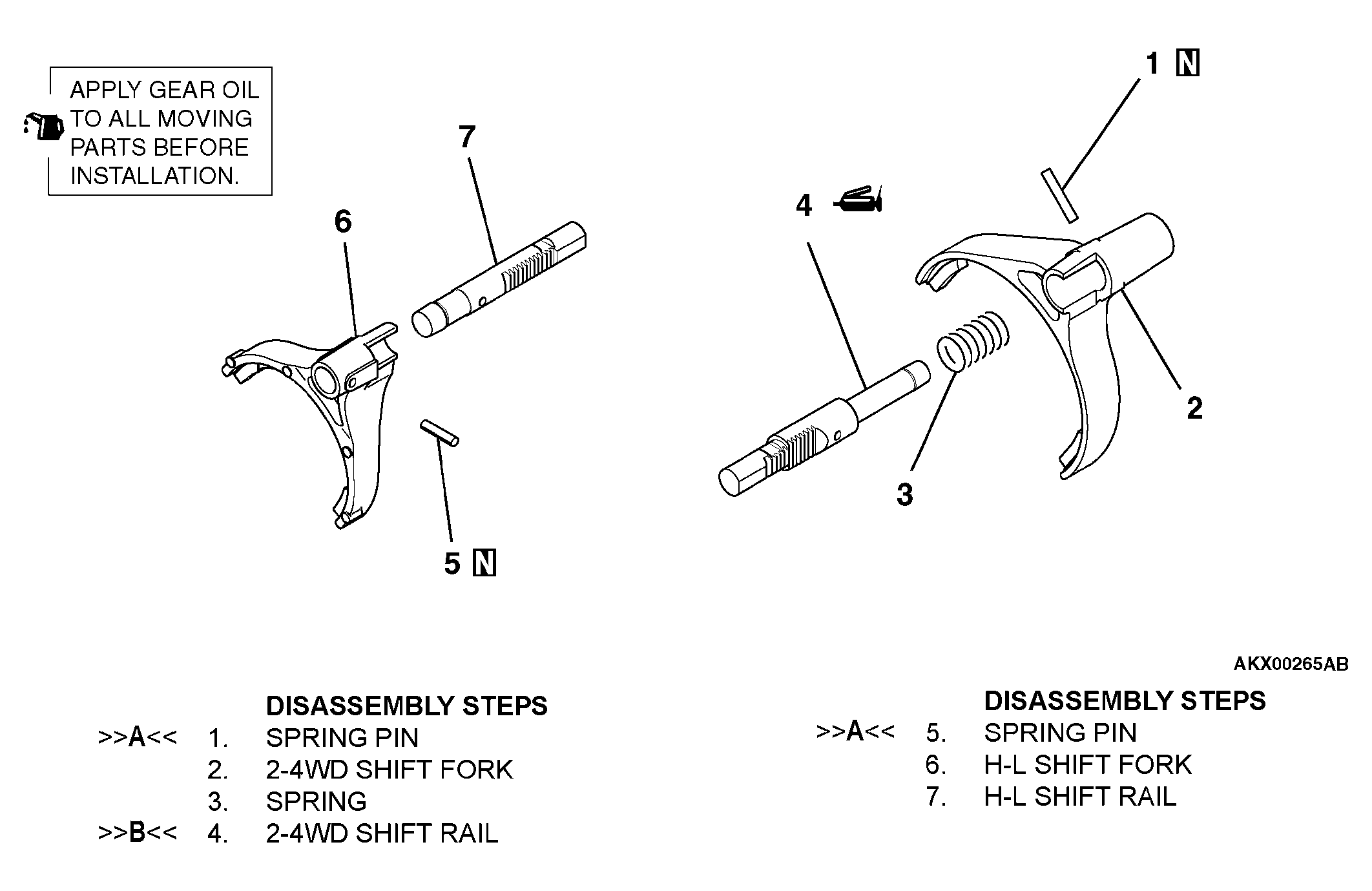

Fig 1: Disassembling/Assembling 2-4 Shift Rail/H-L Shift Rail

G04266553

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
