Special Tools
SPECIAL TOOLS
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

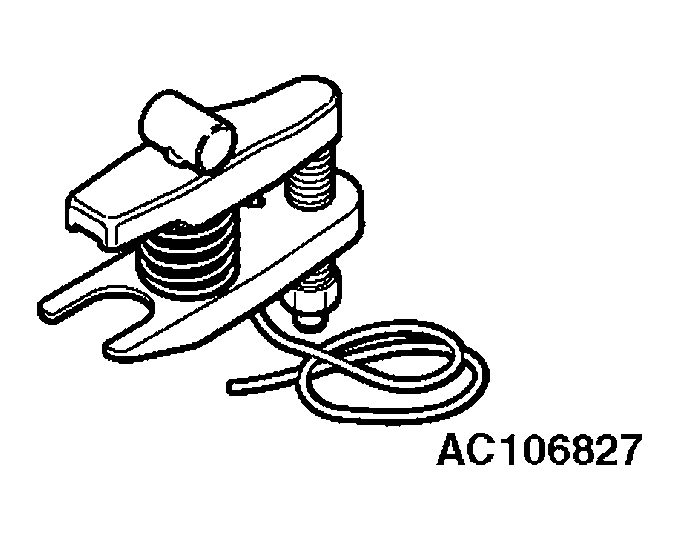

| MB991897 Ball joint remover |
MB991113-01, MB990635-01 or General service tool | Ball joint disconnection
NOTE:
Steering linkage puller (MB990635 or MB991113) is also available to disconnect ball joint.
|
|
| A: MB991237 spring compressor body B: MB991238 arm set |
MIT221369 | Coil spring removal and installation | |

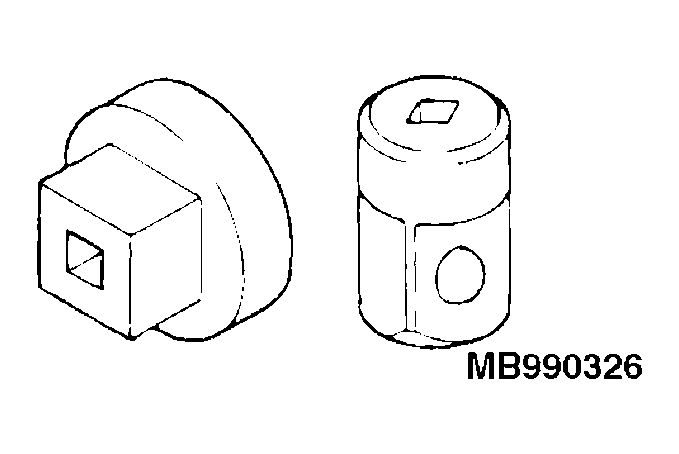

| MB990326 Preload socket |
General service tool | Ball joint rotating torque check | |

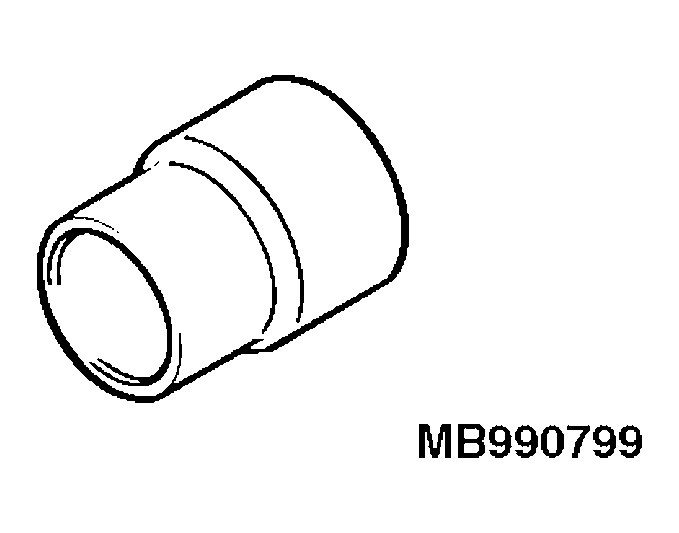

| MB990799 Ball joint remover and installer |
MB990799-01 | Dust cover installation |
