Camber And Caster: Notes

Standard value:

Camber: 0°00'+/- 30' (difference between right and left wheels: within 30')

Caster: 3°50'+/- 1° (difference between right and left wheels: within 30')

If the standard value is not obtained, make adjustment by the following procedure.

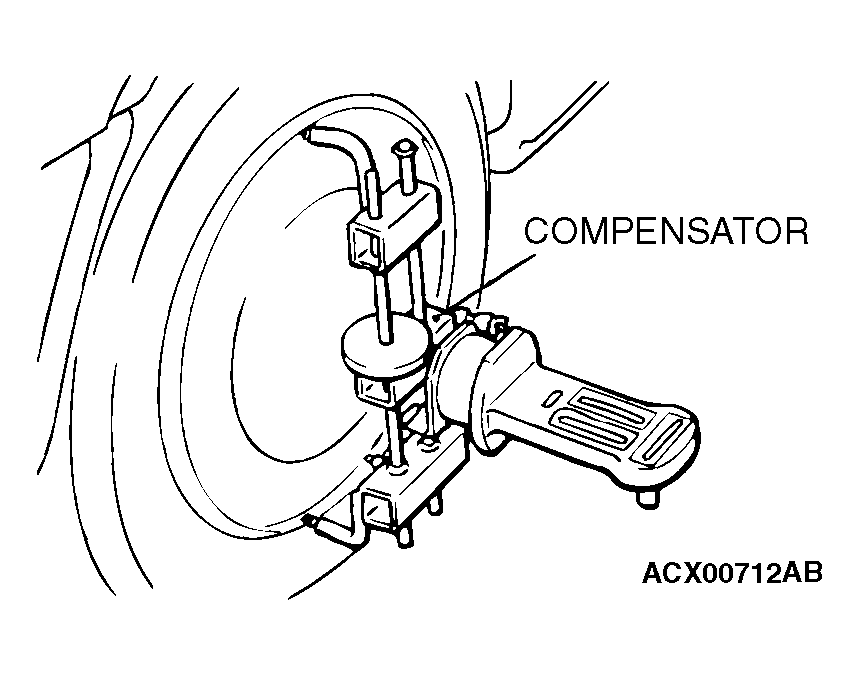

Fig 1: Installing Compensator

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Adjust the camber and caster until they meets the standard value by turning the lower arm camber adjusting bolt according to the camber and caster reference table (Refer to CAMBER AND CASTER REFERENCE TABLE  ).
2. After adjusting the camber, the toe should be adjusted.

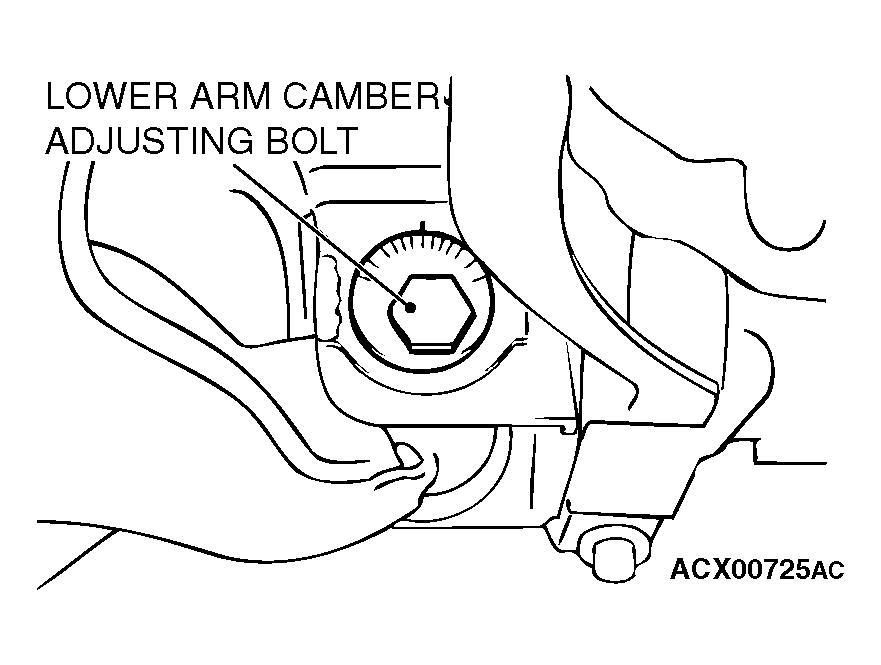

   Fig 2: Locating Lower Arm Camber Adjusting Bolt

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
