How To Read This Table (Example)

If the camber difference -0°35' and the caster difference is 0°18' by comparing the measurement value with the standard value, rotate the front adjusting cam by 1.5 graduations and the rear adjusting cam by 2.5 graduations to the opposite direction against the "A" direction.

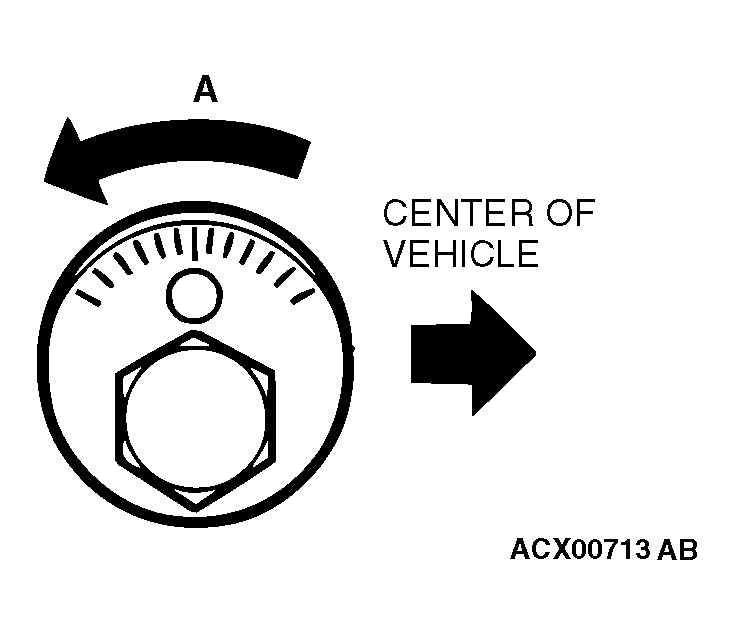

Fig 1: Identifying Rear Adjusting Cam

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Solid lines show caster, broken lines show camber.

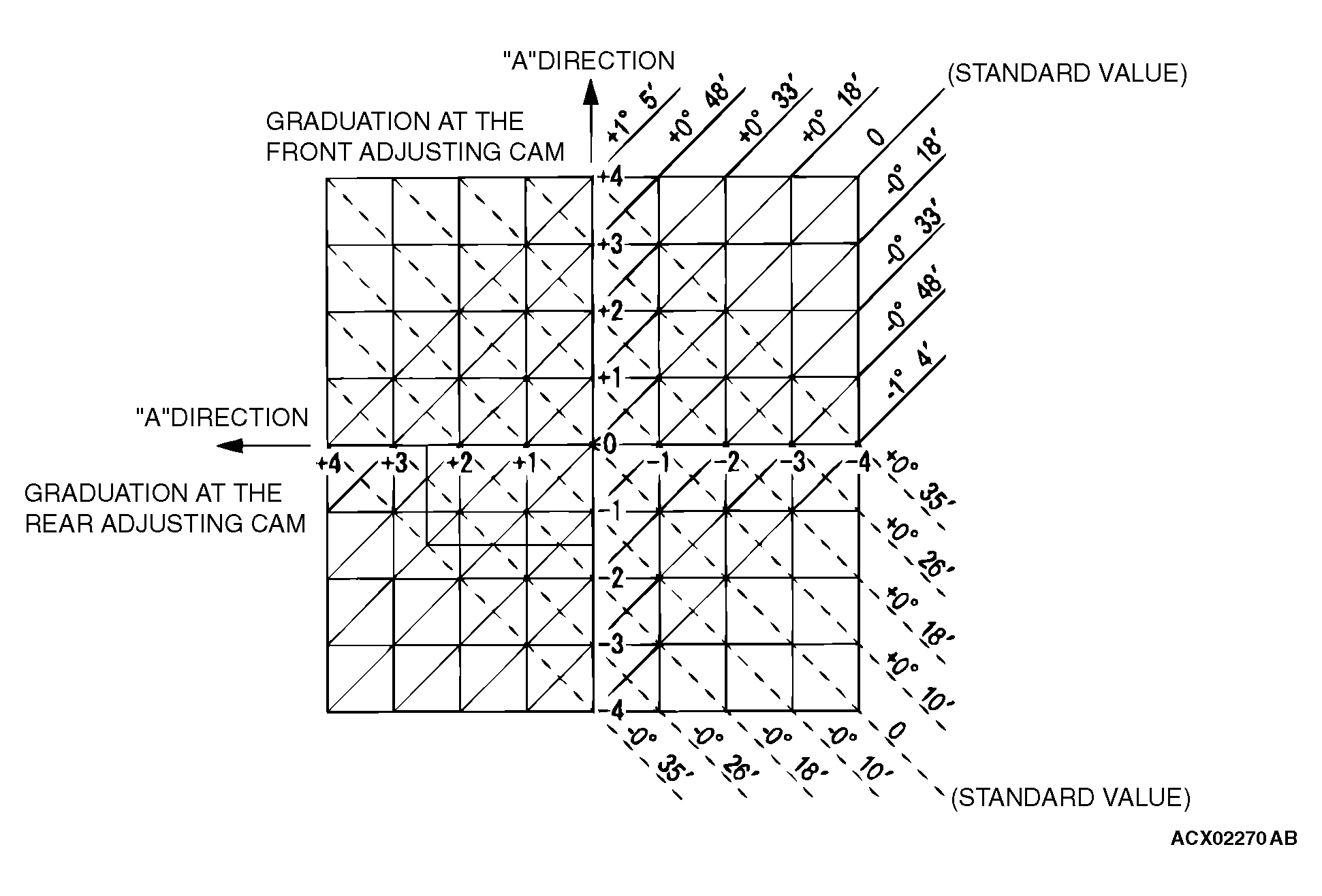

Fig 2: Camber And Caster Reference Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
