Notes
Removal And Installation: Notes

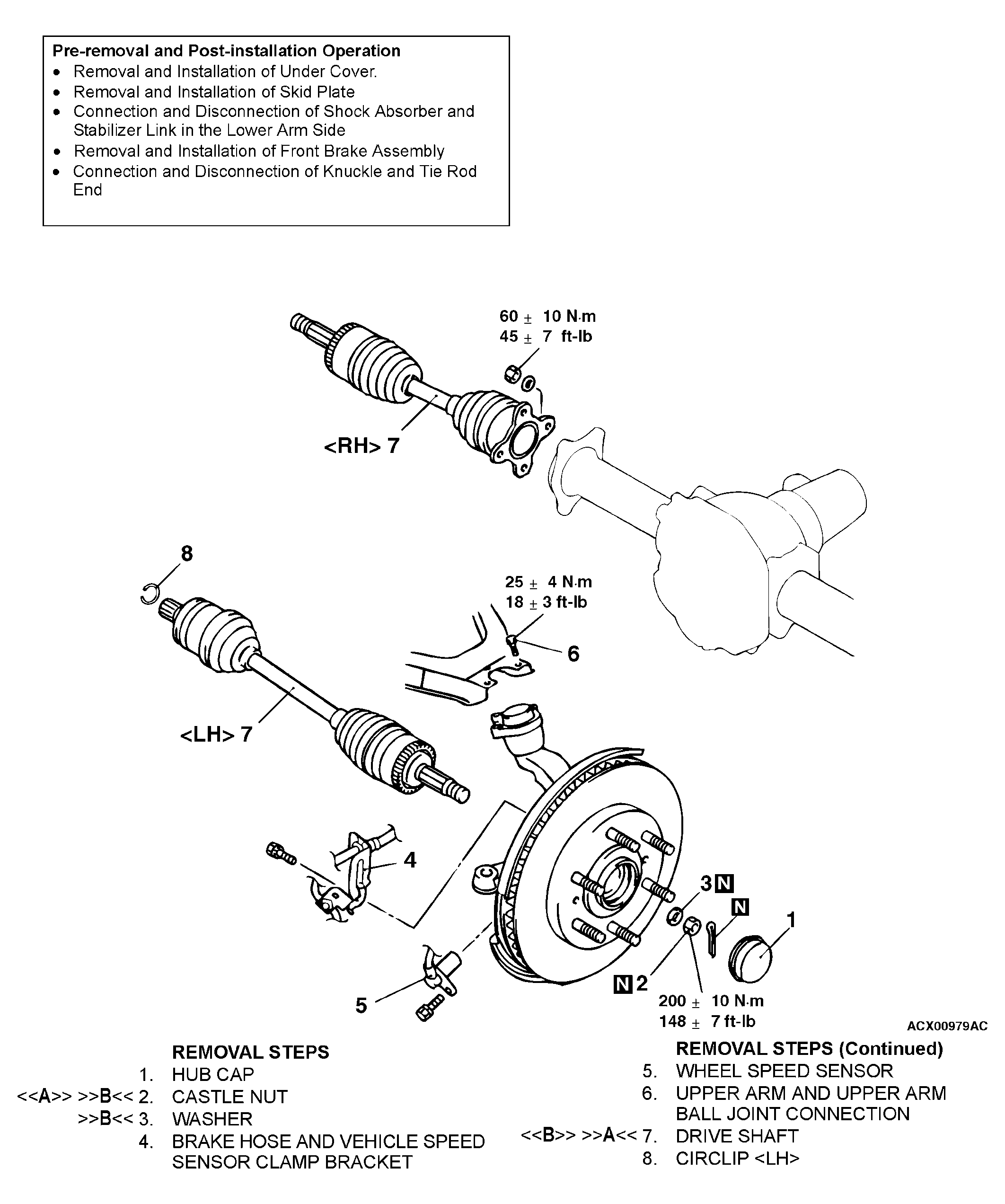

Fig 1: Removing/Installing Driveshaft Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tools:
MB990767: Front Hub and Flange Yoke Holder
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
