Home >> Mitsubishi >> 2006 >> Montero >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Axle >> Driveshaft Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

CAUTION: Never disassemble the UJ assembly except when replacing the UJ boot.

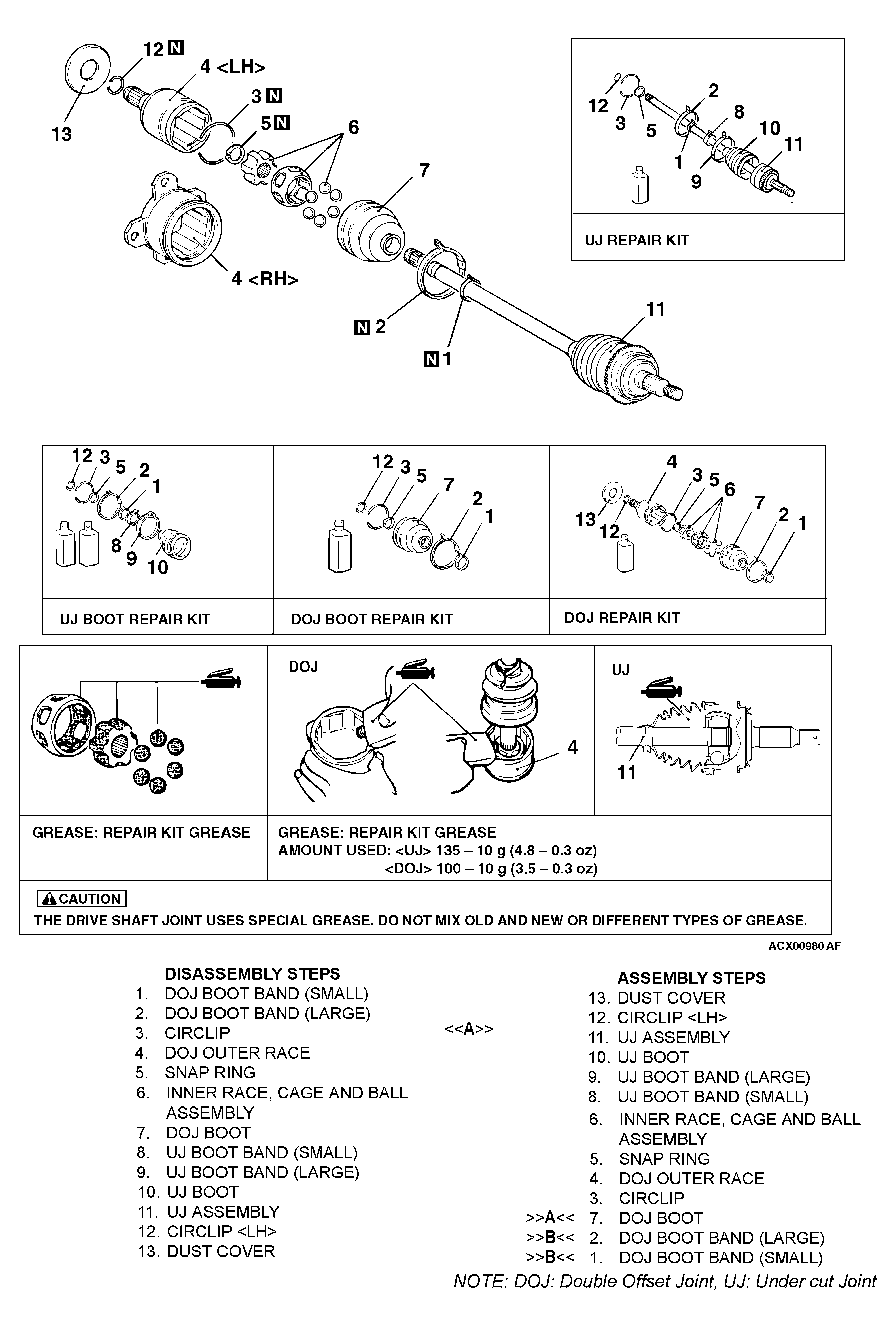

Fig 1: Disassembling/Assembling Driveshaft Assembly
G04266649Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
