Steering Angle Check

Place the front wheel on a turning radius gauge and measure the steering angle.

Standard value:

STEERING ANGLE SPECIFICATIONS CHART

ITEM	SPECIFICATION
Inside wheel	36°30' +/- 1°30'
Outside wheel (reference)	31°40'

Fig 1: Checking Steering Angle Using Turning Radius Gauge

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If the steering angle is not within the standard value, adjust the toe-in by undoing the clip and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
Standard value: 2.5 +/- 2.5 mm (0.1+/- 0.1 inch)

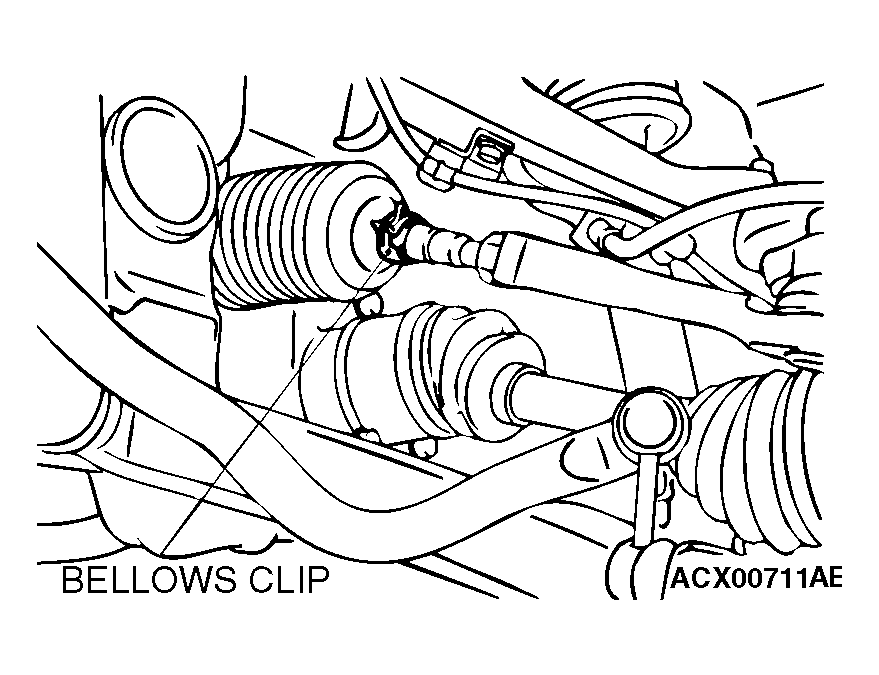

Fig 2: Locating Bellows Clips
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
