INSPECTION PROCEDURE 1: Communication with scan tool MB991958 is not possible (Communication is not possible with SRS).: Notes

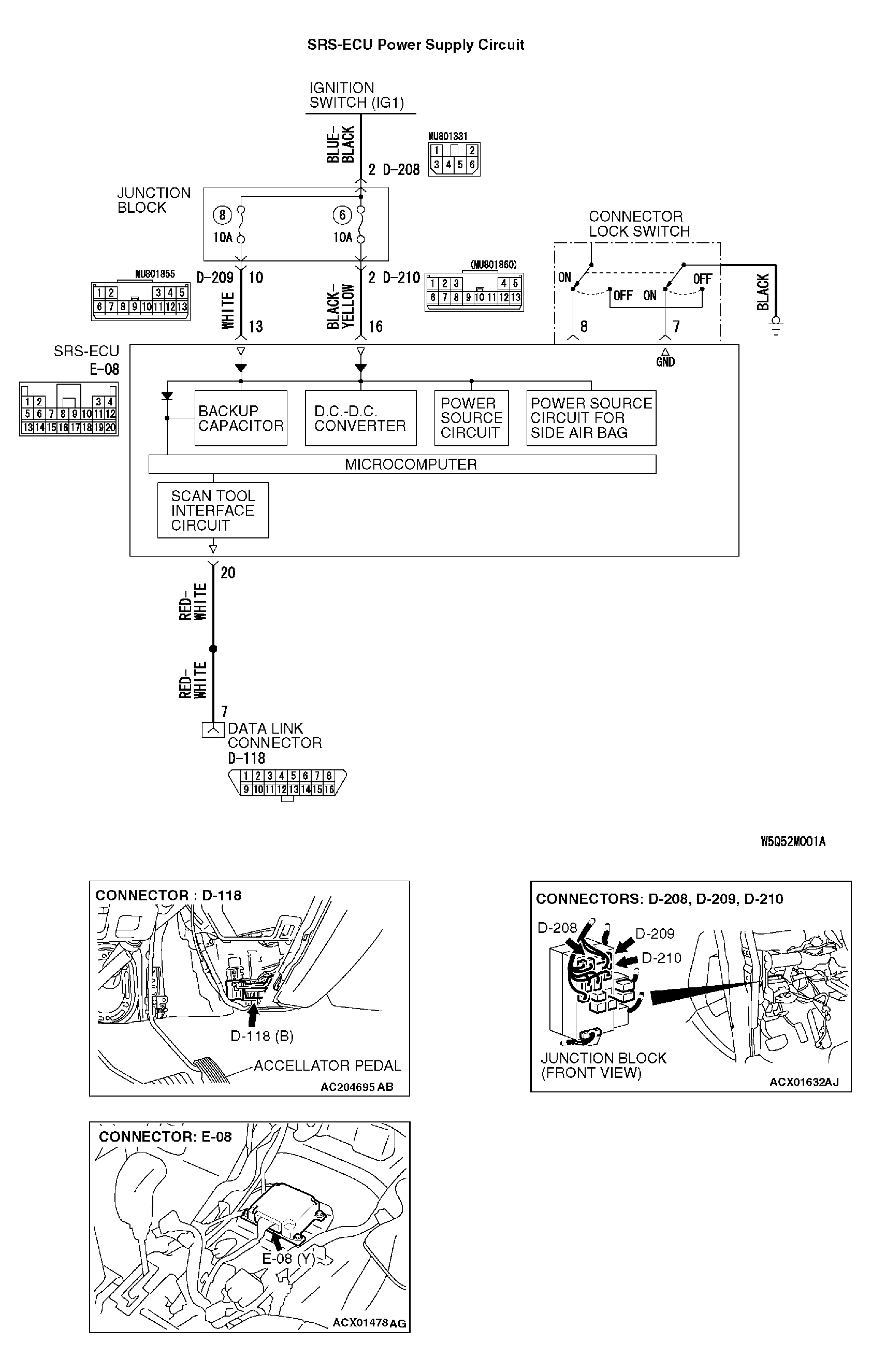

Fig 1: SRS-ECU Power Supply - Circuit Diagram
G04268210Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
