Fuel Supply: General Description

  1. The fuel tank is located under the floor below the rear seats.
  2. A fuel tank rollover valve prevents fuel from leaking out in the event of a collision.

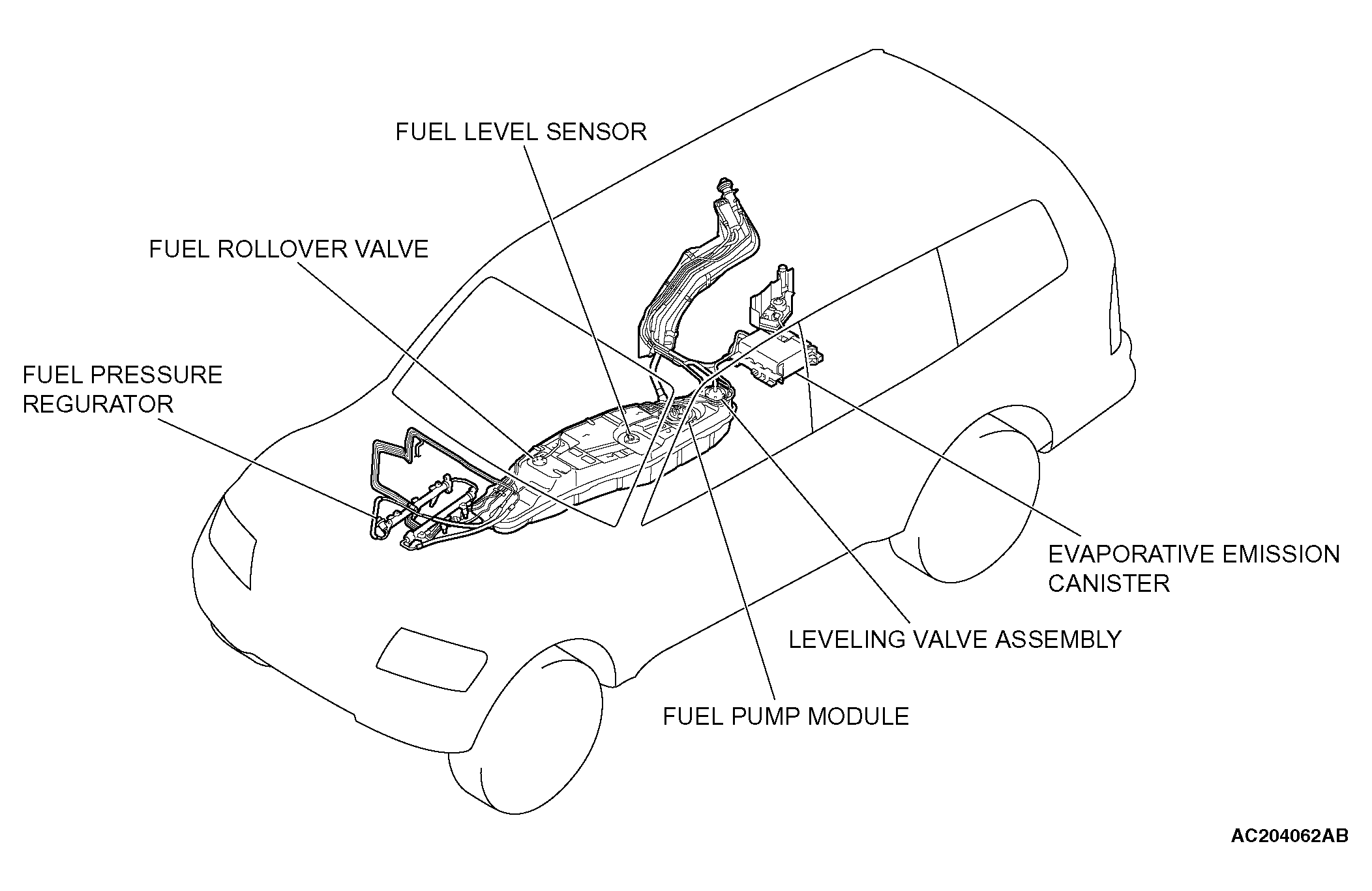

    Fig 1: Identifying Fuel System Components
    G04264978Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
