Home >> Mitsubishi >> 2006 >> Montero >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Supply >> Fuel Tank >> Fuel Pump (Module) Disassembly And Assembly >> Notes

Fuel Pump (Module) Disassembly And Assembly: Notes

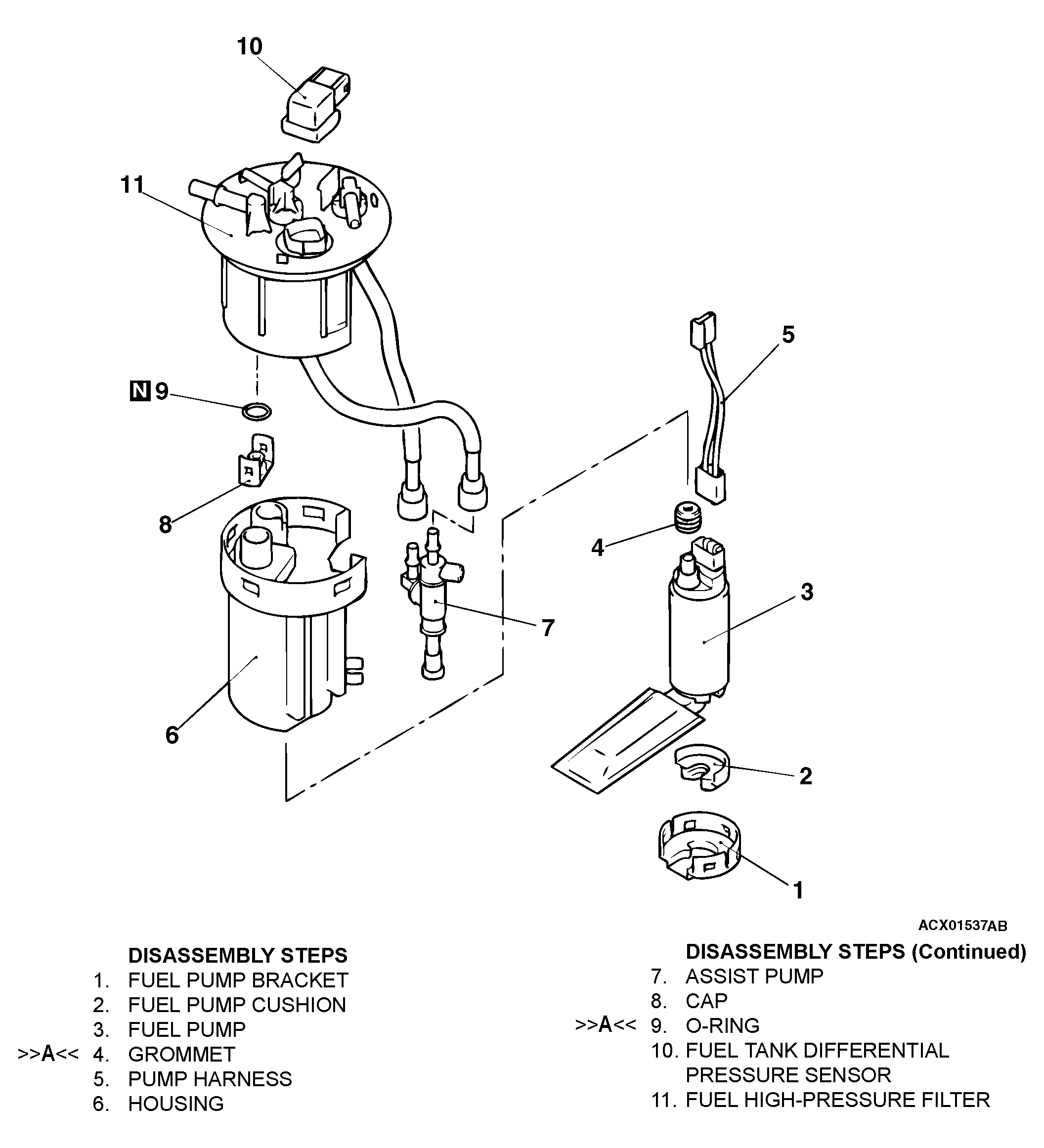

Fig 1: Disassembling/Assembling Fuel Pump

G04265001

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
