Radiator Removal And Installation: Notes

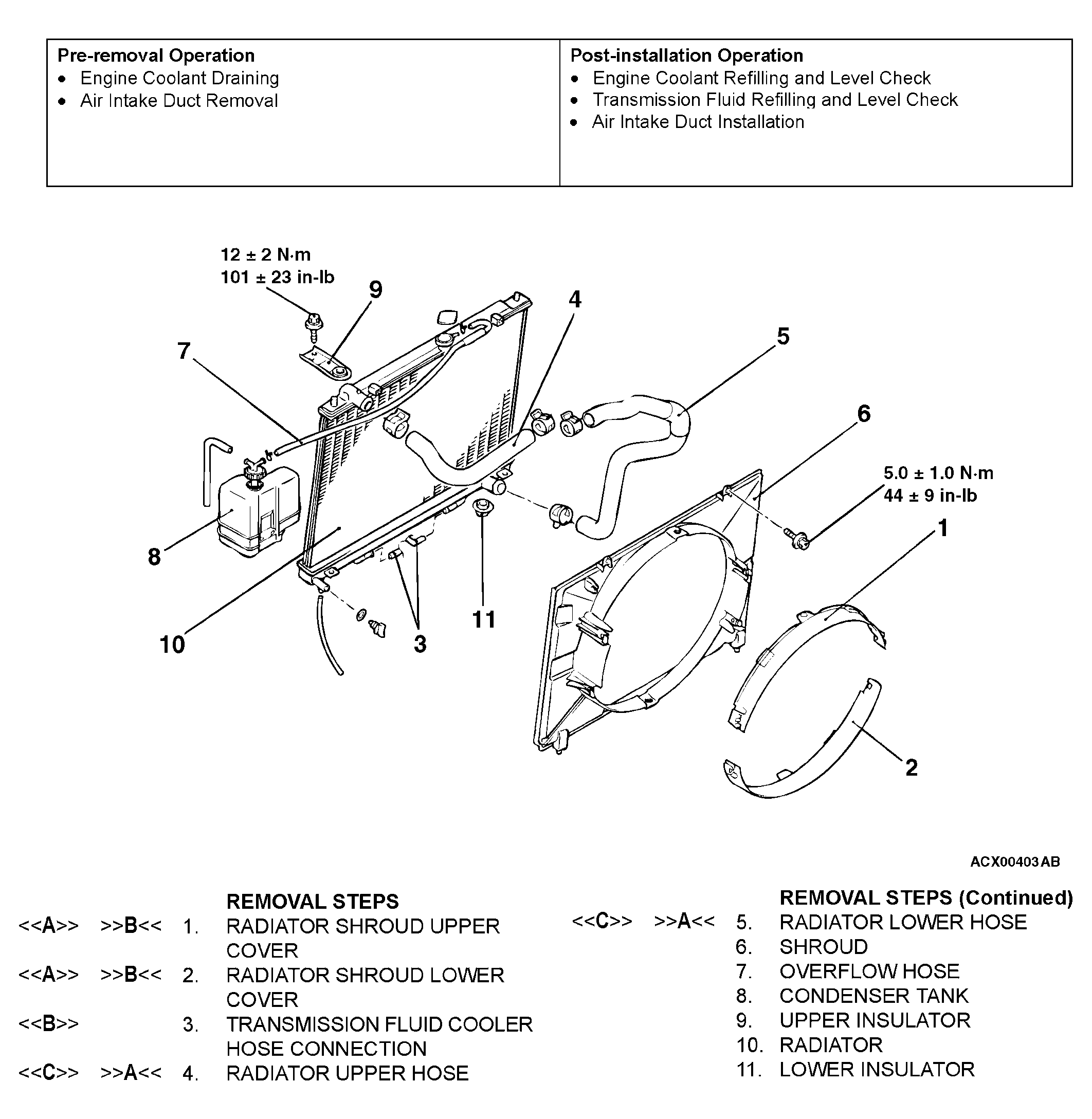

Fig 1: Removing/Installing Radiator

G04265010

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
