< Sample Timing Chart >

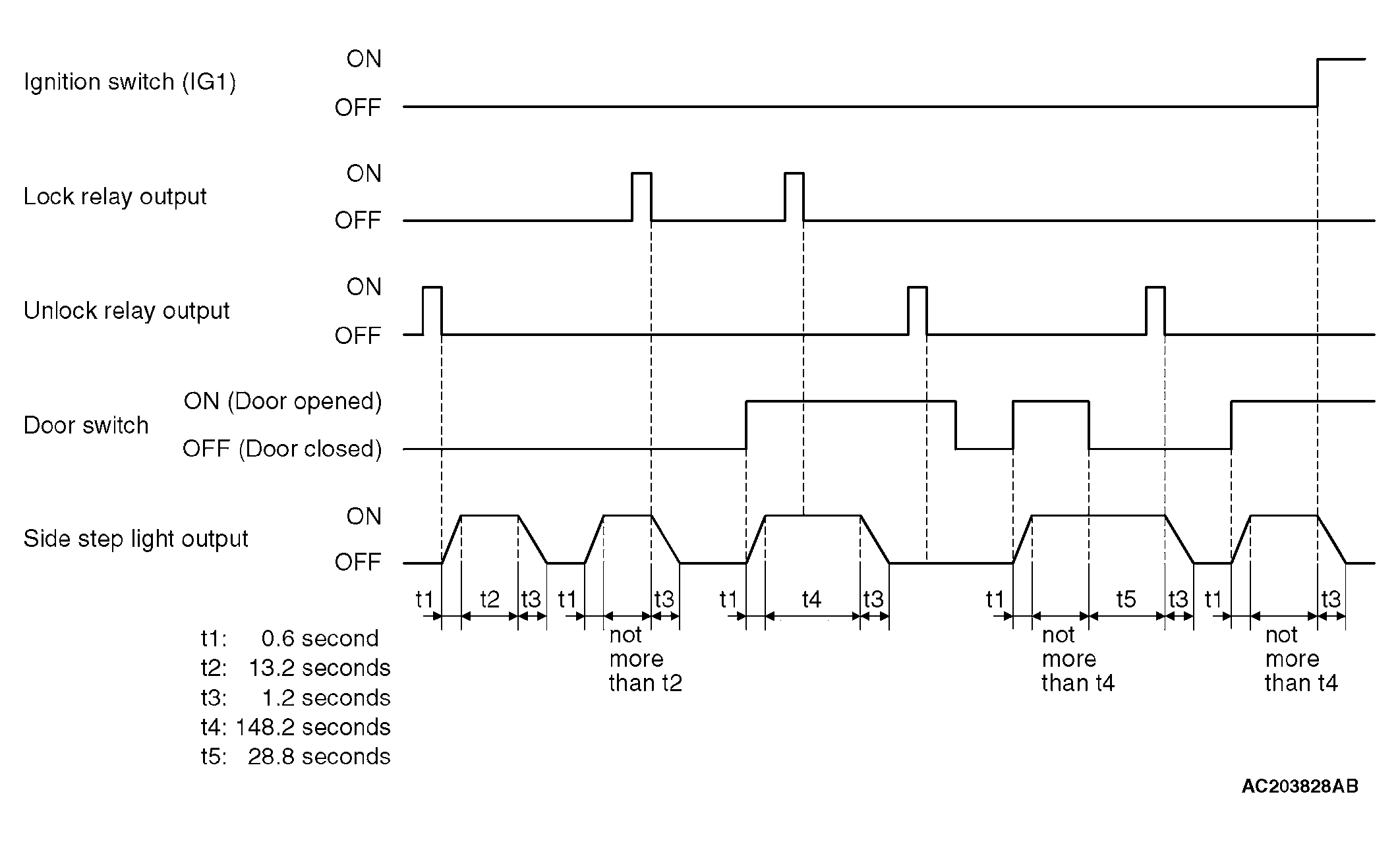

Fig 1: Side Step Light - Sample Timing Chart

G04268468

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
