Special Tools
SPECIAL TOOLS CHART
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|
| MB991958 A: MB991824 B: MB991827 C: MB991910 D: MB991911 E: MB991914 F: MB991825 G: MB991826 MUT-III sub assembly A: Vehicle communication interface (V.C.I.) B: MUT-III USB cable C: MUT-III main harness A (Vehicles with CAN communication system) D: MUT-III main harness B (Vehicles without CAN communication system) E: MUT-III main harness C (for Daimler Chrysler models only) F: MUT-III measurement adapter G: MUT-III trigger harness |
MB991824-KIT
NOTE:
G: MB991826 MUT-III trigger harness is not necessary when pushing V.C.I. ENTER key.
|
SWS communication line check (ECU check and service data)
CAUTION:
MUT-III main harness B (MB991911) should be used. MUT-III main harness A and C should not be used for this vehicle.
|
|

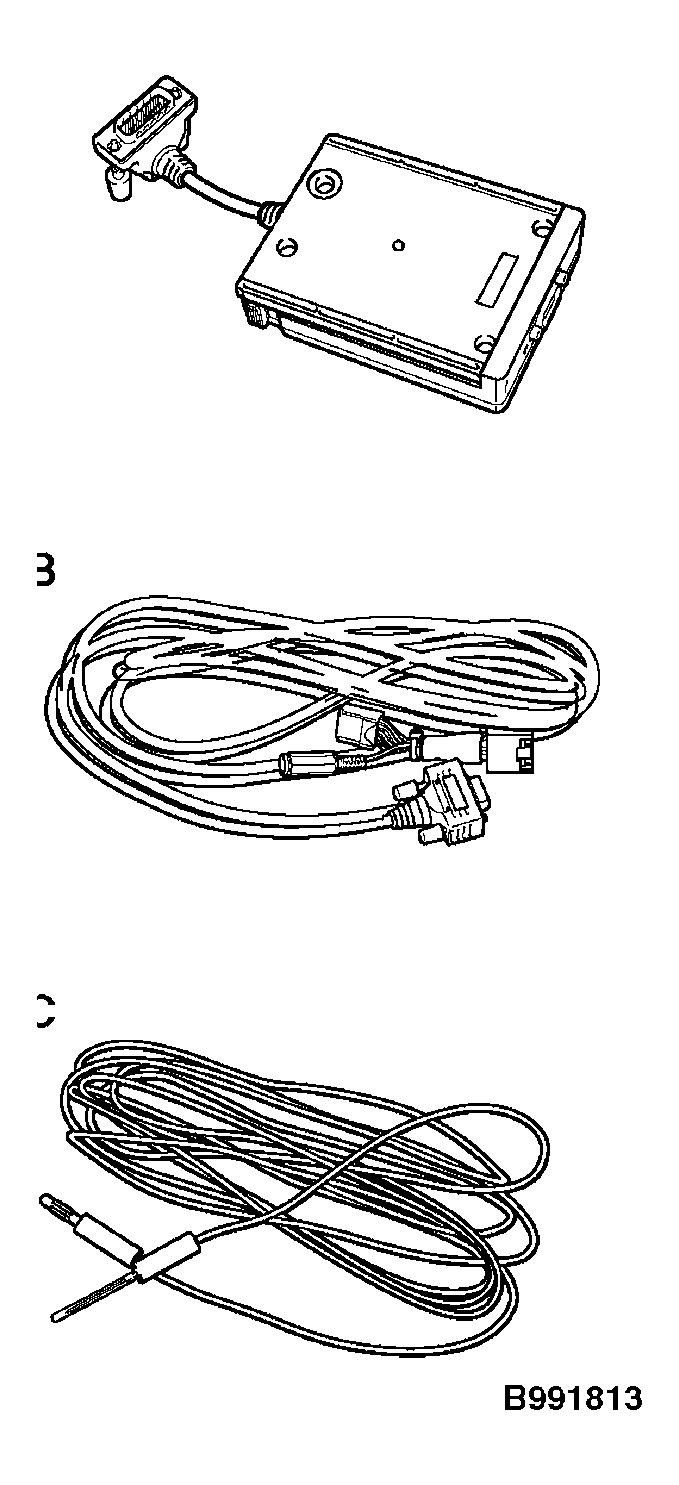

| MB991813 A: MB991806 B: MB991812 C: MB991822 |
SWS monitor kit A: SWS monitor cartridge B: SWS monitor harness (for column-ECU) C: Probe harness |
SWS communication line check (ECU check and service data) | |
| MB991529 Diagnostic trouble code check harness |
Tool not necessary if the scan tool (MUT-II) is available | Checking input signal when using a voltmeter | |
| MB991223 A: MB991219 B: MB991220 C: MB991221 D: MB991222 Harness set A: test harness B: LED harness C: LED harness adaptor D: Probe |
MB991223 | Making voltage and resistance measurement during troubleshooting A: Connector pin contact pressure inspection B: Power circuit inspection C: Power circuit inspection D: Commercial tester connection |
|
| MB991854 | SWS monitor harness (for 13-pin) | SWS communication line check (ECU check, service data) |
