Removal And Installation: Notes

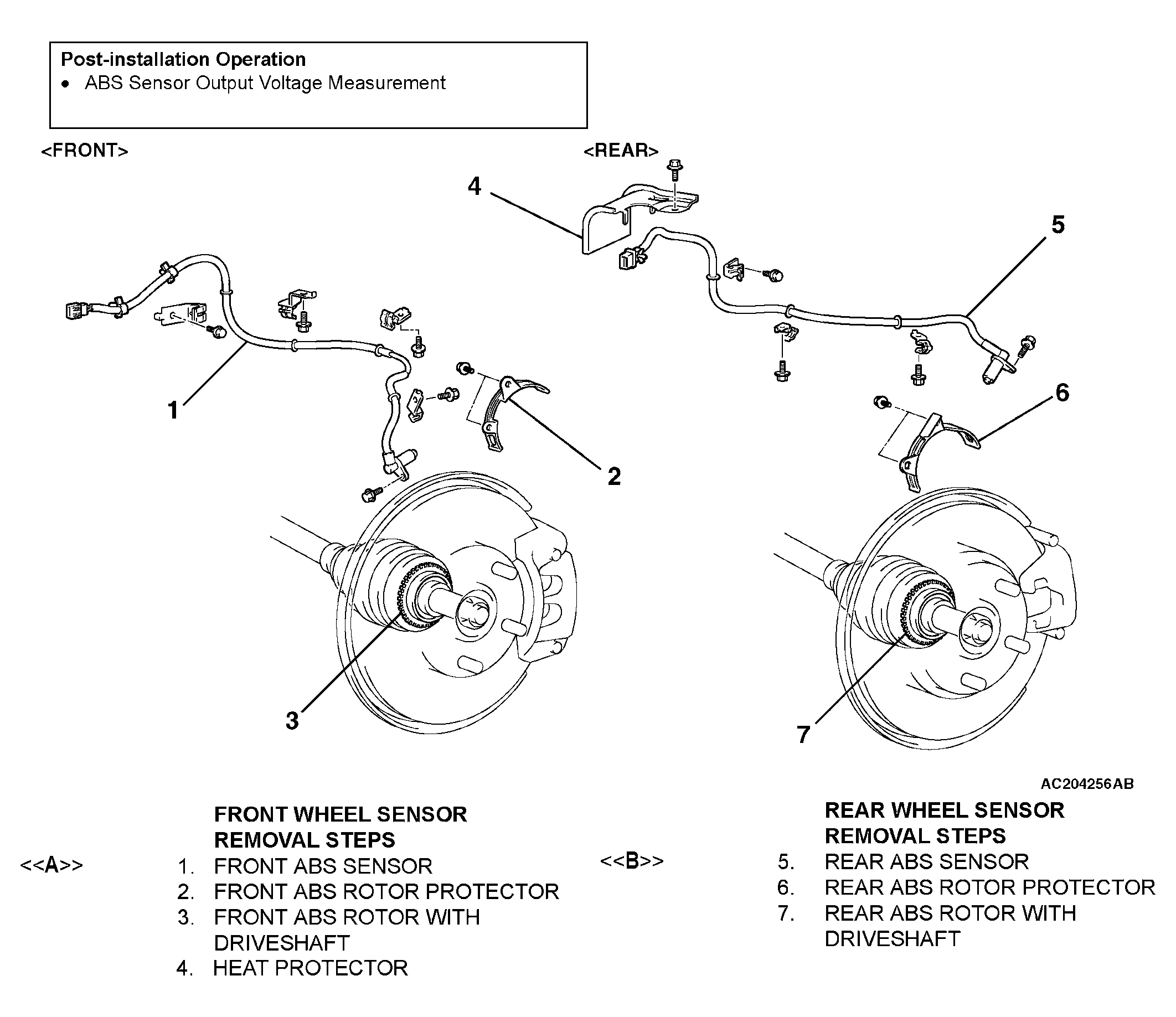

Fig 1: Removing/Installing Wheel Speed Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The front and rear ABS rotors are integrated with the drive shaft and cannot be disassembled.
