Removal And Installation: Notes

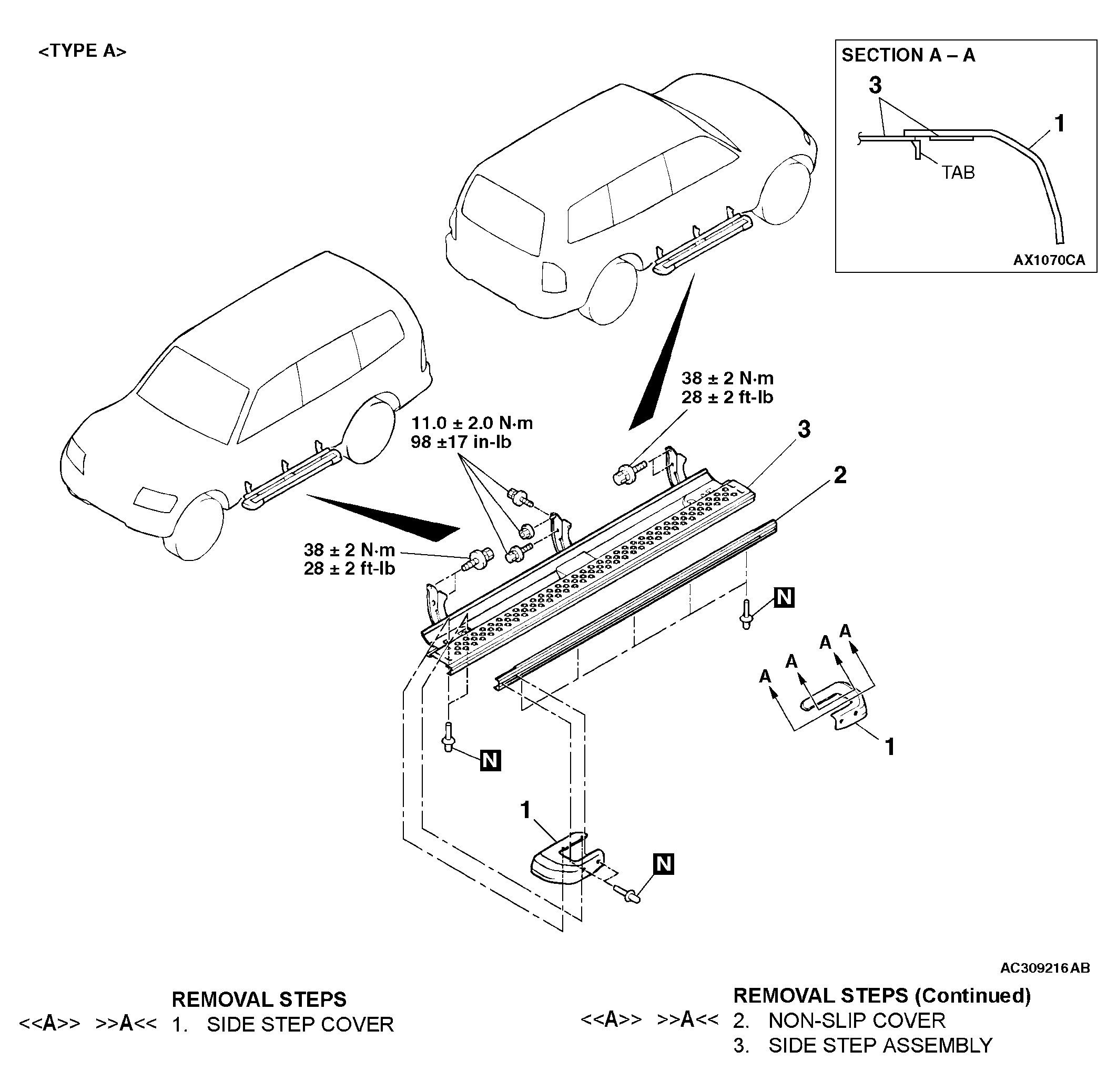

Fig 1: Removing/Installing Side Step (Type A)
G04267806Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

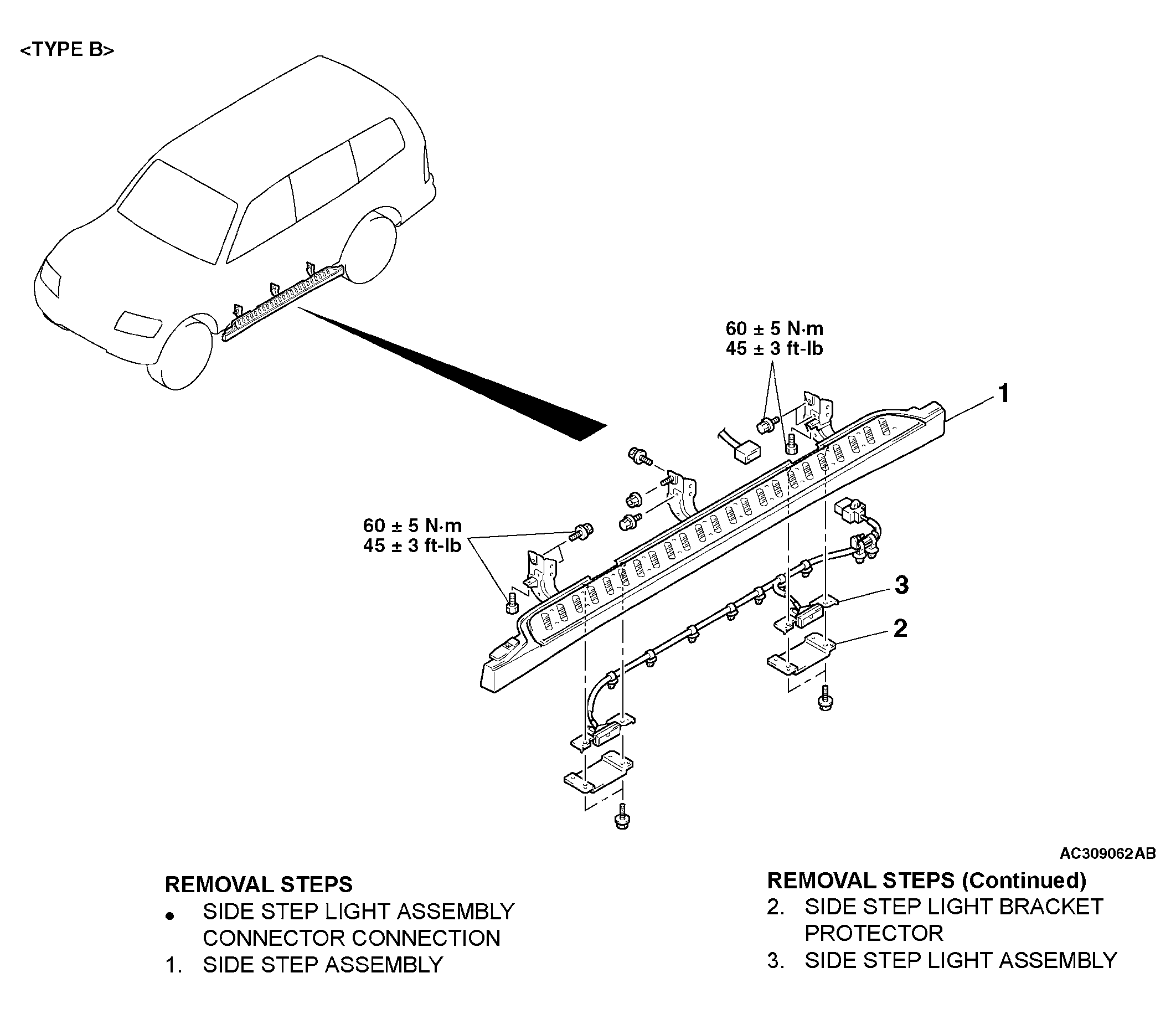

Fig 2: Removing/Installing Side Step (Type B)
G04267807Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
