Home >> Mitsubishi >> 2006 >> Montero >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Exterior >> Rear Bumper Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

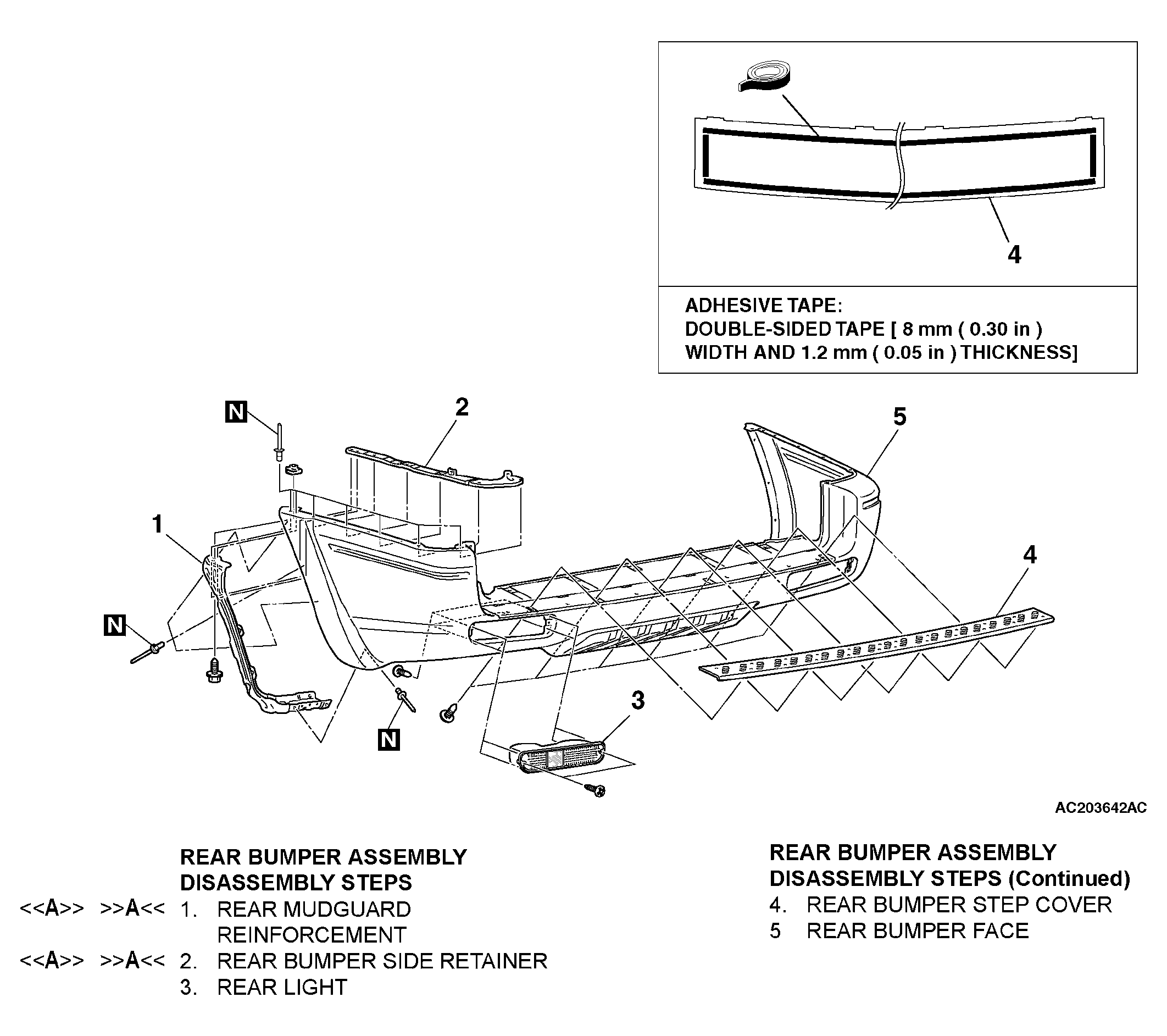

Fig 1: Disassembling/Assembling Rear Bumper Assembly
G04267786Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
