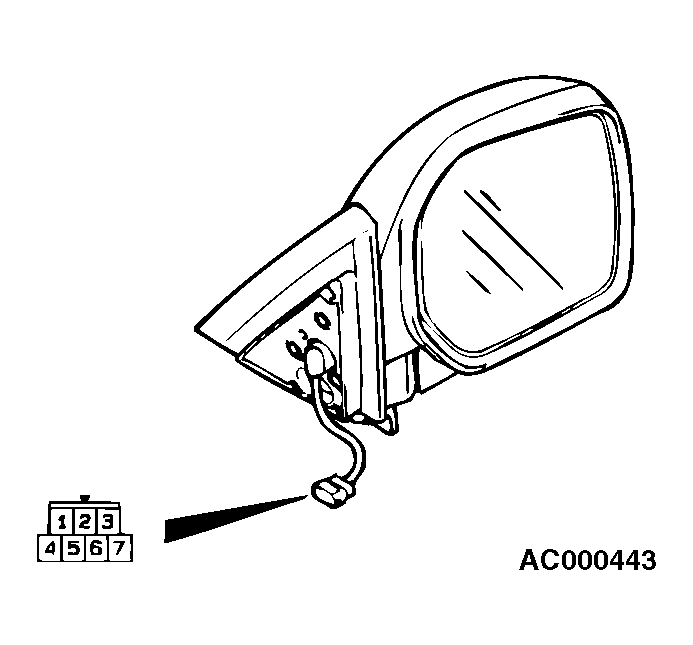

Remote Controlled Mirror Assembly Check
BATTERY CONNECTION & SPECIFIED CONDITION
| BATTERY CONNECTION |
SPECIFIED CONDITION |
- Connect terminal 6 to the negative battery terminal
- Connect terminal 4 to the positive battery terminal
|
Mirror glass should face upward |
- Connect terminal 4 to the negative battery terminal
- Connect terminal 6 to the positive battery terminal
|
Mirror glass should face downward |
- Connect terminal 5 to the negative battery terminal
- Connect terminal 6 to the positive battery terminal
|
Mirror glass should face to the right |
- Connect terminal 6 to the negative battery terminal
- Connect terminal 5 to the positive battery terminal
|
Mirror glass should face to the left |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
