Heating Element Function Check

For vehicles with heated door mirrors, check that there is continuity between terminals (3) and (7).

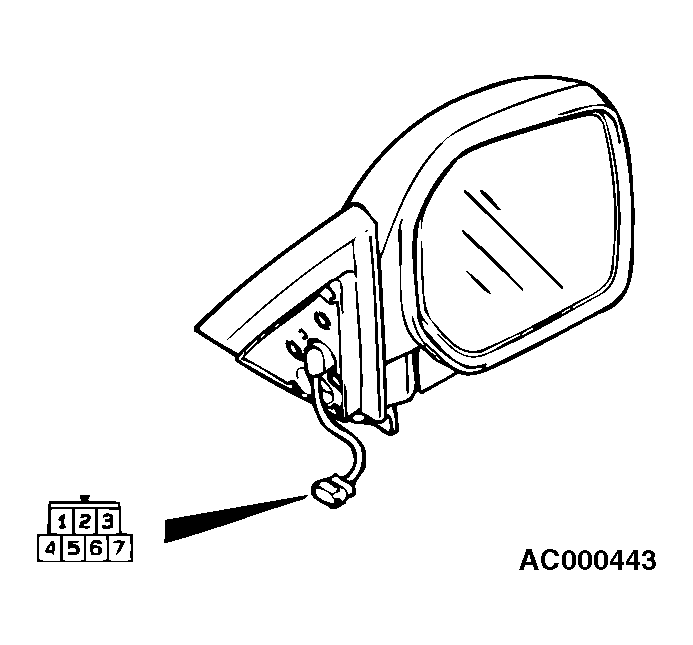

Fig 1: Identifying Remote Controlled Mirror Assembly Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
