Home >> Mitsubishi >> 2006 >> Montero >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Exterior >> Front Bumper Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

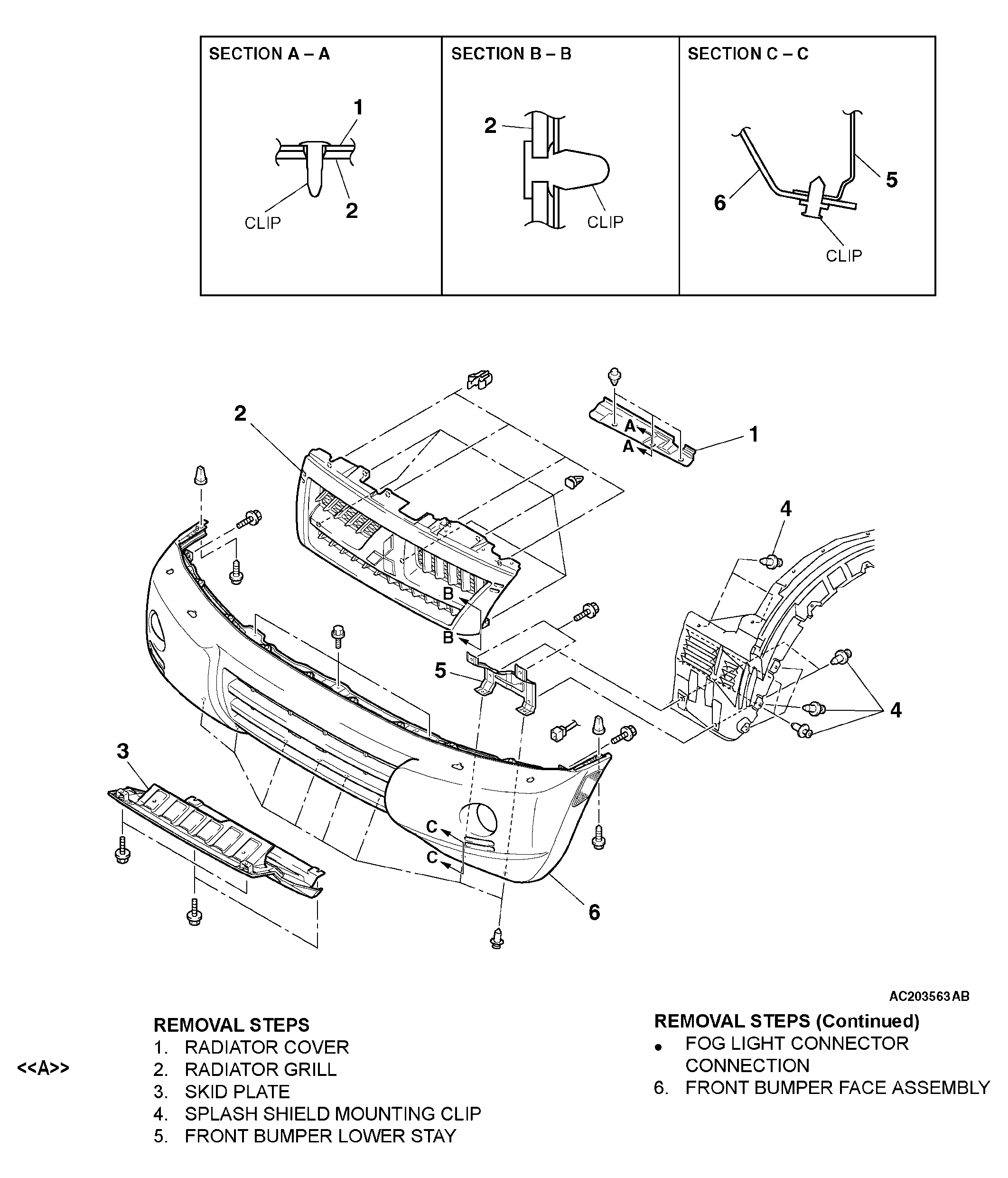

Fig 1: Removing/Installing Front Bumper Assembly
G04267781Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
