Removal And Installation: Notes

WARNING:
  • Before removal of the air bag module and clock spring, refer to SRS SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .
  • When removing and installing the steering wheel, do not let it bump against the air bag module.

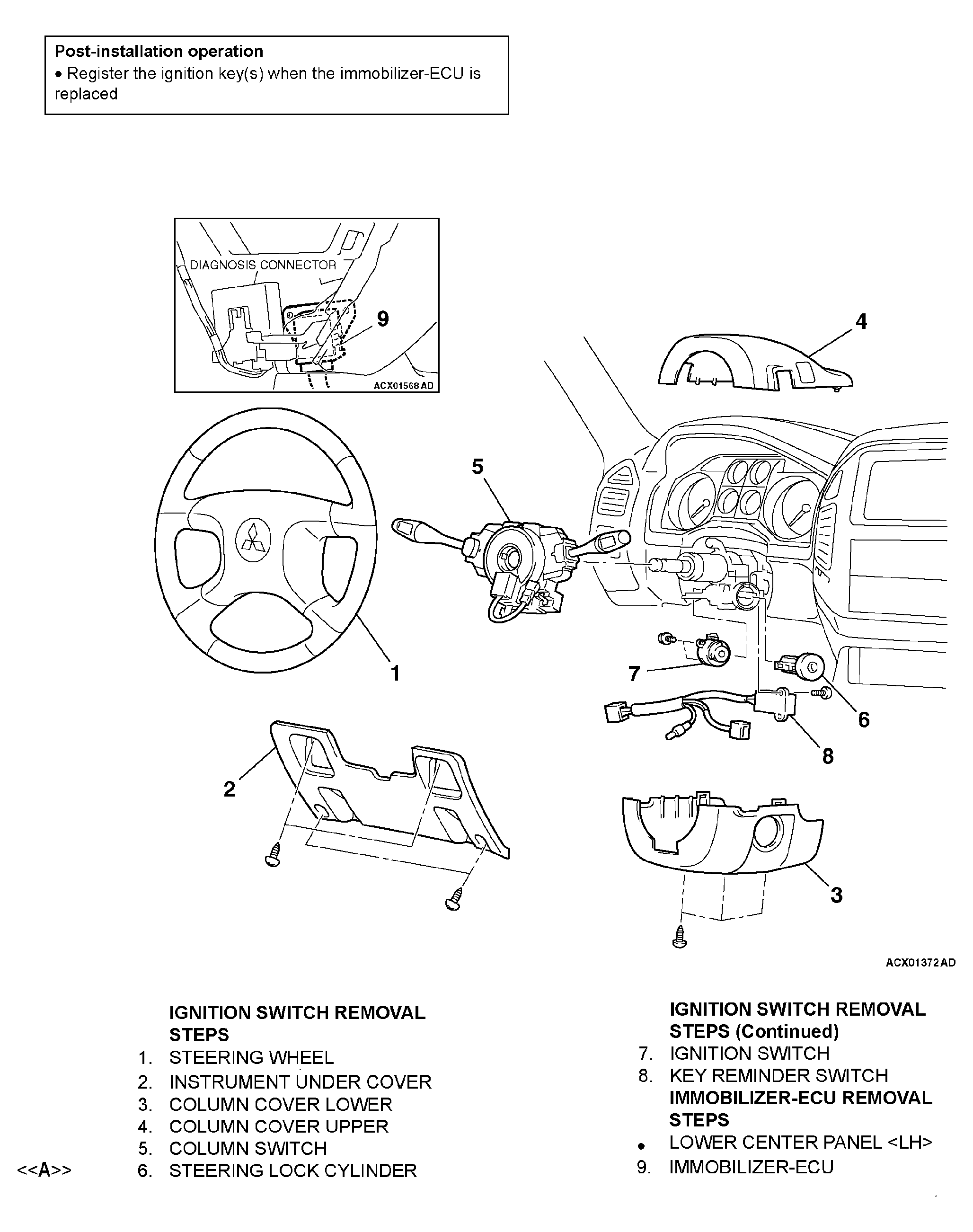

    Fig 1: Removing/Installing Ignition Switch Components
    G04268368Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
