Ignition Switch Less Continuity Check

Disconnect ignition switch connector without removing the ignition switch and steering lock cylinder. Then check the continuity.

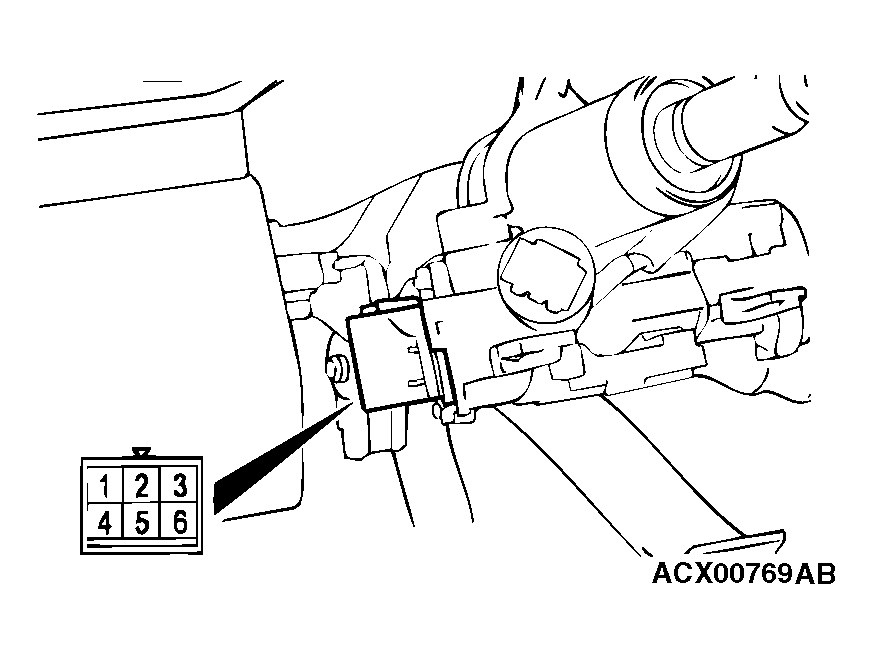

Fig 1: Disconnecting Ignition Switch Connector
G04268370Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SWITCH POSITION & TESTER CONNECTION SPECIFICATION

SWITCH POSITION TESTER CONNECTION SPECIFIED CONNECTION
"LOCK" (OFF) 1 - 2, 1 - 3, 1 - 4, 1 - 5, 1 - 6, 2 - 4, 2 - 5, 2 - 6, 4 - 5, 4 - 6 Open circuit
"ACC" 1 - 6 Less than 2 ohms
"ON" 1 - 2, 1 - 4, 1 - 6, 2 - 4, 2 - 6, 4 - 6 Less than 2 ohms
"START" 1 - 2, 1 - 4, 1 - 5, 2 - 4, 2 - 5, 4 - 5 Less than 2 ohms
