Vehicles Speed Sensor Check

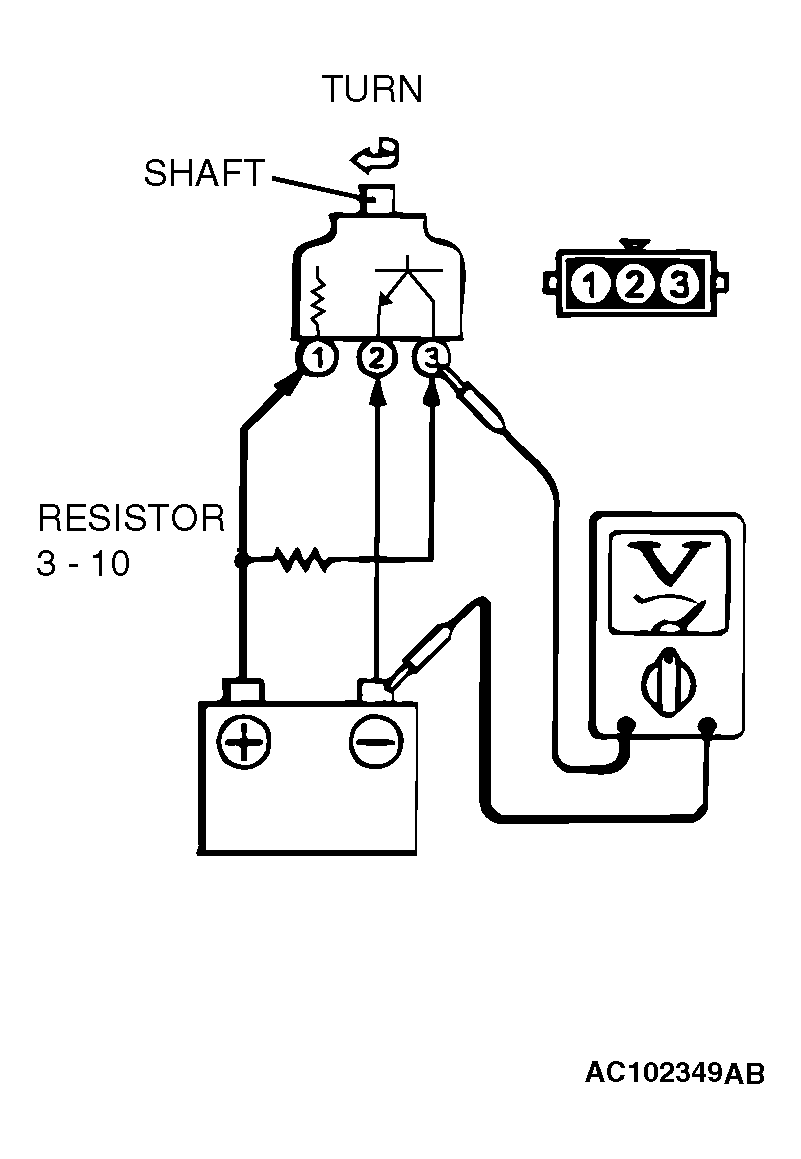

- Remove the vehicle speed sensor and connect a 3 - 10 kilo ohms resistor as shown in the illustration.
- Turn the shaft of the vehicle speed sensor and check that there is voltage between terminals 2 and 3. (1 turn = 4 pulses)
- If within the standard value, the vehicle speed sensor is OK. If not within the standard value, replace the vehicle speed sensor.
