DTC 22: Stoplight Switch System: Notes

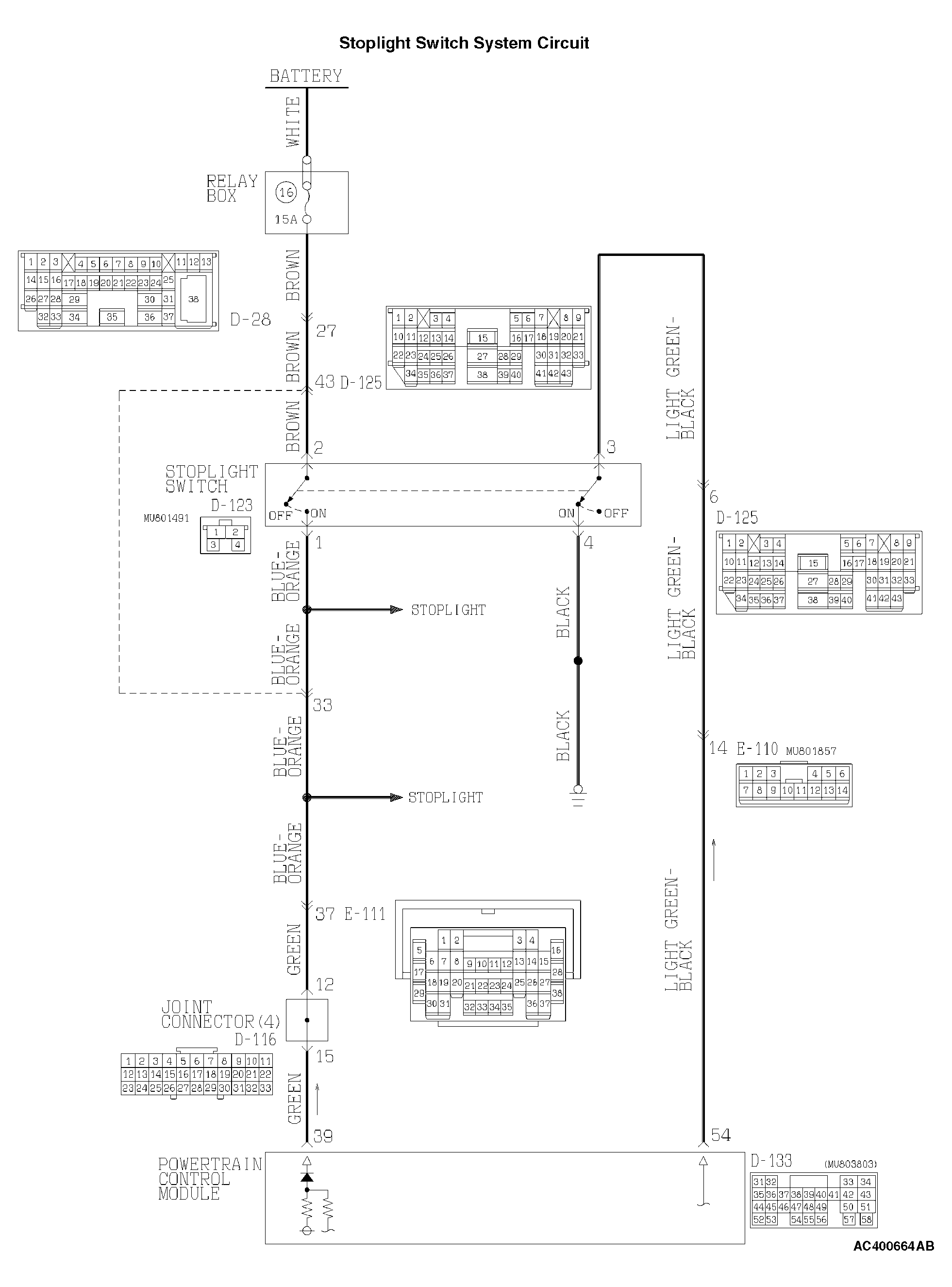

Fig 1: Stoplight Switch System Circuit (1 Of 2)
G04265171Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Stoplight Switch System Circuit (2 Of 2)
G04265172Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
