>>E<< Lock Pin Installation

Drive the lock pin in from the direction shown in the illustration.

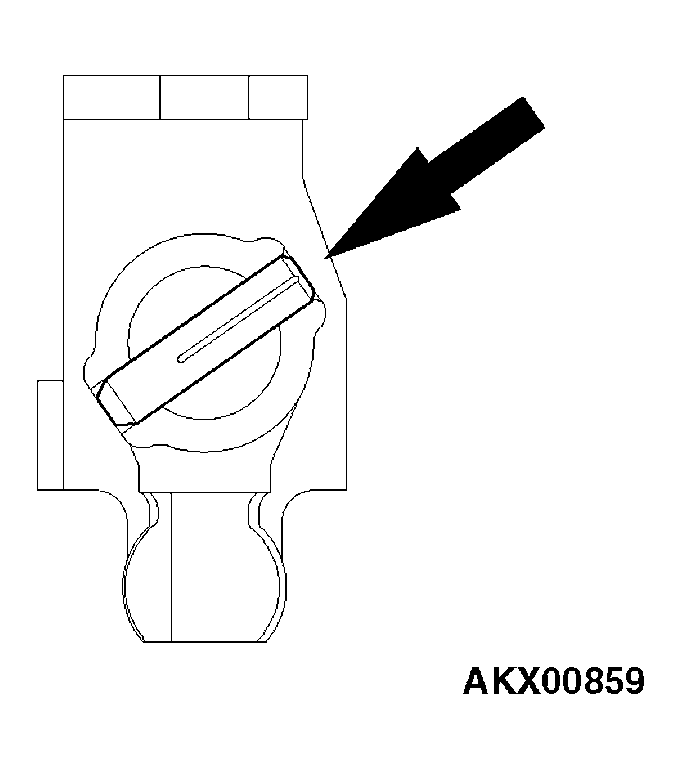

Fig 1: Installing Lock Pin

G04275891

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
