Power Steering - Lancer Evolution
>>
Power Steering Oil Pump Assembly
>>
Disassembly And Assembly
Disassembly And Assembly

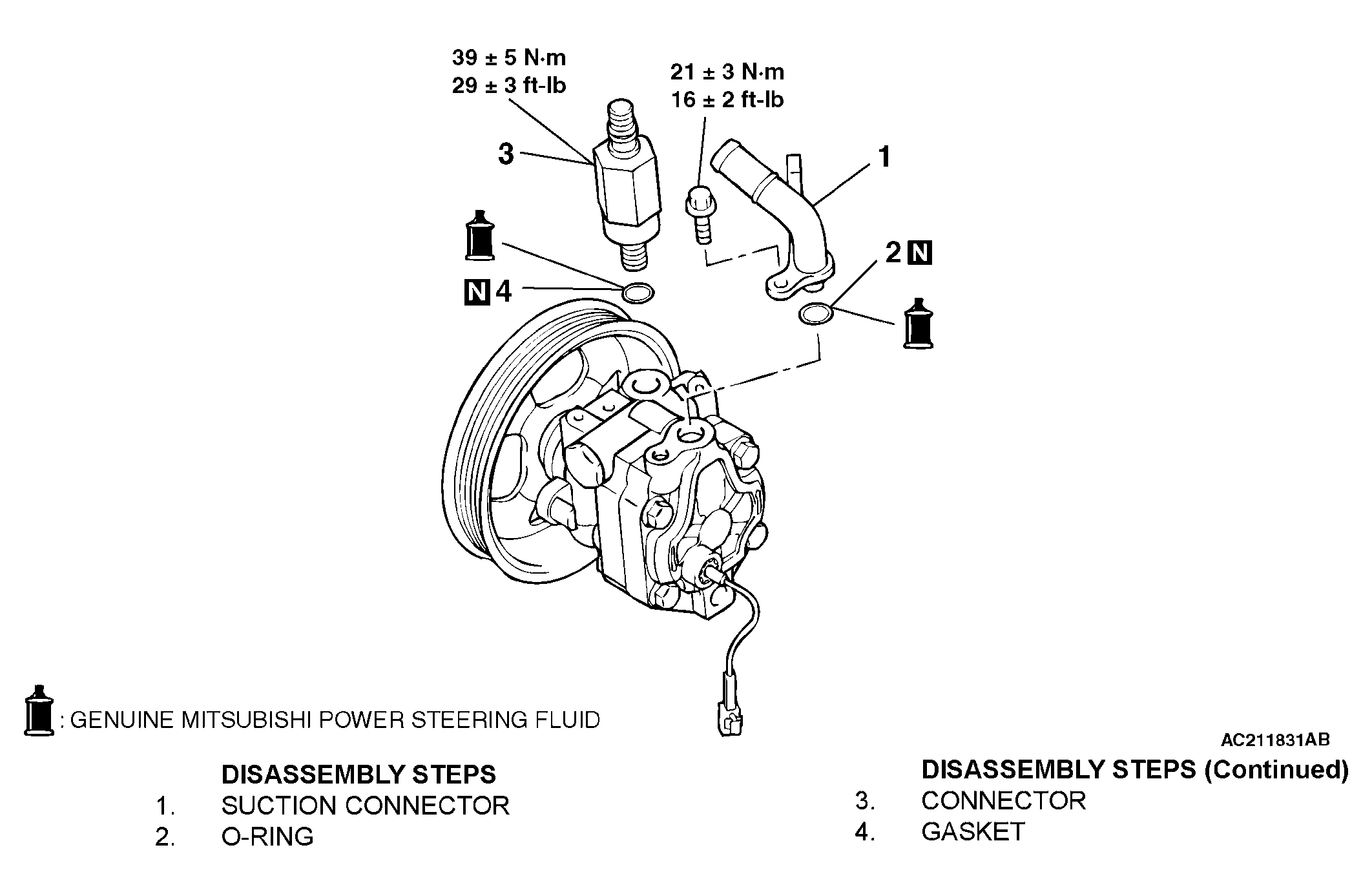

Fig 1: Dissembling And Assembling Power Steering Oil Pump Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
