<< C >> Front Axle No.1 CROSSMEMBER Assembly Removal

Retain the crossmember with a transmission jack, and then remove the crossmember mounting bolt.

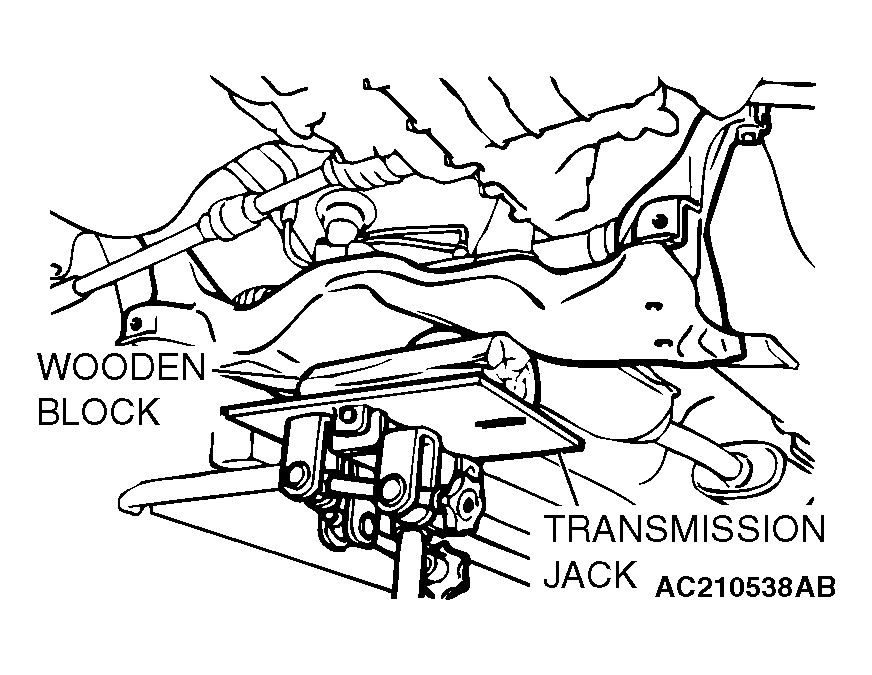

Fig 1: Supporting Crossmember With Transmission Jack
G04297606Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
