Construction Diagram

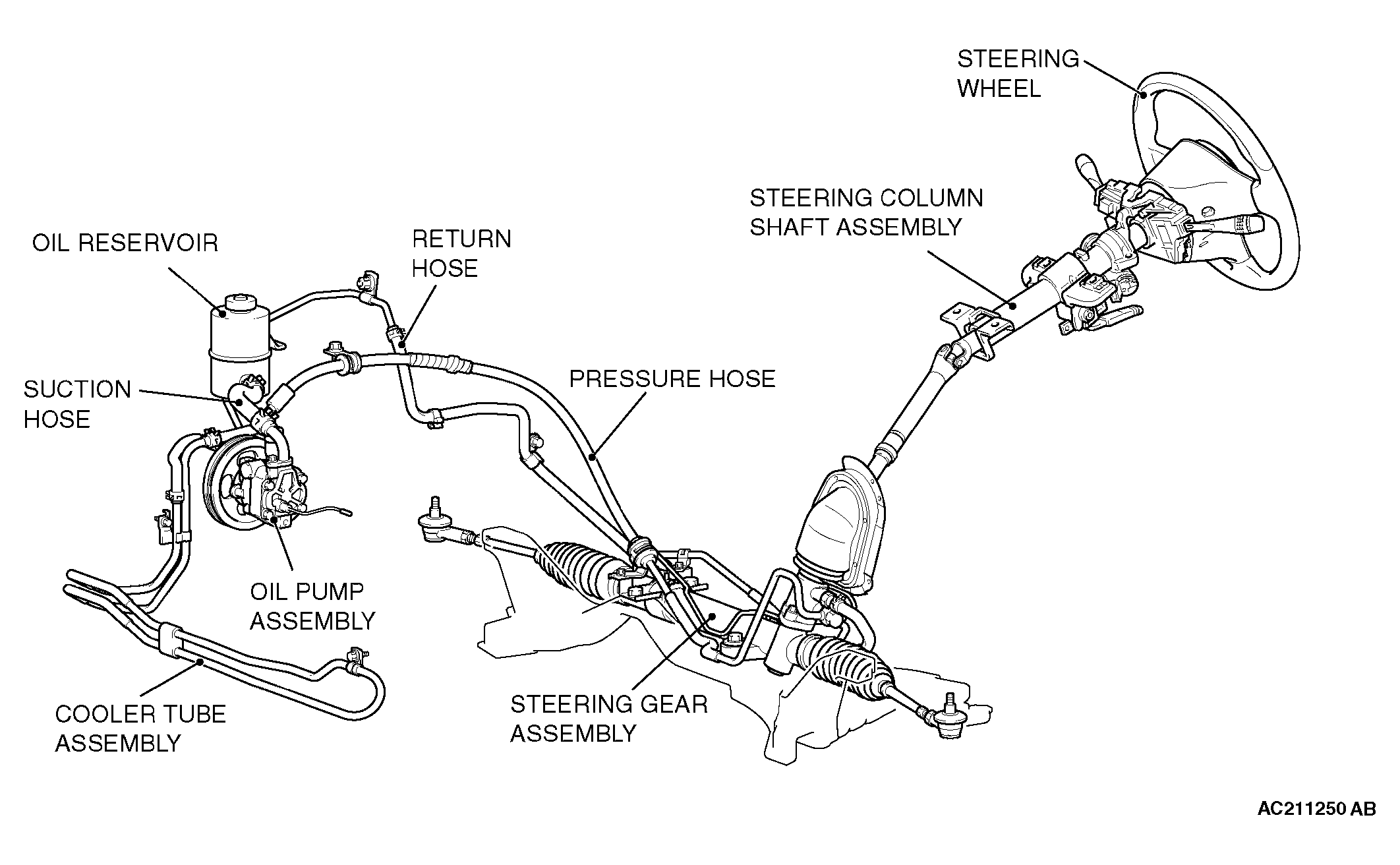

Fig 1: Power Steering Construction Diagram

G04297551

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
