DTC 44: SRS Warning Light Drive Circuit System Fault 2: Notes

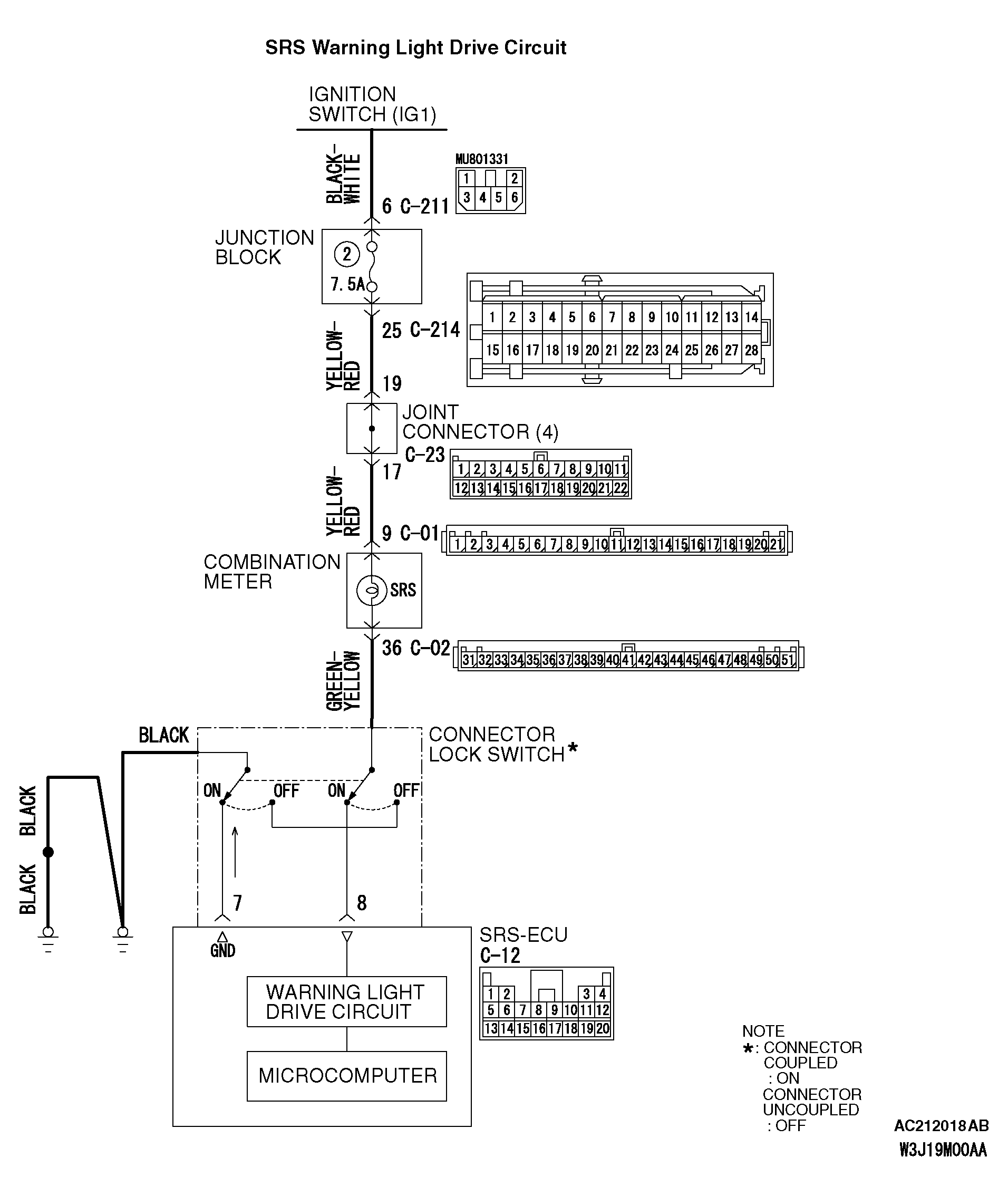

Fig 1: SRS Warning Light Drive Circuit Diagram

G04298066

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
