DTC 43: SRS Warning Light Drive Circuit System Fault 1 (Light does not Switch Off.): Notes

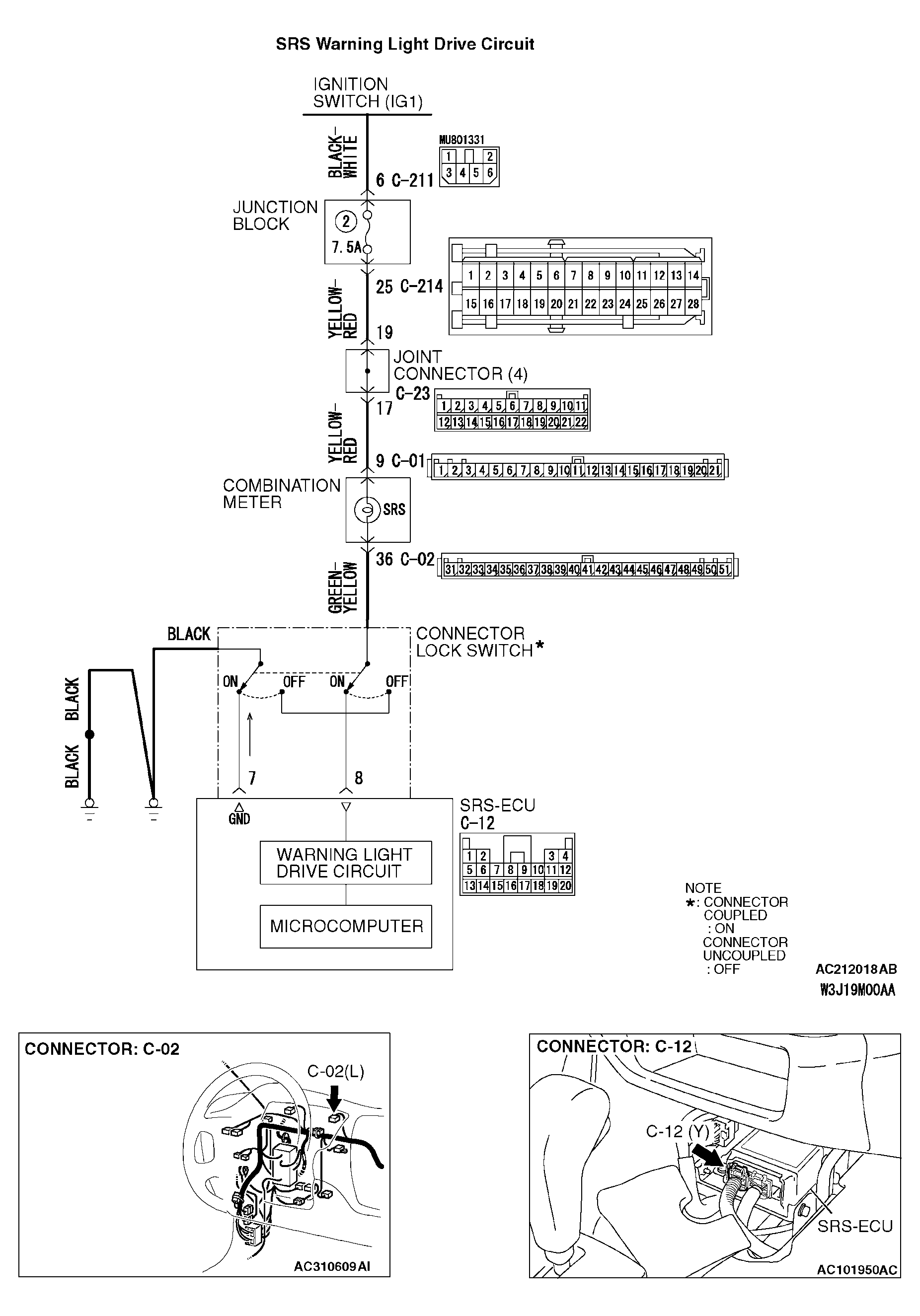

Fig 1: SRS Warning Light Drive Circuit Diagram

G04298059

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
