DTC 25: Passenger's (Front) Air Bag Module (Squib) System Fault 2 (Open in the Squib Circuit): Notes

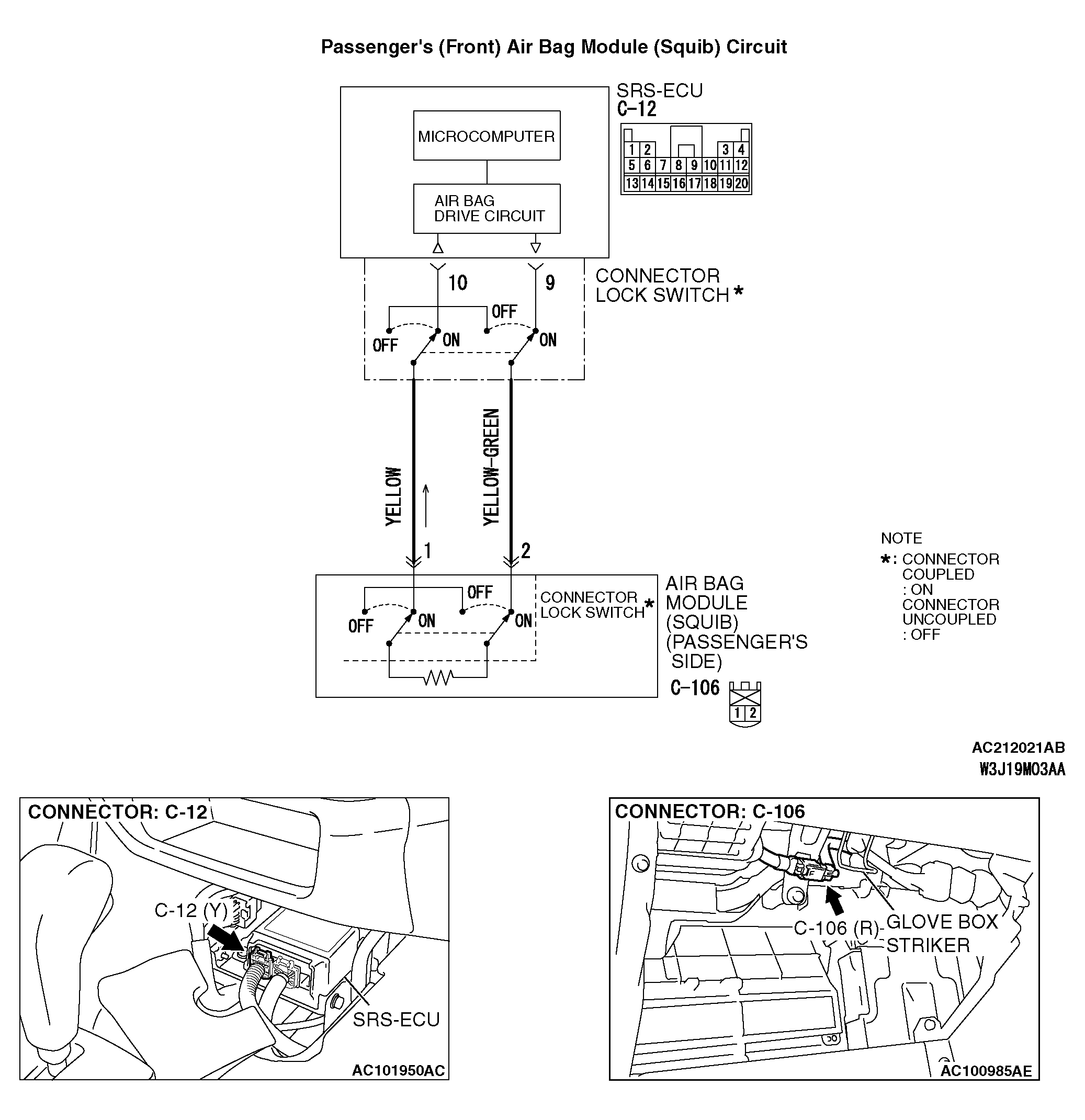

Fig 1: Passenger's (Front) Air Bag Module (Squib) Circuit Diagram
G04297946Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
