Supplemental Restraint System - Lancer Evolution: General Description: Schematic

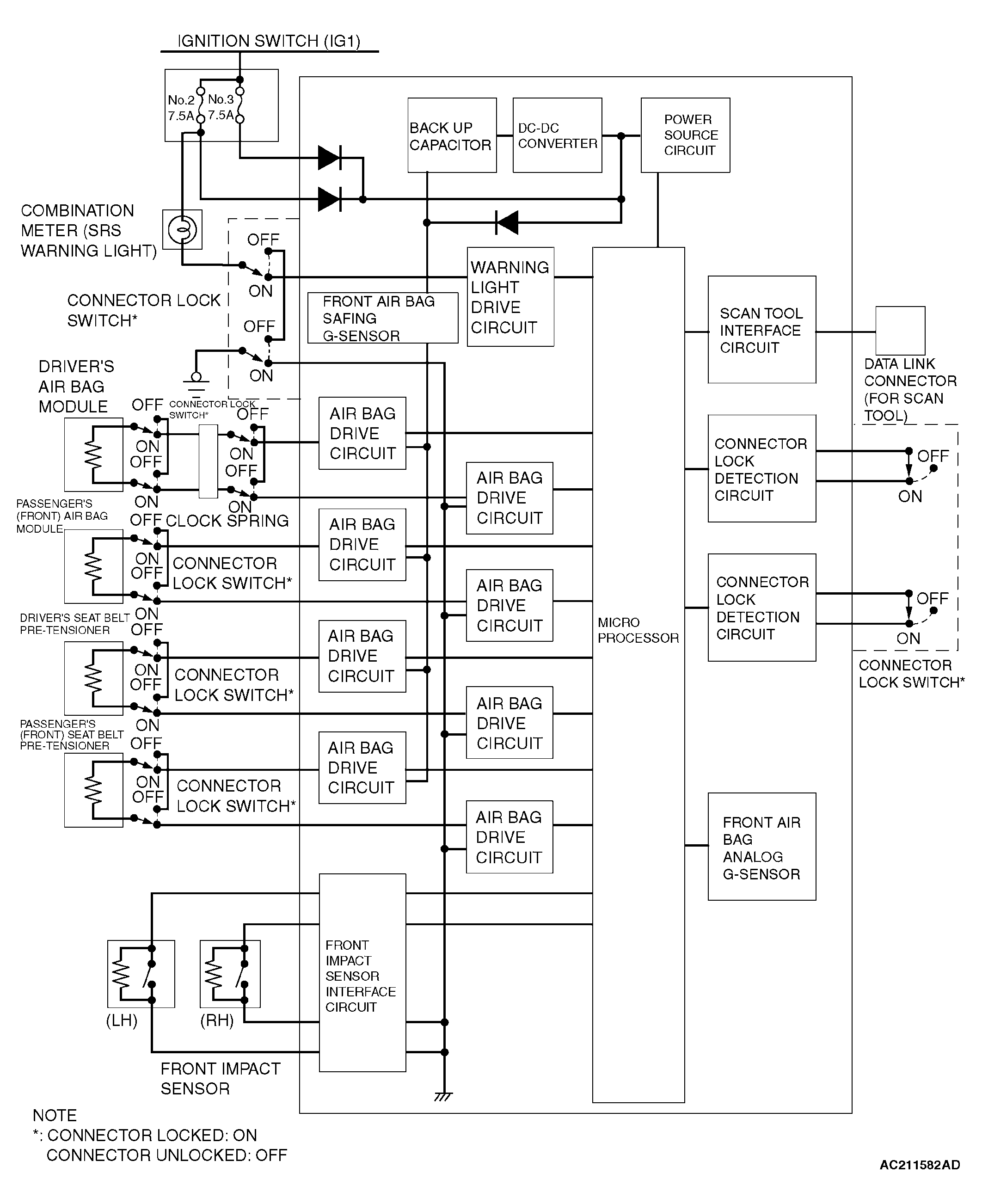

Fig 1: Schematic Diagram

G04297882

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
