Removal And Installation: Notes

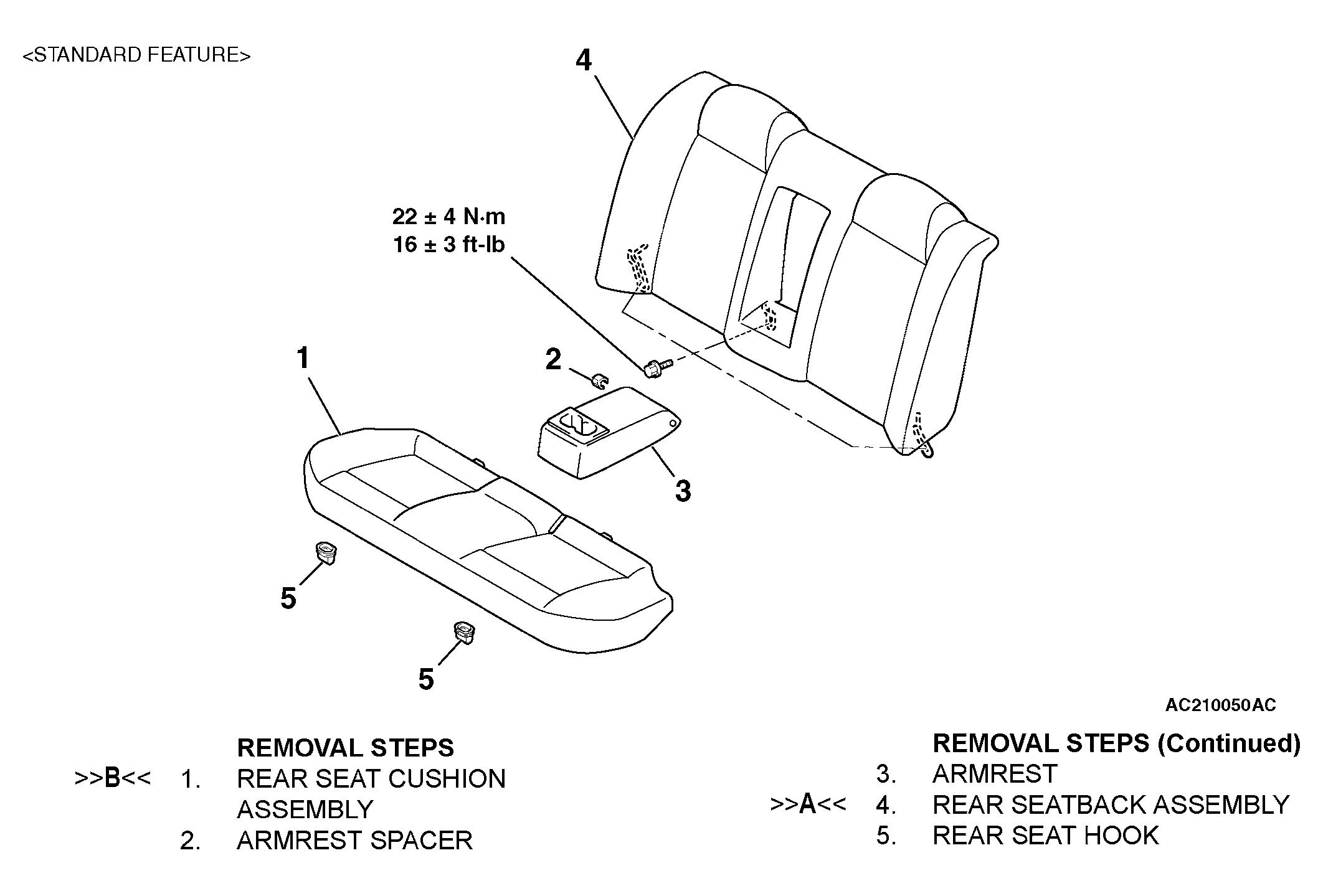

Fig 1: Removing/Installing Rear Seat Assembly (1 Of 2)
G04297869Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

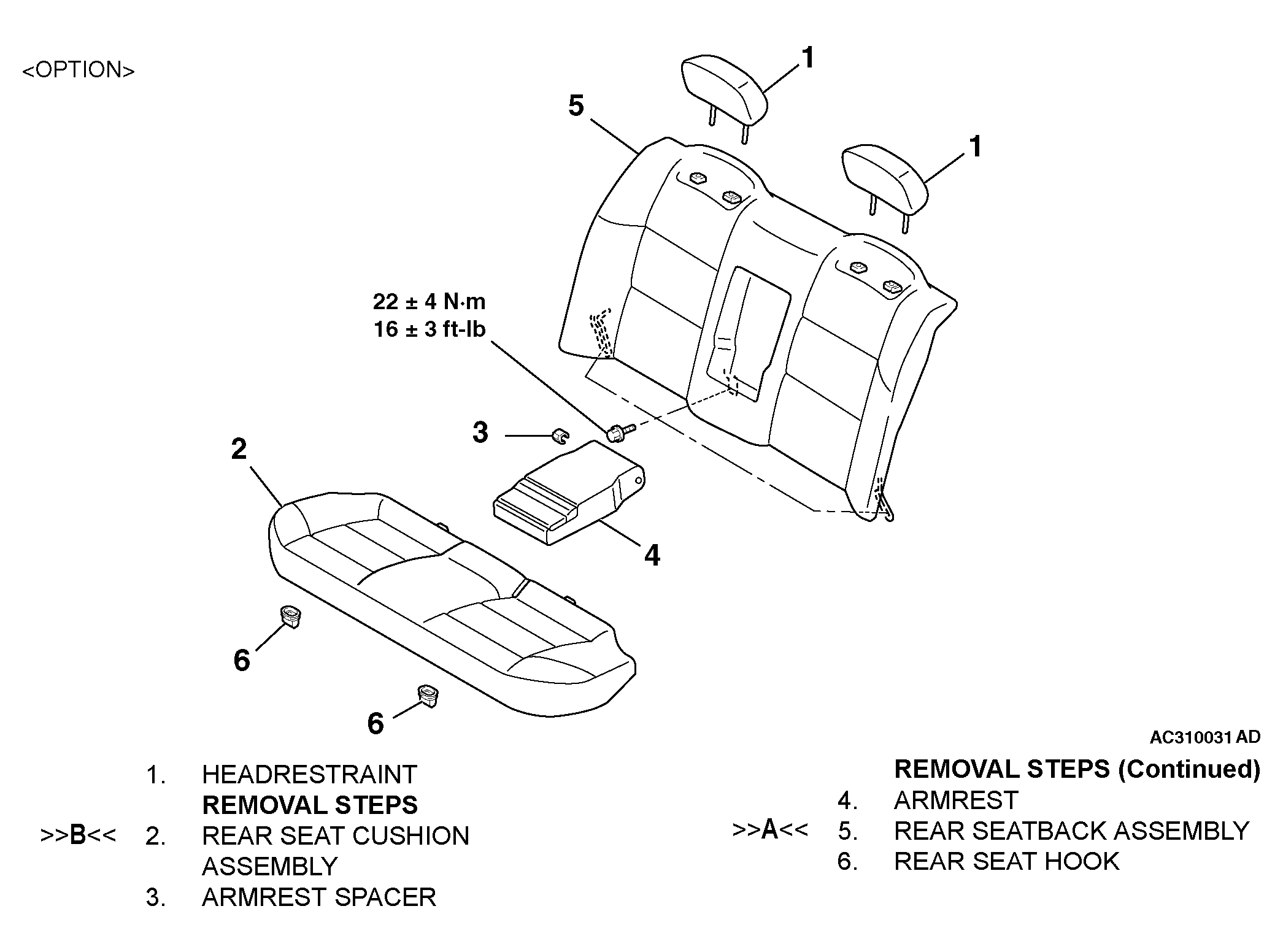

Fig 2: Removing/Installing Rear Seat Assembly (2 Of 2)
G04297870Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
