Interior - Lancer Evolution
>>
Front Floor Console Assembly
>>
Removal And Installation
Removal And Installation

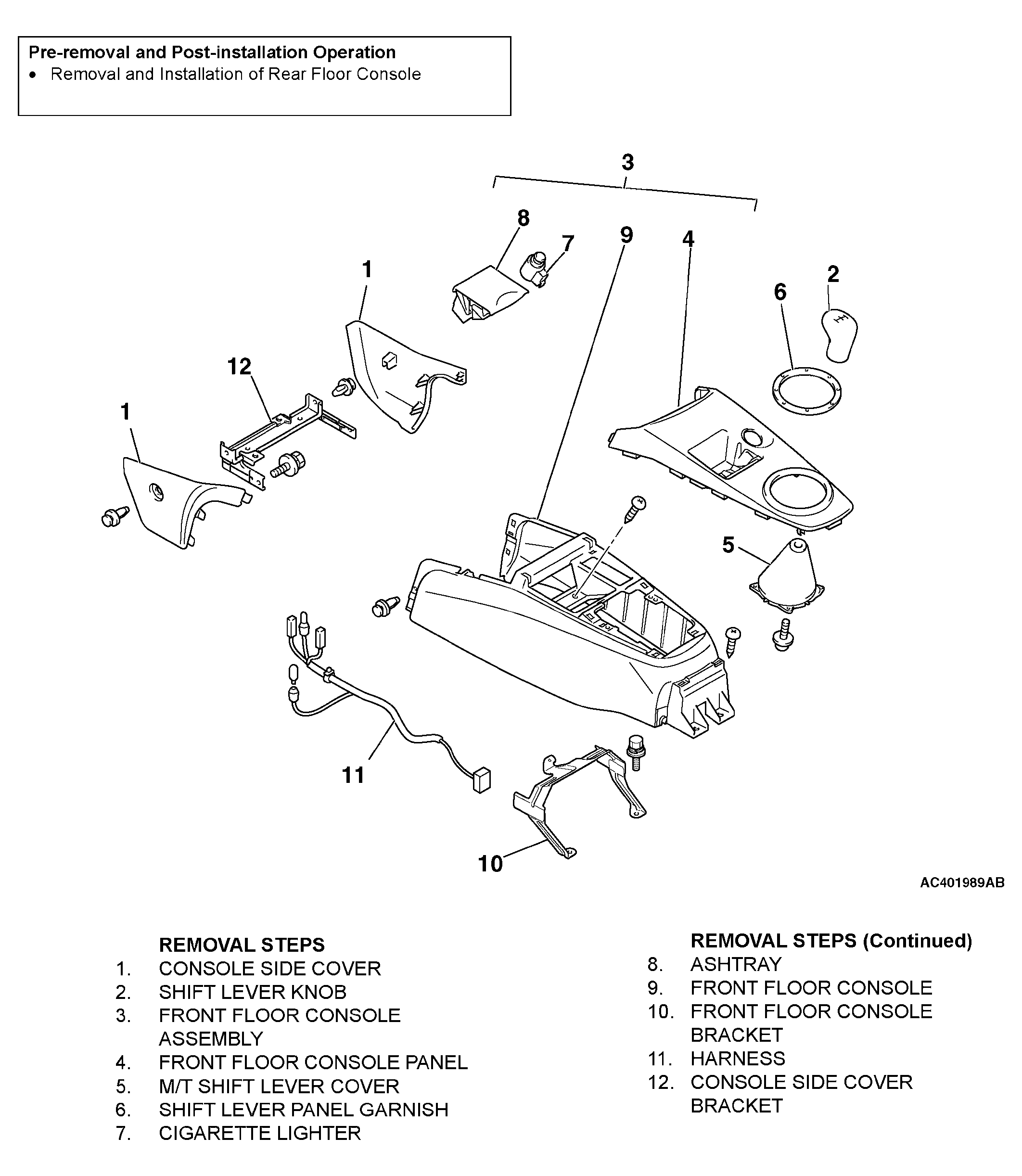

Fig 1: Exploded View Of Front Floor Console Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
