Section 6 (Interior - Lancer)
>>
Instrument Panel Assembly
>>
Disassembly And Assembly
Disassembly And Assembly
WARNING:
This page is about a different variant/trim than selected.

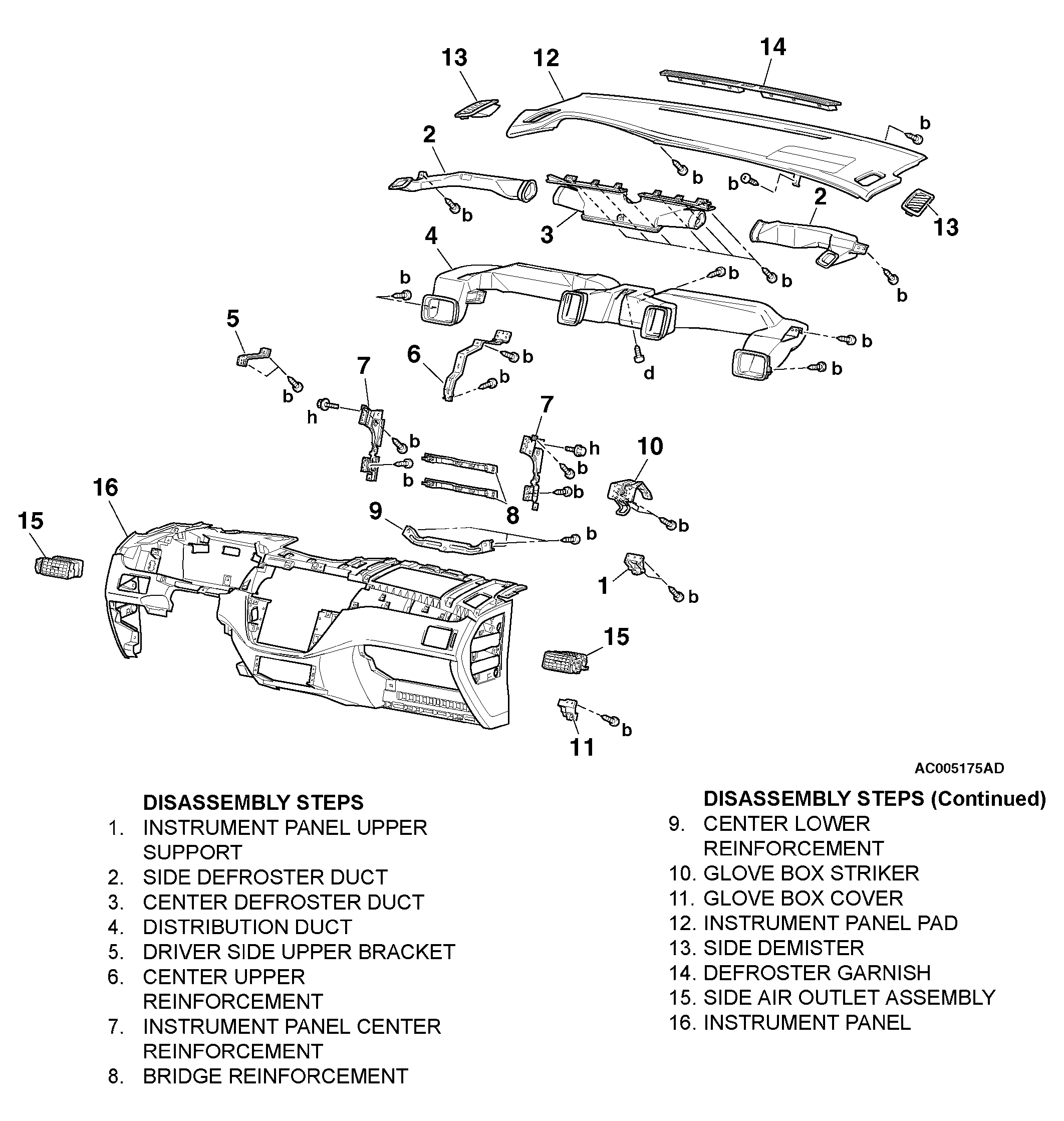

Fig 1: Disassembling View Of Instrument Panels
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
