Removal And Installation < 2.4L Engine >: Notes

WARNING: This page is about a different variant/trim than selected.

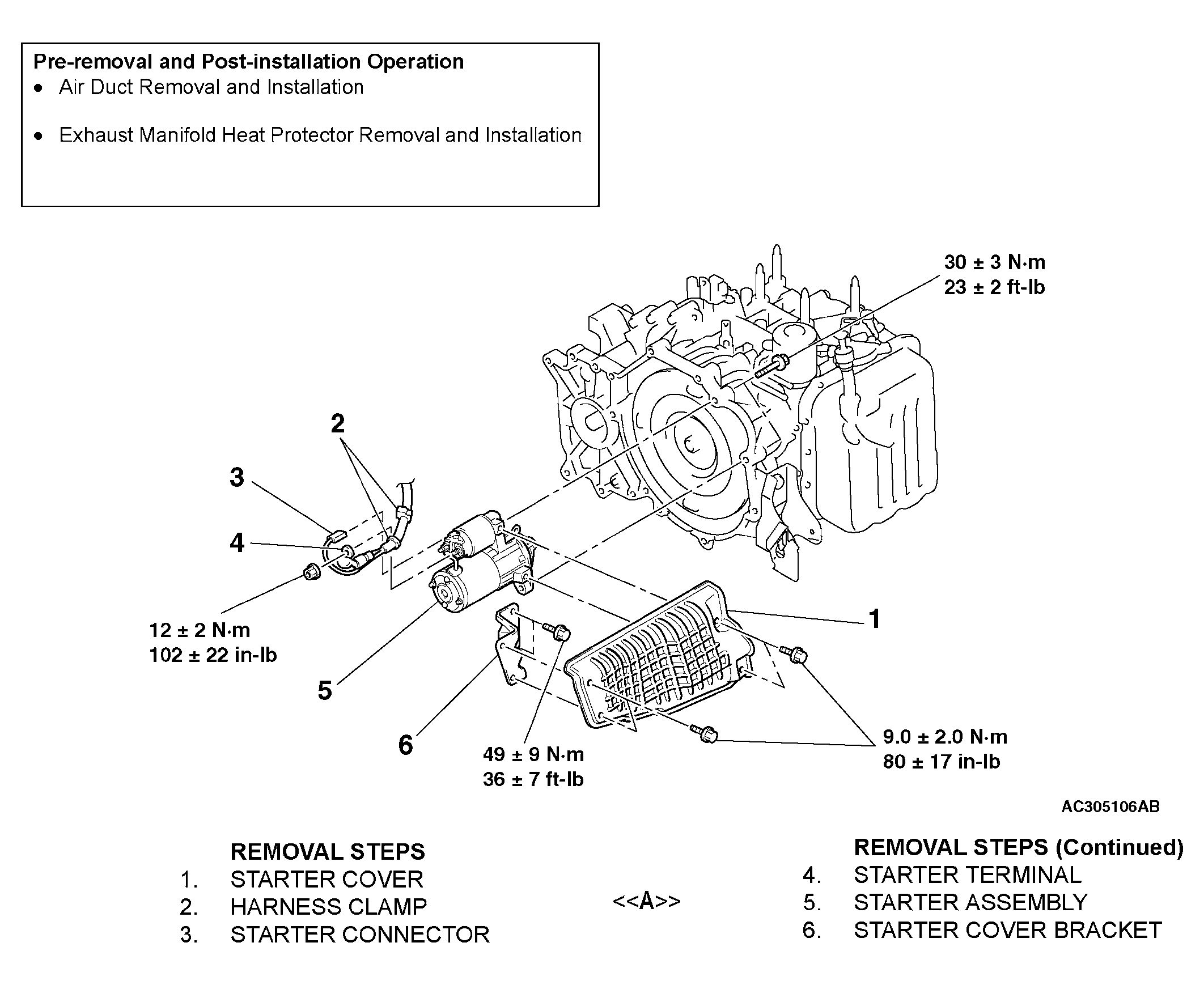

Fig 1: Removing/Installing (2.4L Engine) Starter Motor Assembly
G04271531Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
