Emission Control - Lancer Evolution
>>
Exhaust Gas RECIRCULATION (EGR) System
>>
General Description (Exhaust Gas RECIRCULATION System)
>>
System Diagram
System Diagram

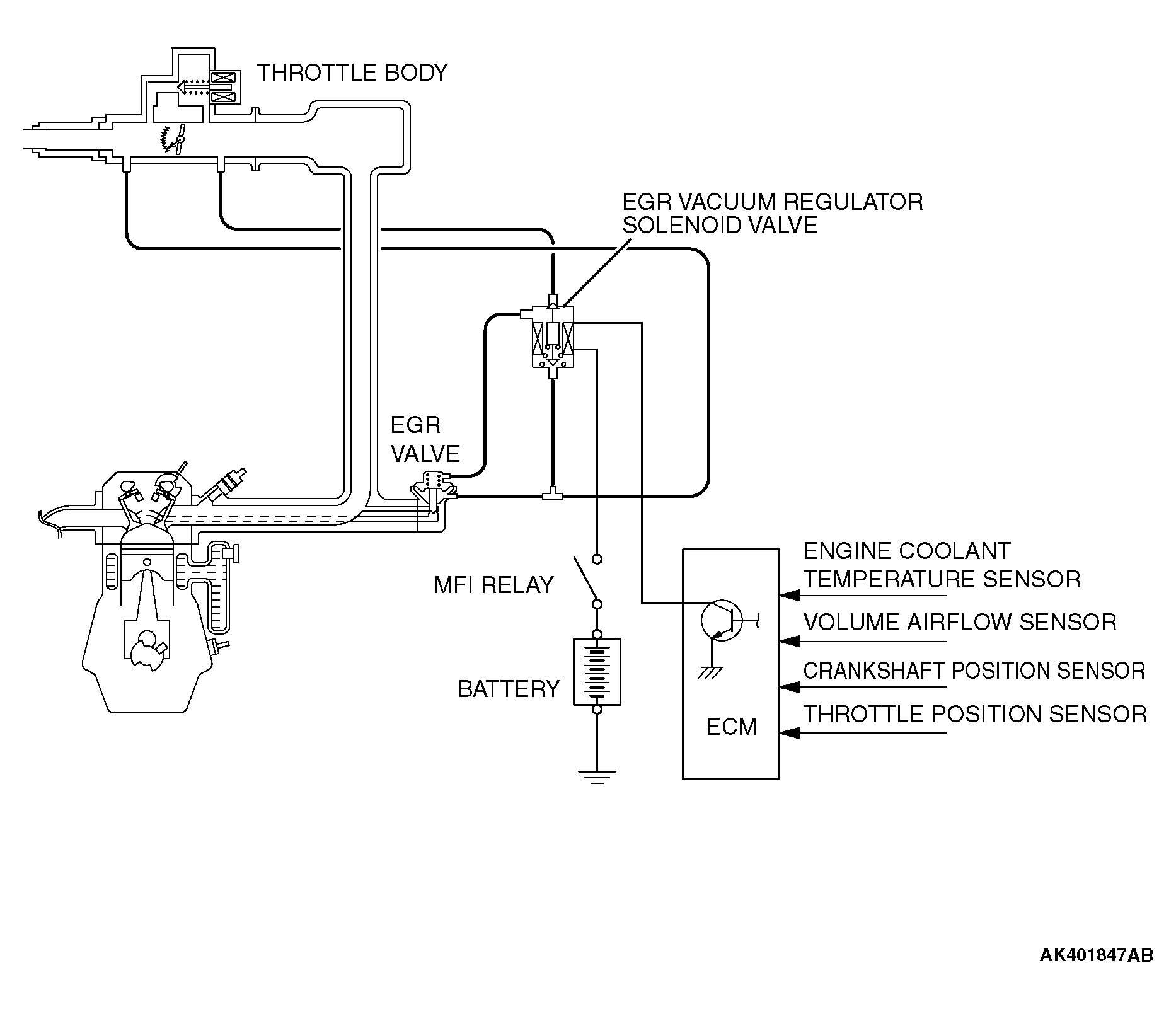

Fig 1: Exhaust Gas Recirculation System Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
