Removal And Installation: Notes

CAUTION: If the vehicle is equipped with the Brembo™ disc brake, during maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.

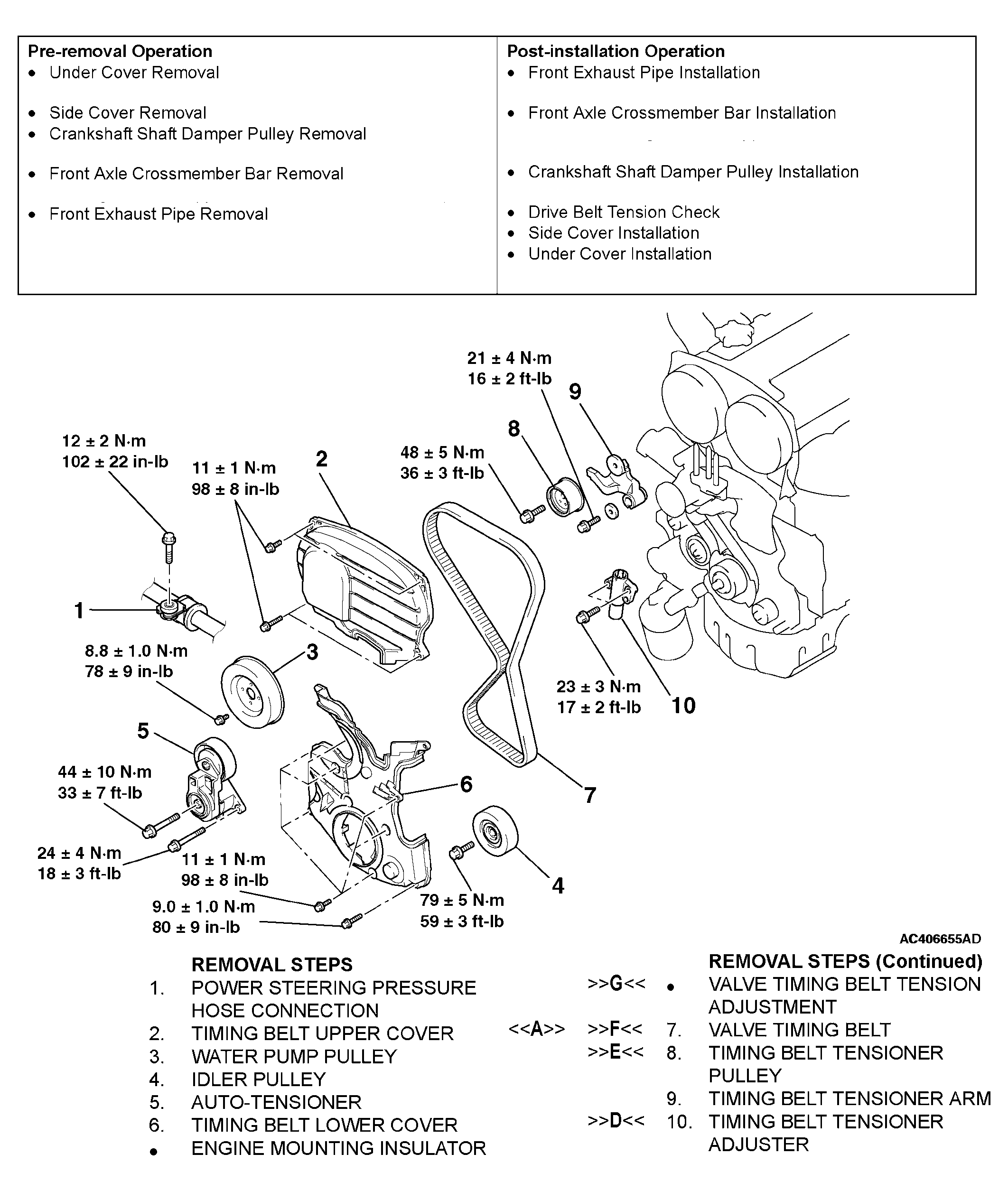

Fig 1: Removing And Installing Of Timing Belt (1 Of 2)
G04294041Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

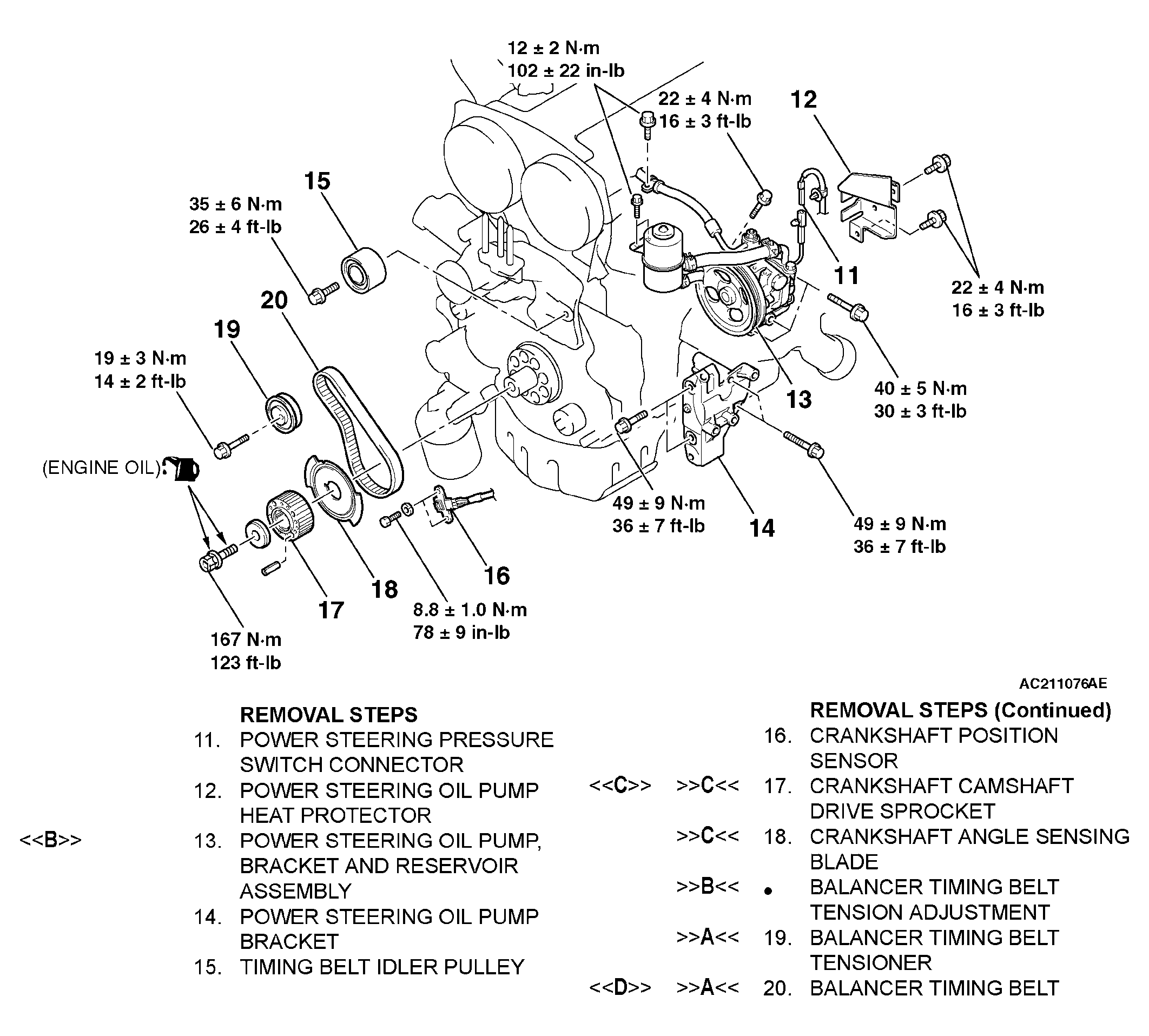

Fig 2: Removing And Installing Of Timing Belt (2 Of 2)
G04294042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
