Home >> Mitsubishi >> 2006 >> Lancer Evolution >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> On-Vehicle Service - Lancer Evolution >> Oil Pan >> Removal And Installation >> Notes

Removal And Installation: Notes

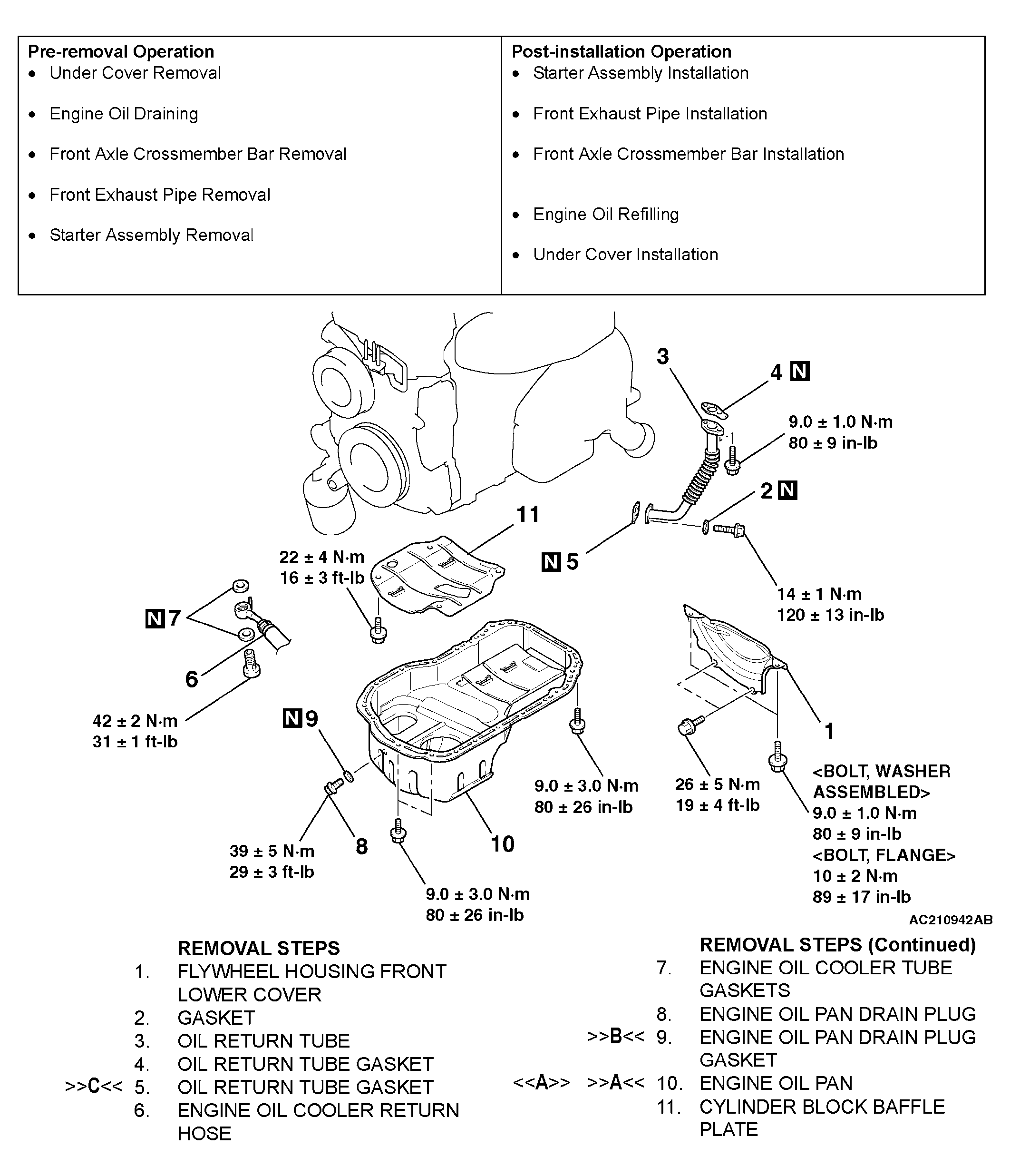

Fig 1: Removing And Installing Of Oil Pan

G04294020

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998727: Oil Pan FIPG cutter
