Removal And Installation: Notes

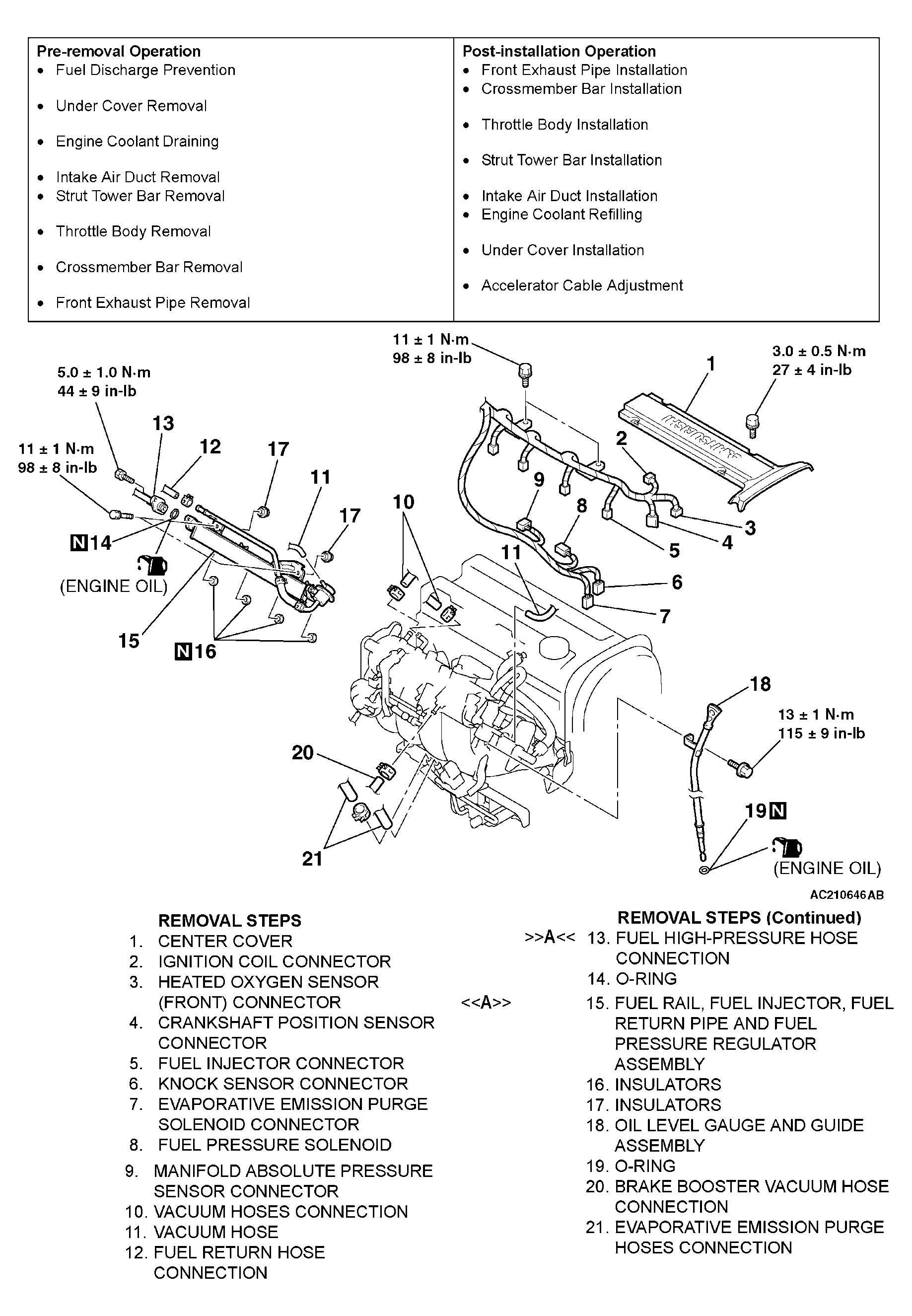

Fig 1: Removing/Installing Intake Manifold (1 Of 2)
G04296050Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

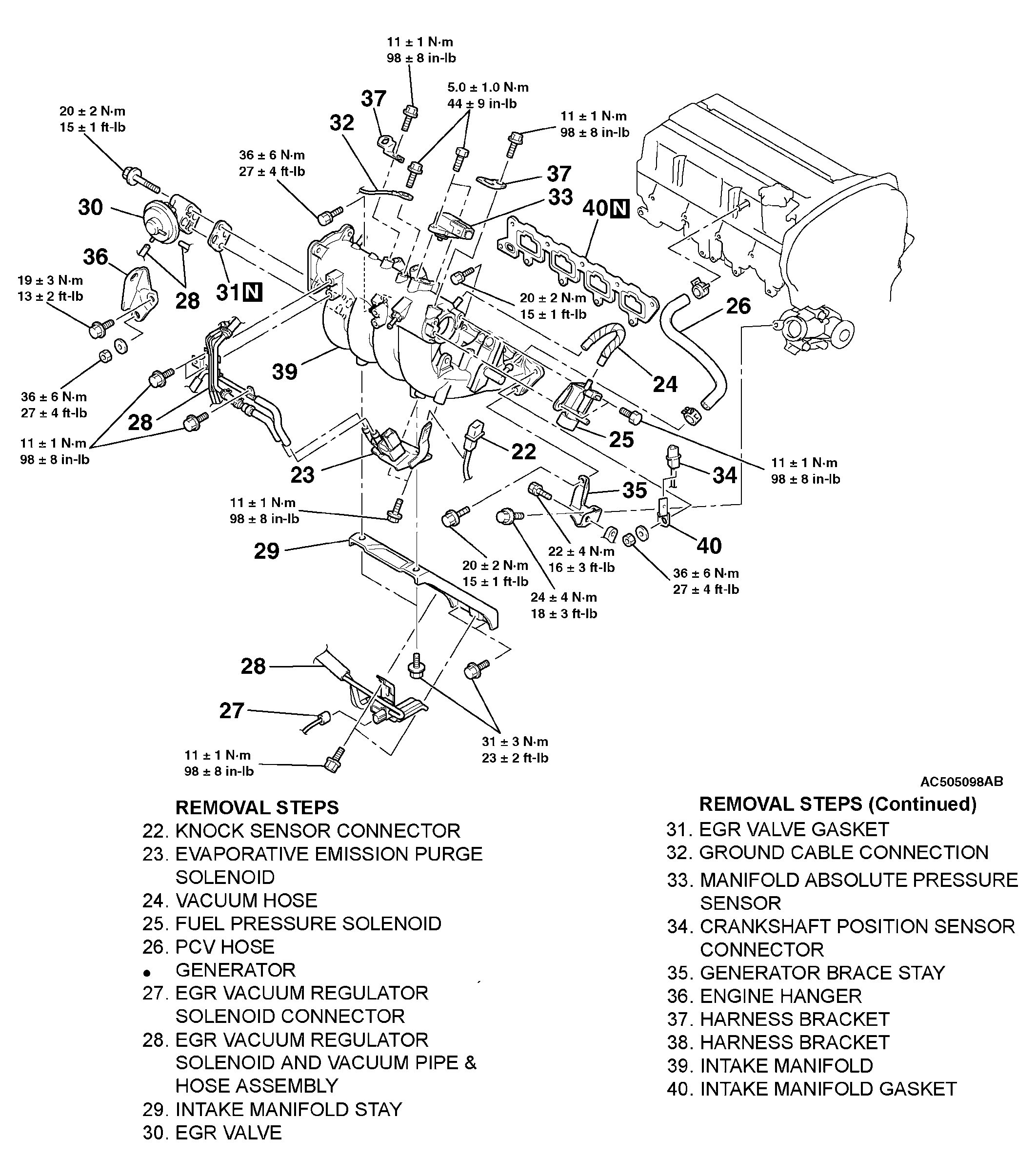

Fig 2: Removing/Installing Intake Manifold (2 Of 2)
G04296051Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
