Inspection (Disassembly And Assembly): Brush

  1. Measure the length of the protrusion of the brush. Replace the brush if the protrusion length is shorter than the limit.

    Limit: 2 mm minimum

  2. Unsolder the lead of the brush. The brush will come out, ready for removal.

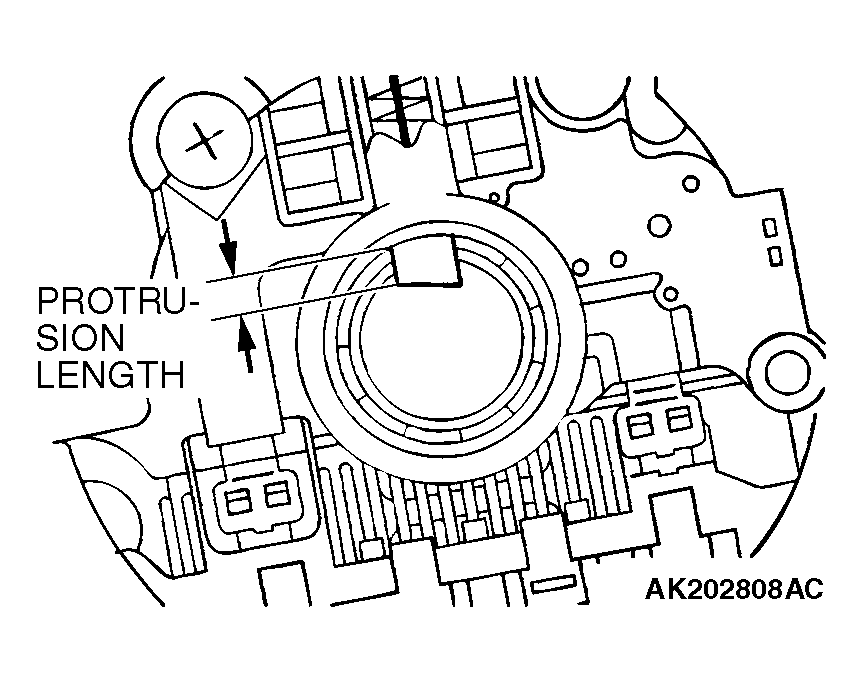

    Fig 1: Measure Length Of Protrusion Of Brush
    G04296097Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Install a new brush by pushing it into the holder as shown in the drawing and soldering the lead.

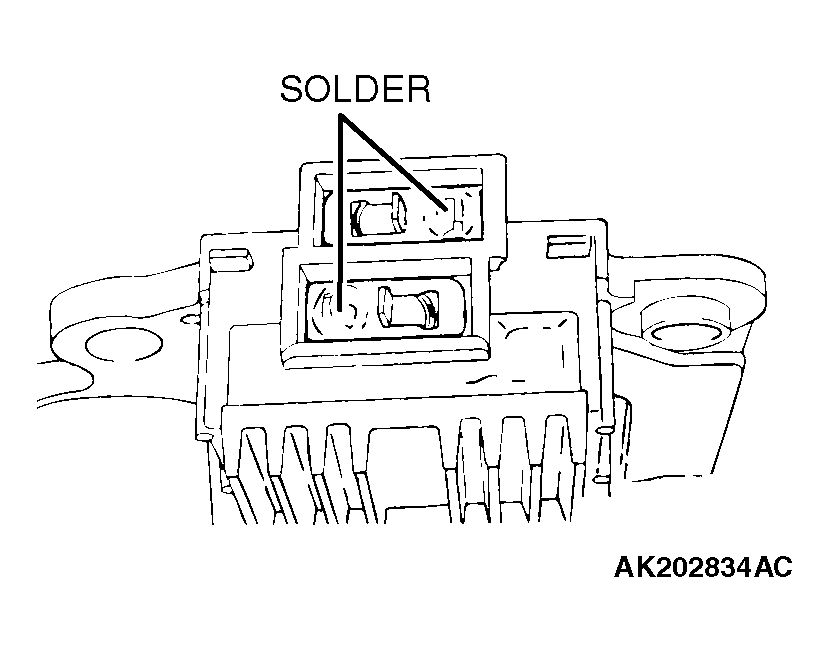

    Fig 2: Identifying Soldering
    G04296098Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
