Special Tools

SPECIAL TOOLS

TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION
MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III sub assembly Vehicle communication interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Daimler Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.	SWS communication line check (ECU check and service data) CAUTION: If you connect M.U.T.-III main harness A to a vehicle without CAN communication system to use the M.U.T.-III, a pulse signal may interfere with the simulated vehicle speed lines, thus causing the M.U.T.-III inoperative. Therefore, use the M.U.T.-III main harness B (MB991911) instead.

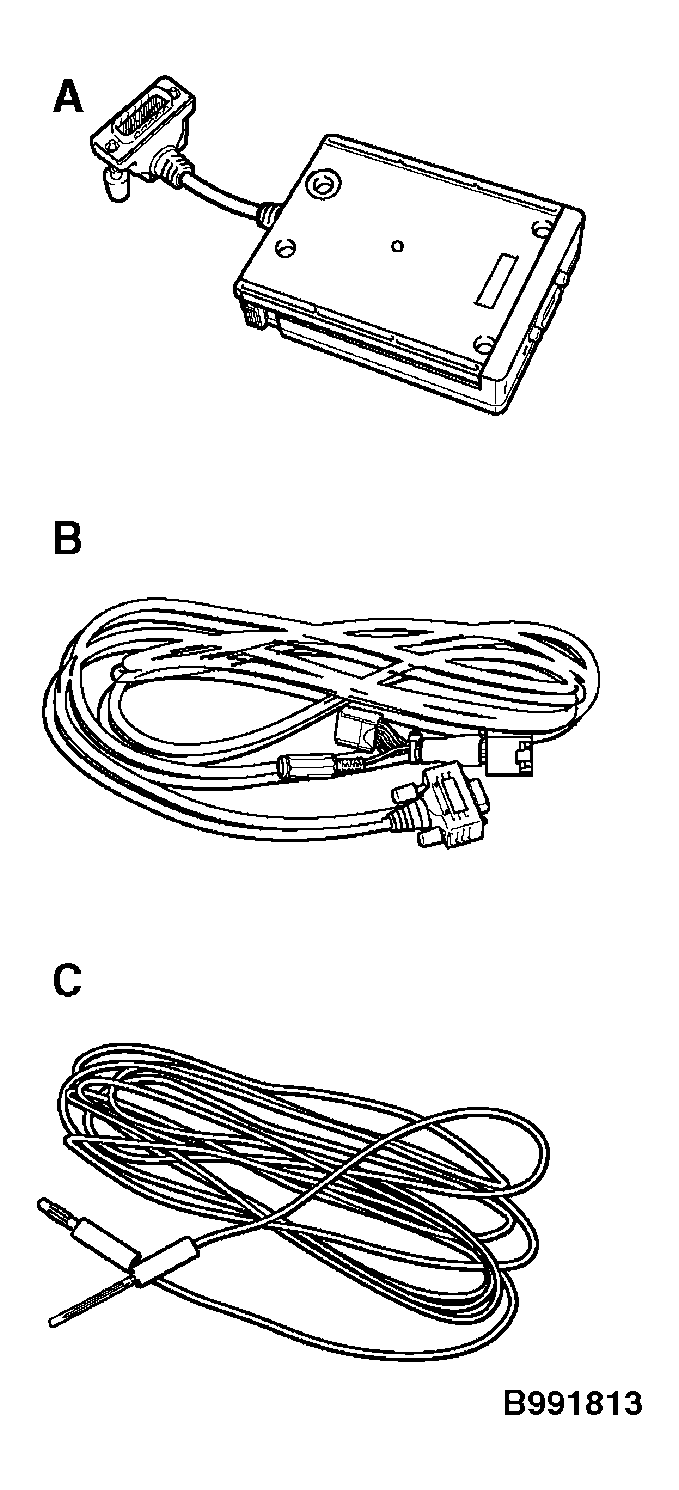

MB991813 MB991806 MB991812 MB991822 SWS monitor kit SWS monitor cartridge SWS monitor harness (for column-ECU) Probe harness	-	SWS communication line check (ECU check and service data)

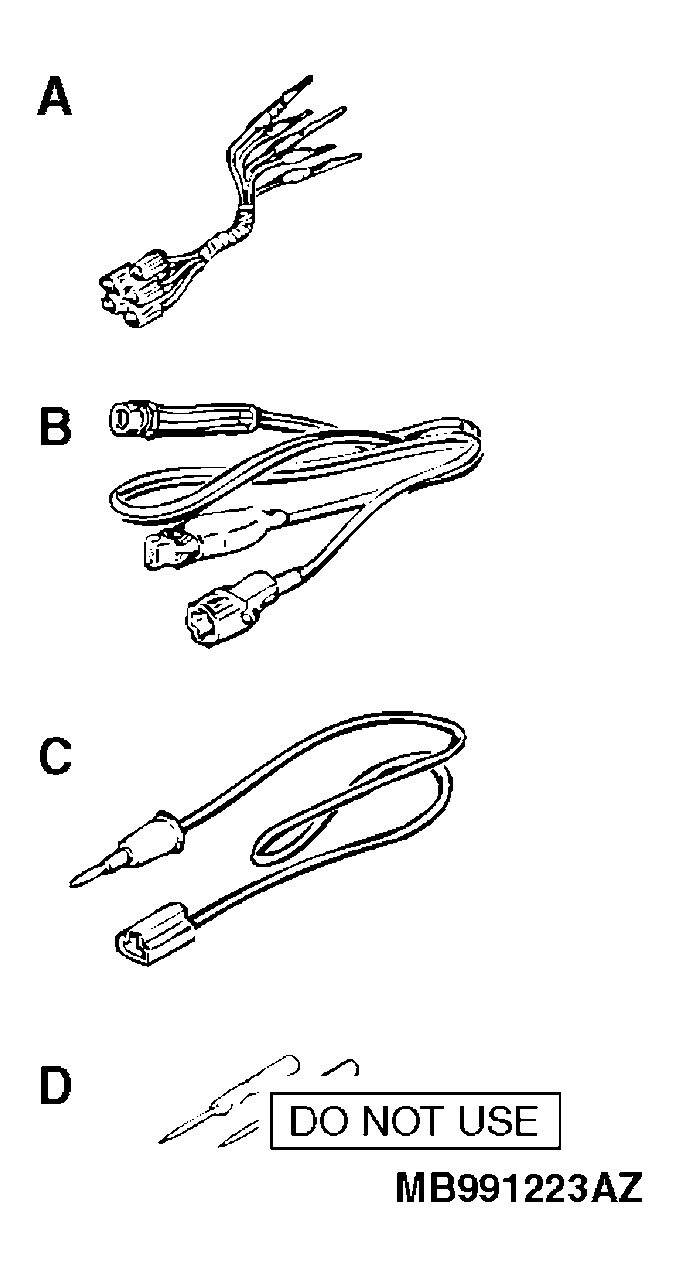

MB991223 MB991219 MB991220 MB991221 MB991222 Harness set Test harness LED harness LED harness adaptor Probe	General service tools	Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector. Connector pin contact pressure inspection Power circuit inspection Power circuit inspection Commercial tester connection
MB992006 Extra fine probe	General service tool	Making voltage and resistance measurement during troubleshooting
